Installation








1GR-FE IGNITION: IGNITION COIL AND SPARK PLUG: INSTALLATION

INSTALLATION

1. INSTALL SPARK PLUG
(a) Using a 16 mm plug wrench, install the 6 spark plugs.
Torque: 20 Nm (204 kgf-cm, 15 ft-lbf)
2. INSTALL IGNITION COIL ASSEMBLY

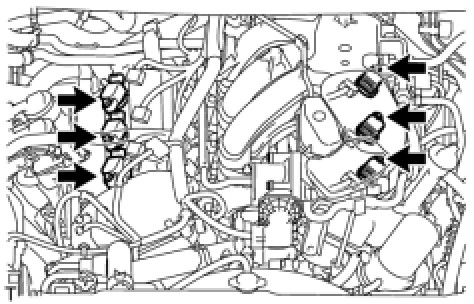

(a) Install the 6 ignition coils with the 6 bolts.
Torque: 9.0 Nm (92 kgf-cm, 80 in-lbf)
(b) Connect the 6 ignition coil connectors.
3. INSTALL AIR CLEANER ASSEMBLY WITH ELEMENT Installation
4. INSTALL NO. 2 AIR CLEANER HOSE Installation
5. INSTALL V-BANK COVER Installation
