Oil Pan, Engine

OIL PAN SUB-ASSEMBLY

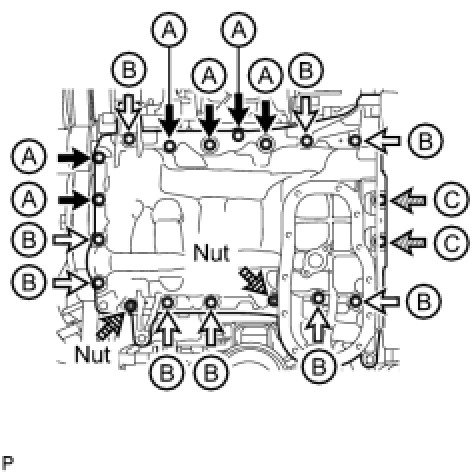

Install the oil pan with the 17 bolts (A, B and C) and 2 nuts. Tighten the bolts and nuts uniformly in several steps.
for bolt A, B and nut - Torque 21 Nm (214 kgf-cm, 15 ft-lbf)
for bolt C - Torque 10 Nm (102 kgf-cm, 7 ft-lbf)

Bolt length:





NO. 2 OIL PAN SUB-ASSEMBLY

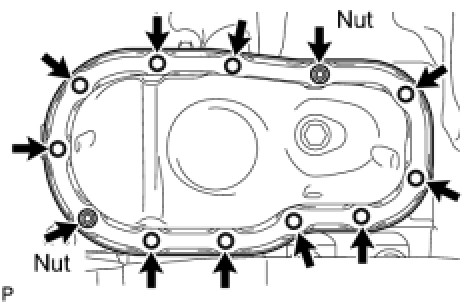

Install the No. 2 oil pan with the 10 bolts and 2 nuts. Tighten the bolts and nuts uniformly in several steps.
for bolt - Torque 9.0 Nm (92 kgf-cm, 81 in-lbf)
for nut - Torque 10 Nm (102 kgf-cm, 7 ft-lbf)
