Service Data
SERVICE SPECIFICATIONS: 1GR-FE ENGINE MECHANICAL: SERVICE DATA
SERVICE DATA
Compression pressure

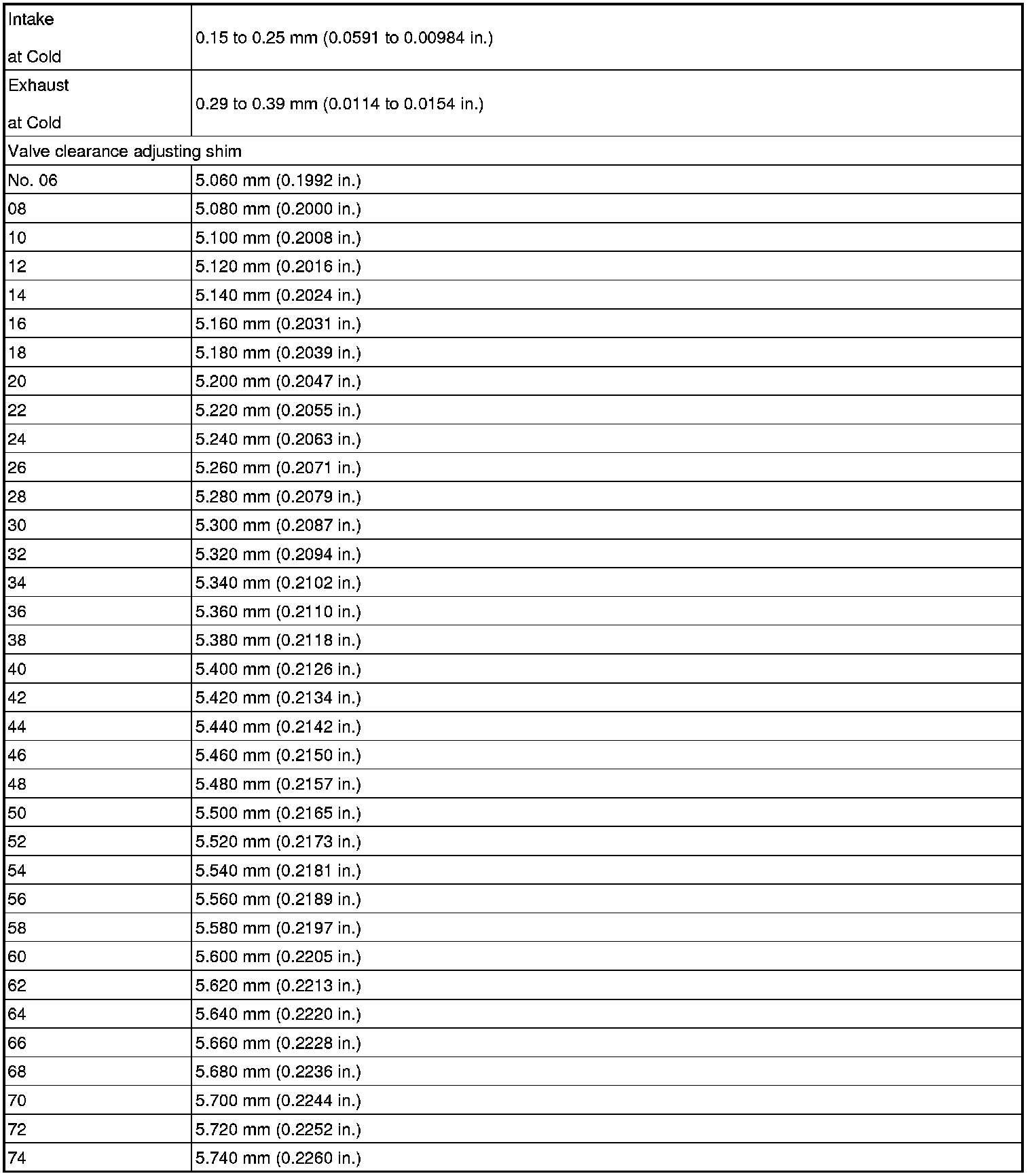

Valve clearance
Ignition timing
Idle speed

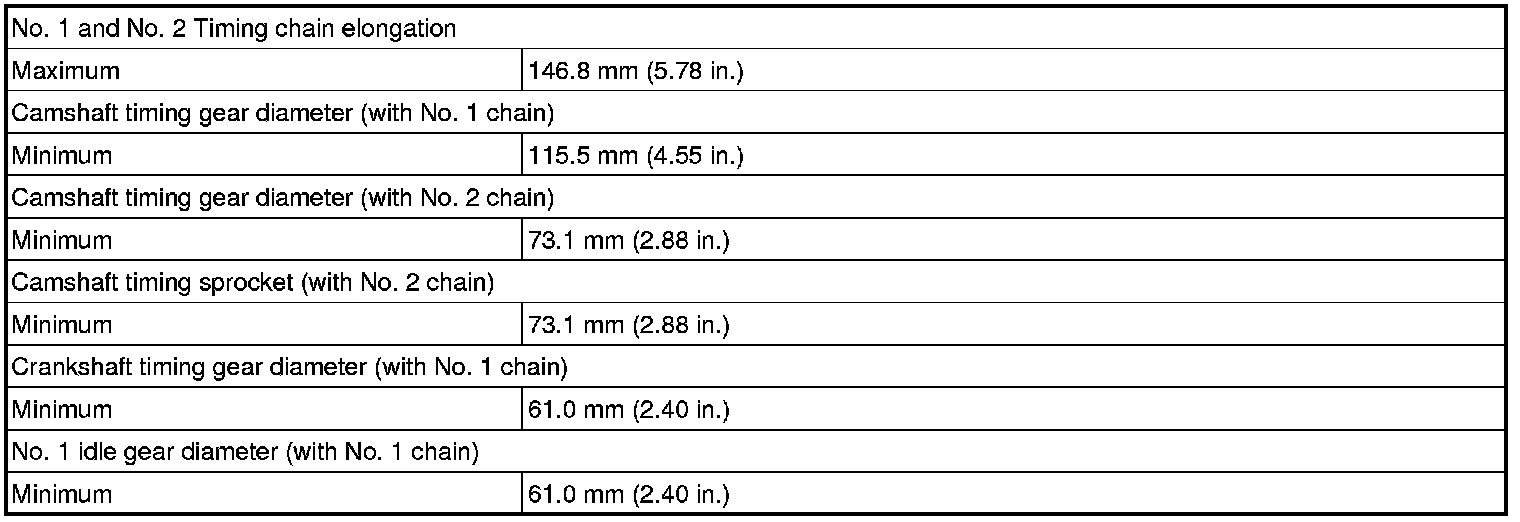

Timing chain
Idle gear shaft oil clearance
Chain tensioner

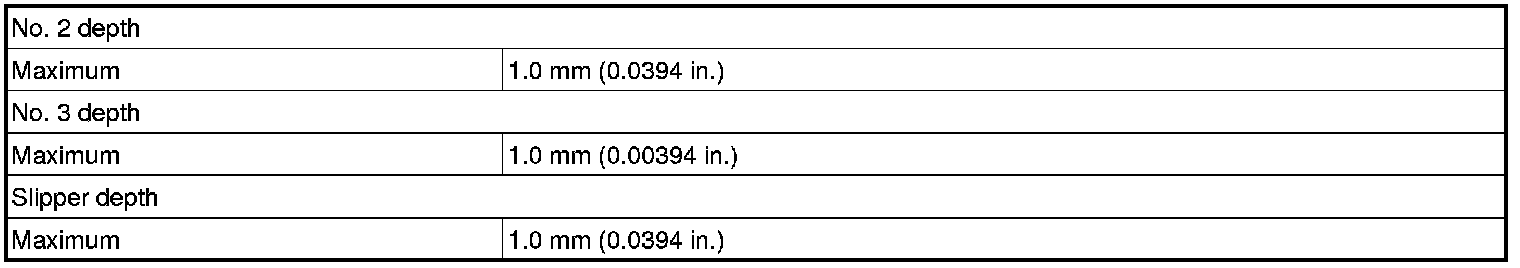

No. 1 and No. 2 chain vibration damper

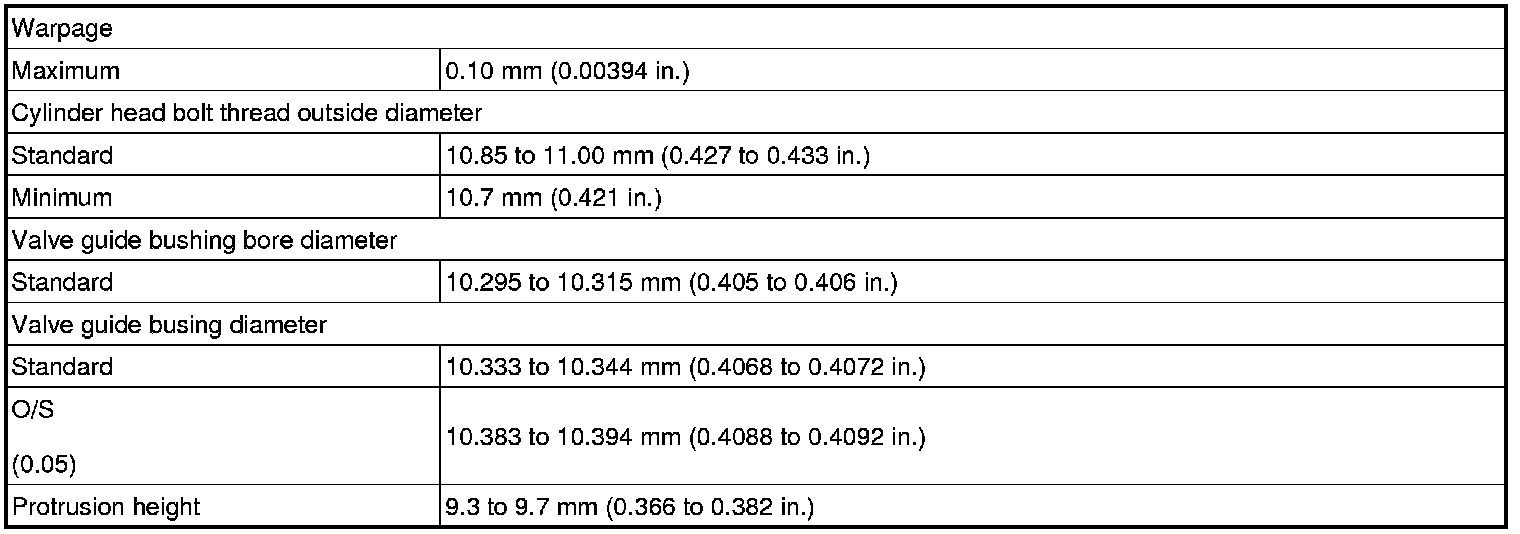

Cylinder head

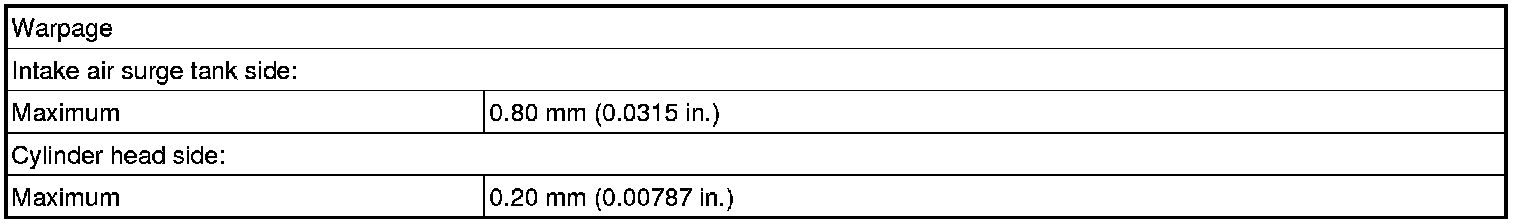

Intake manifold
Exhaust manifold

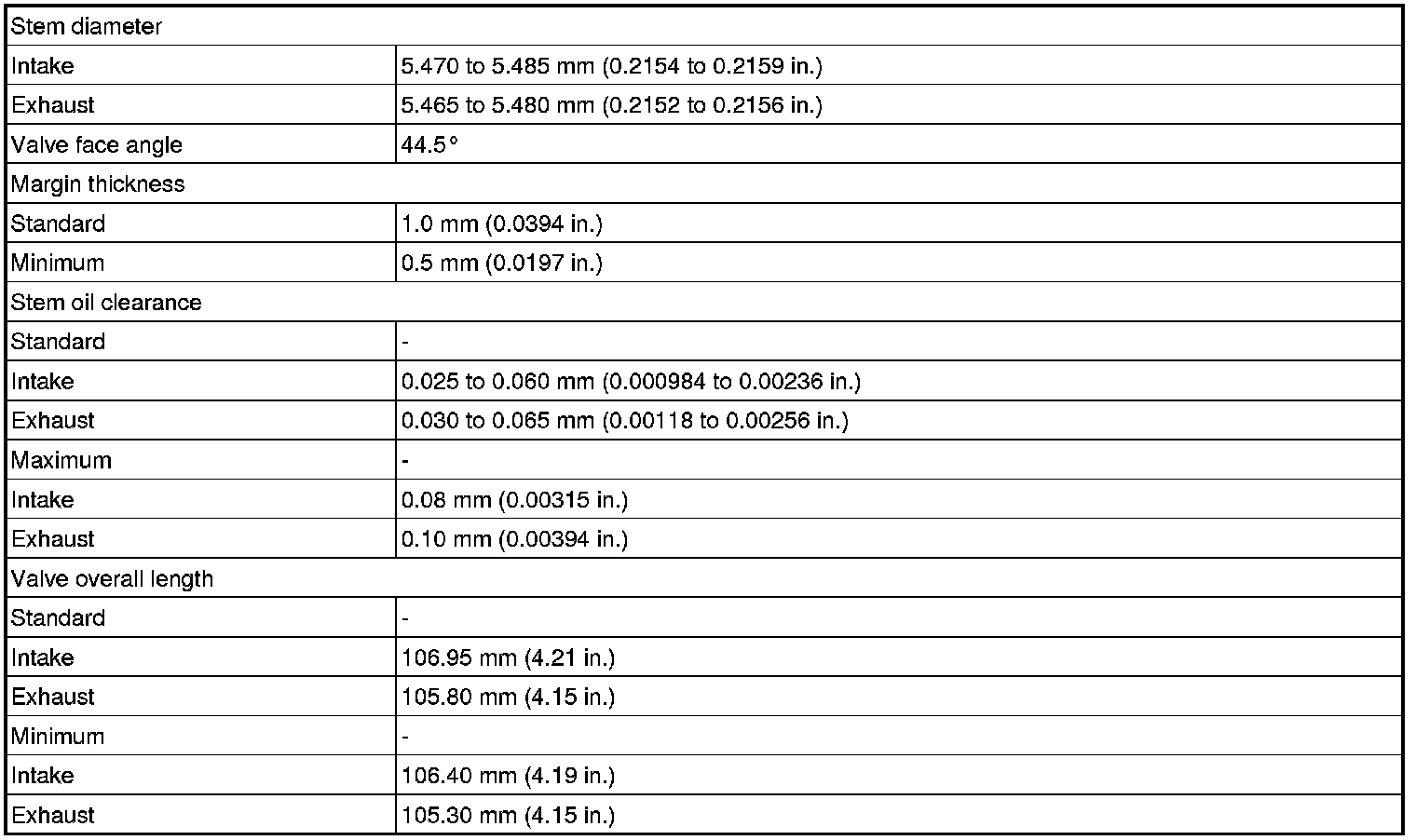

Valve

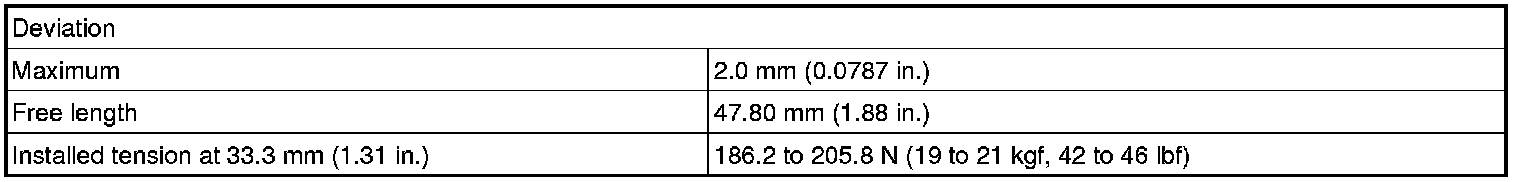

Valve spring
Valve guide bushing

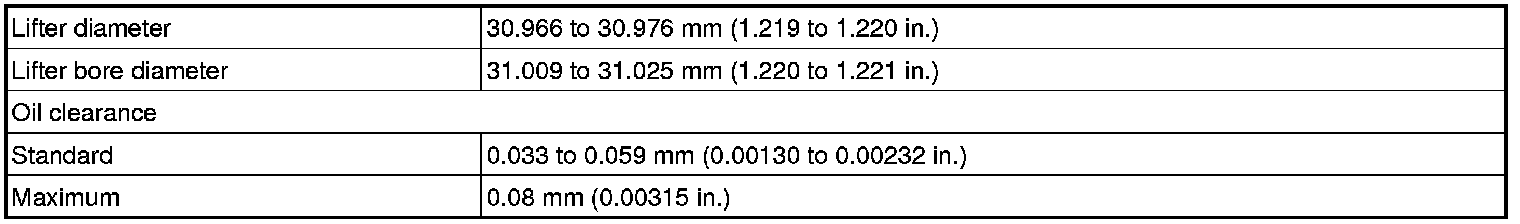

Valve lifter

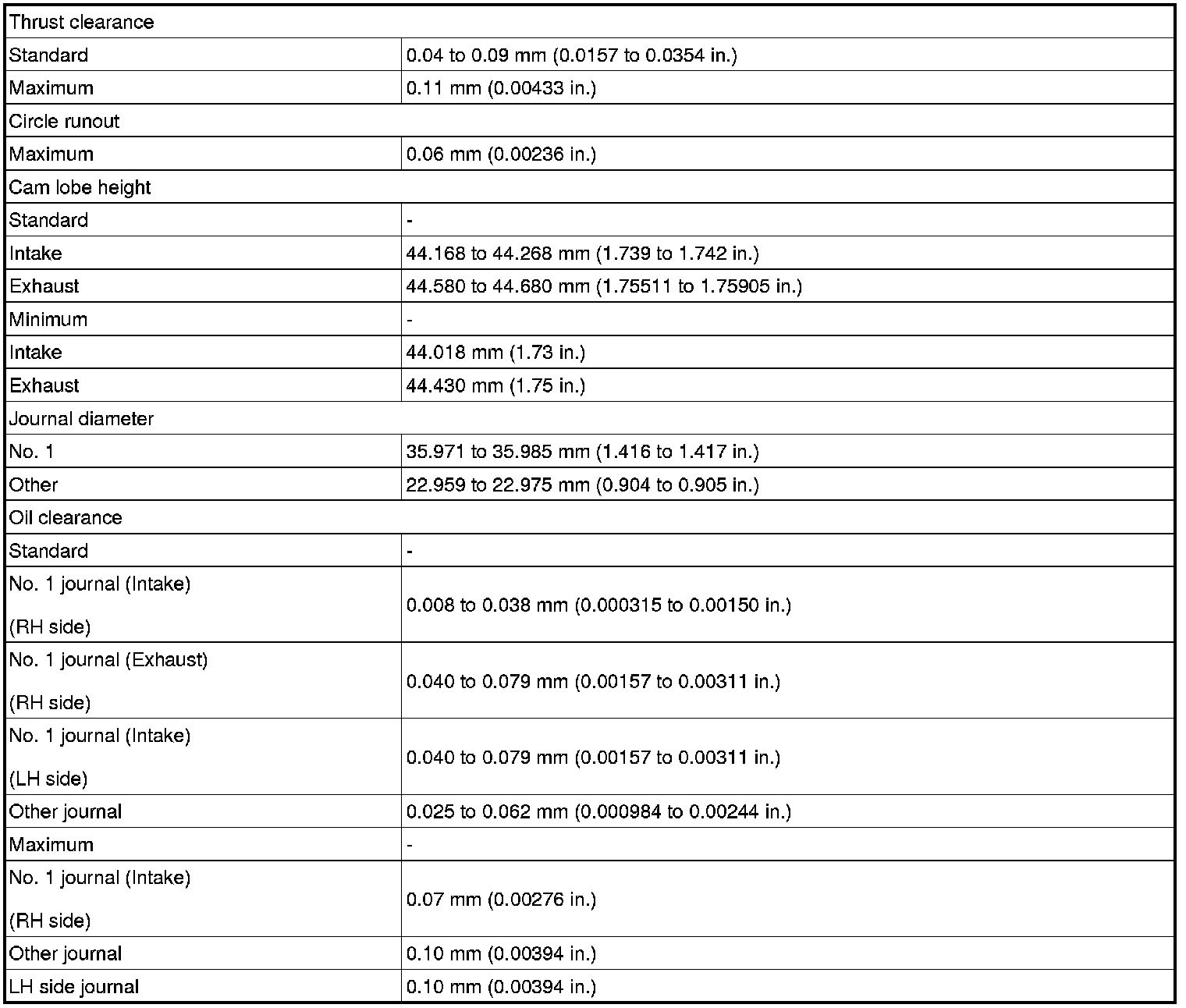

Camshaft
Connecting rod
Crankshaft
Cylinder block

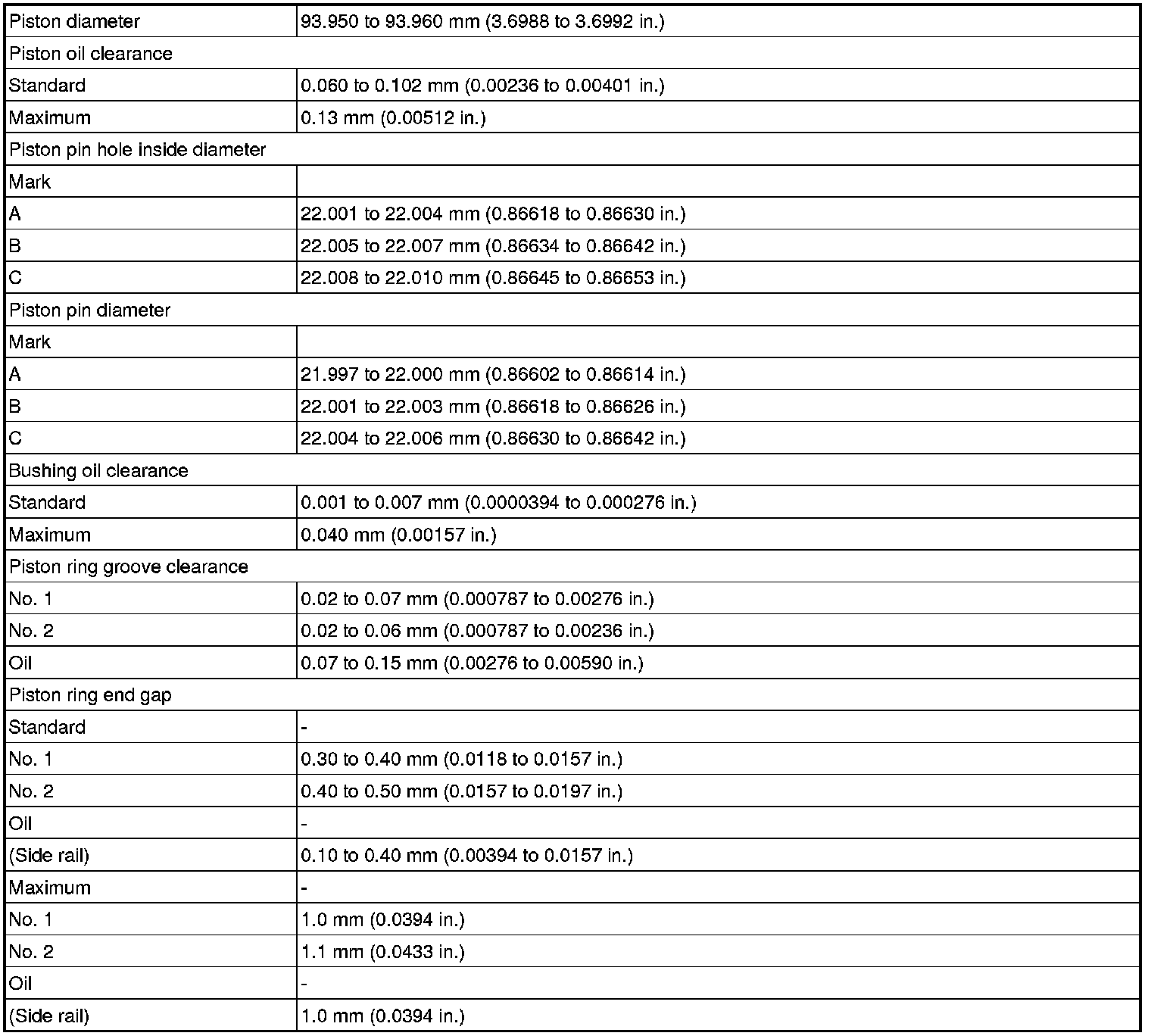

Piston and piston ring
