Engine Control System - SFI System

1AR-FE ENGINE CONTROL: SFI SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART
HINT: Parameters listed in the chart may not be exactly the same as yours depending on the type of instrument or other factors.
If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code. For details of the code, follow the applicable "Diagnostic Trouble Code Test" reference.

SFI System

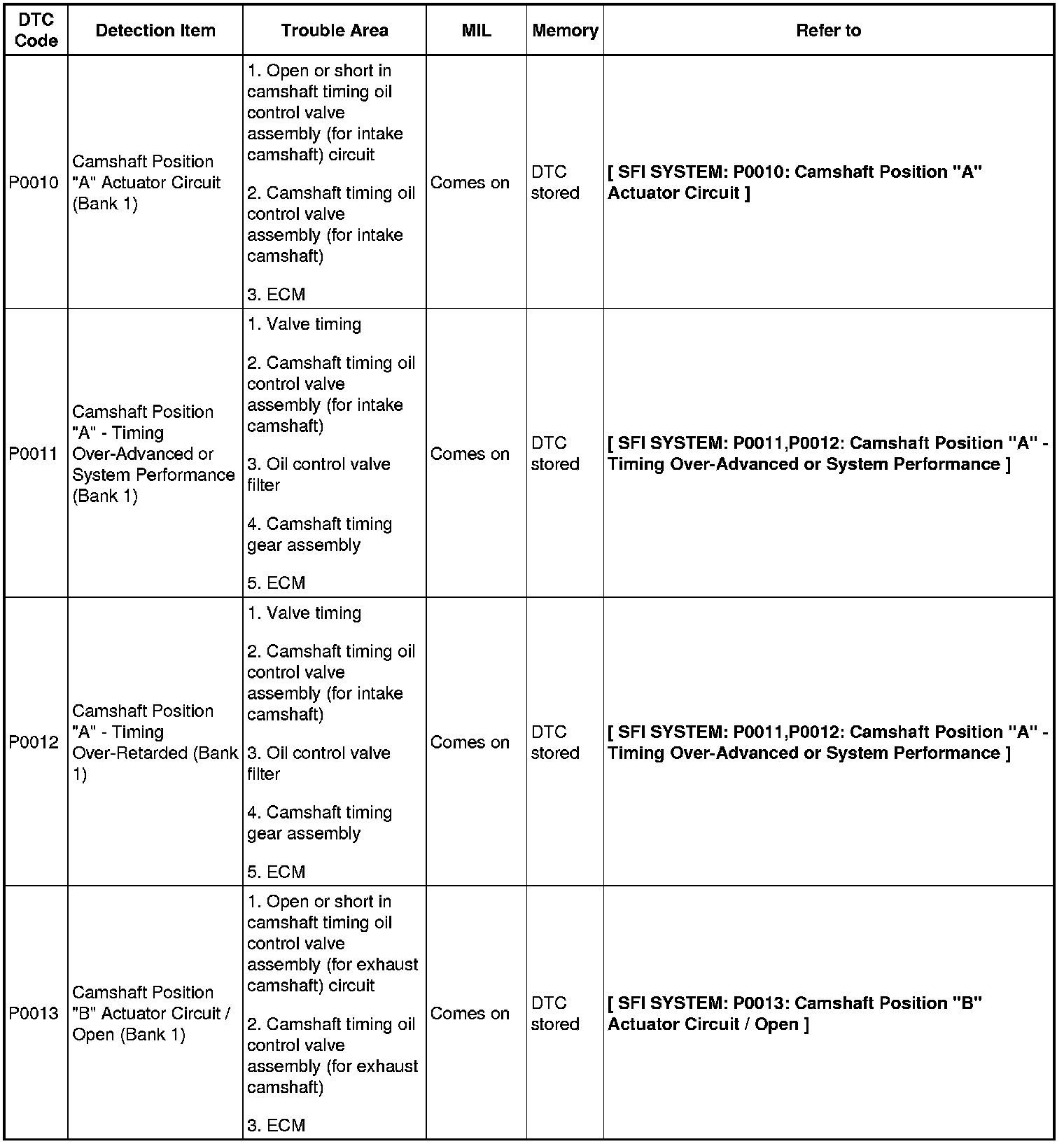

P0010 - P0013:

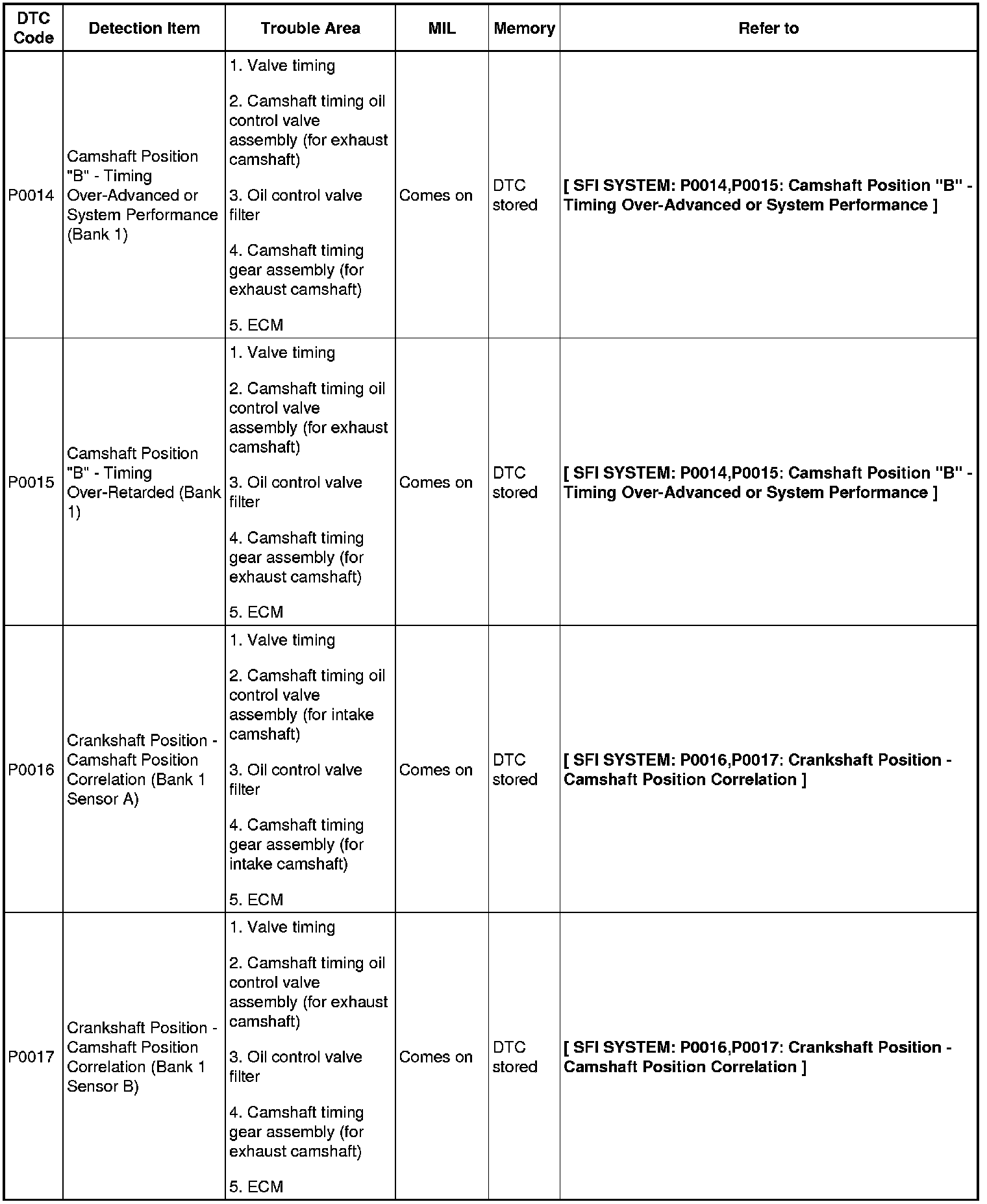

P0014 - P0017:

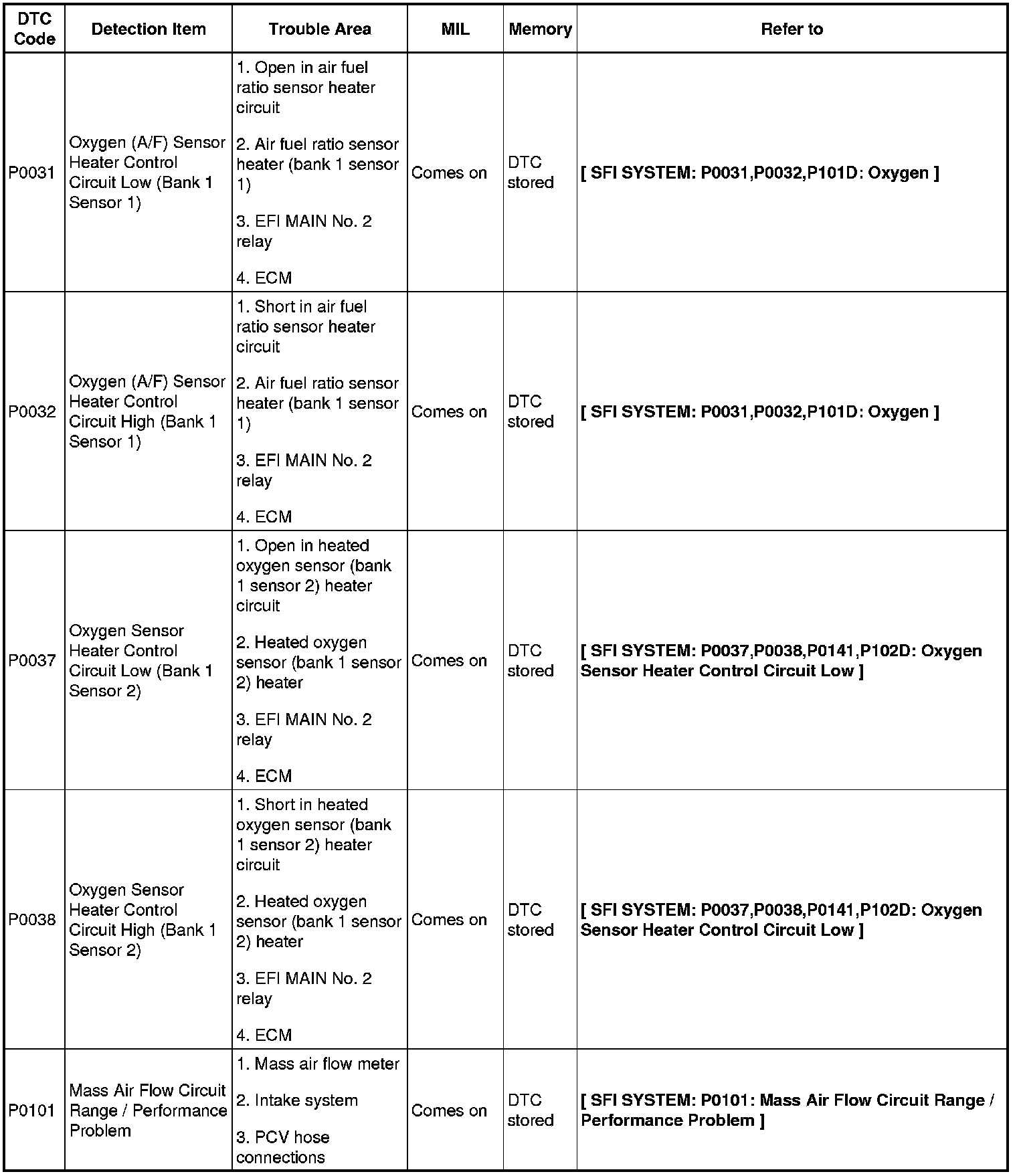

P0031 - P0101:

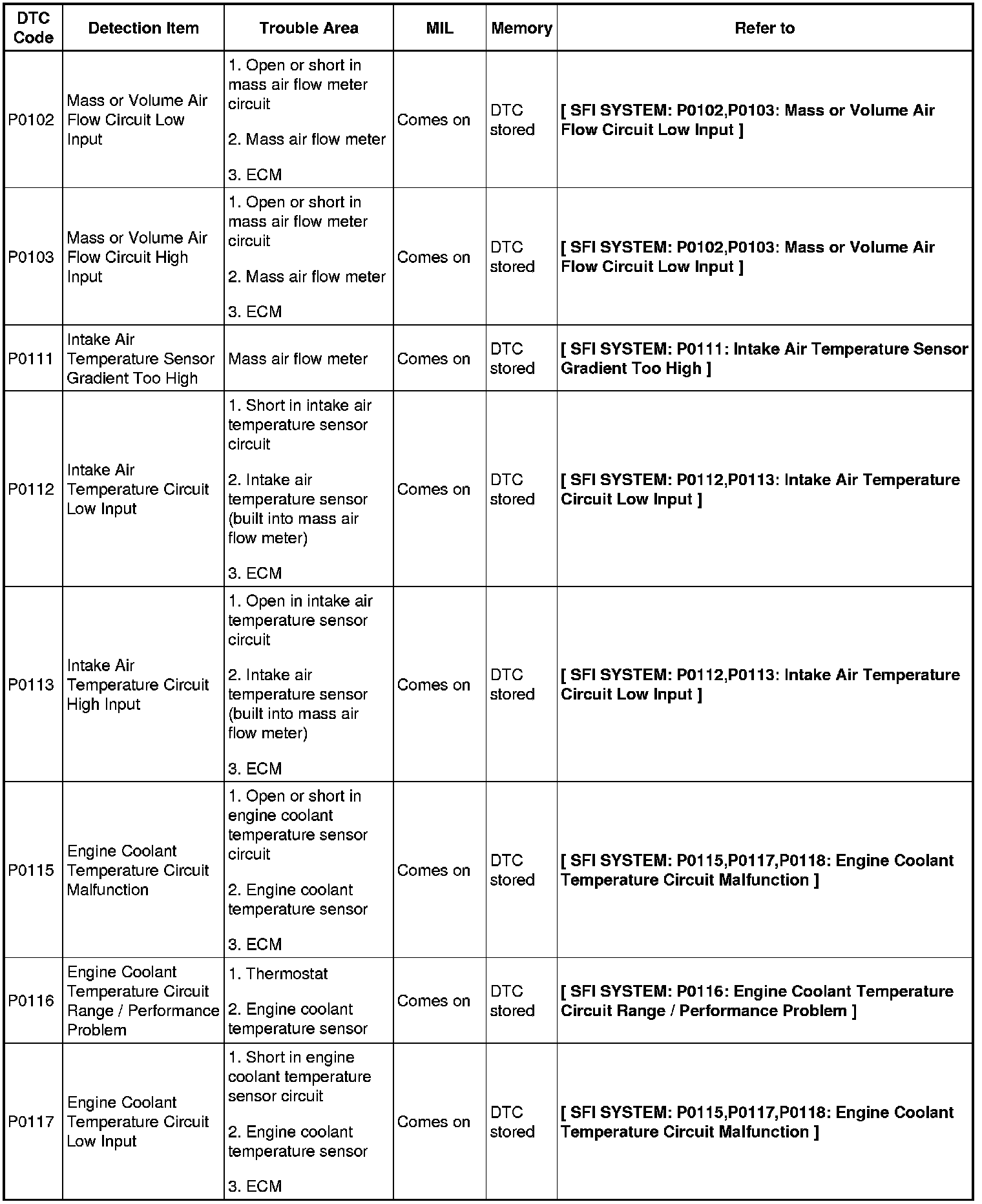

P0102 - P0117:

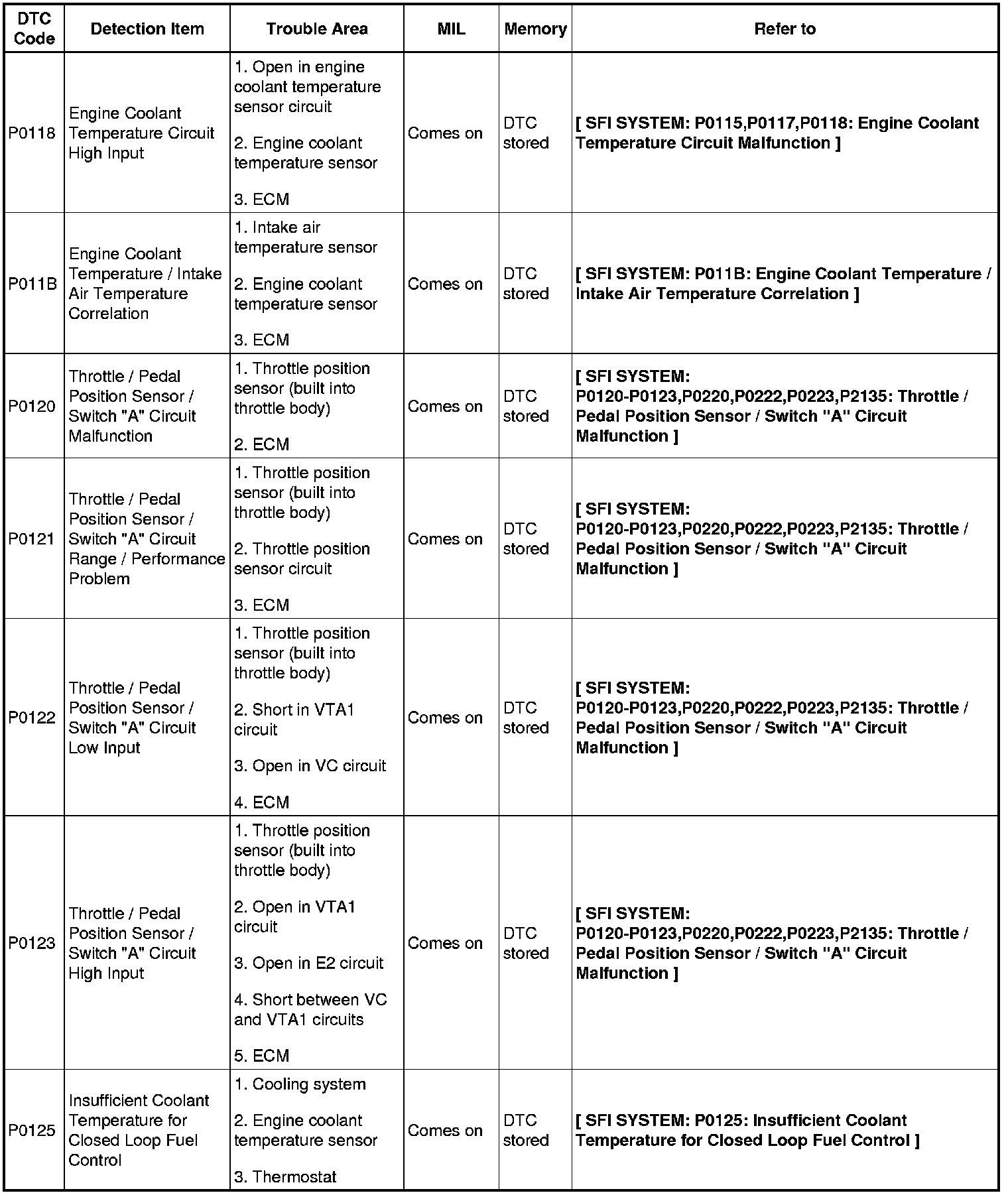

P0118 - P0125:

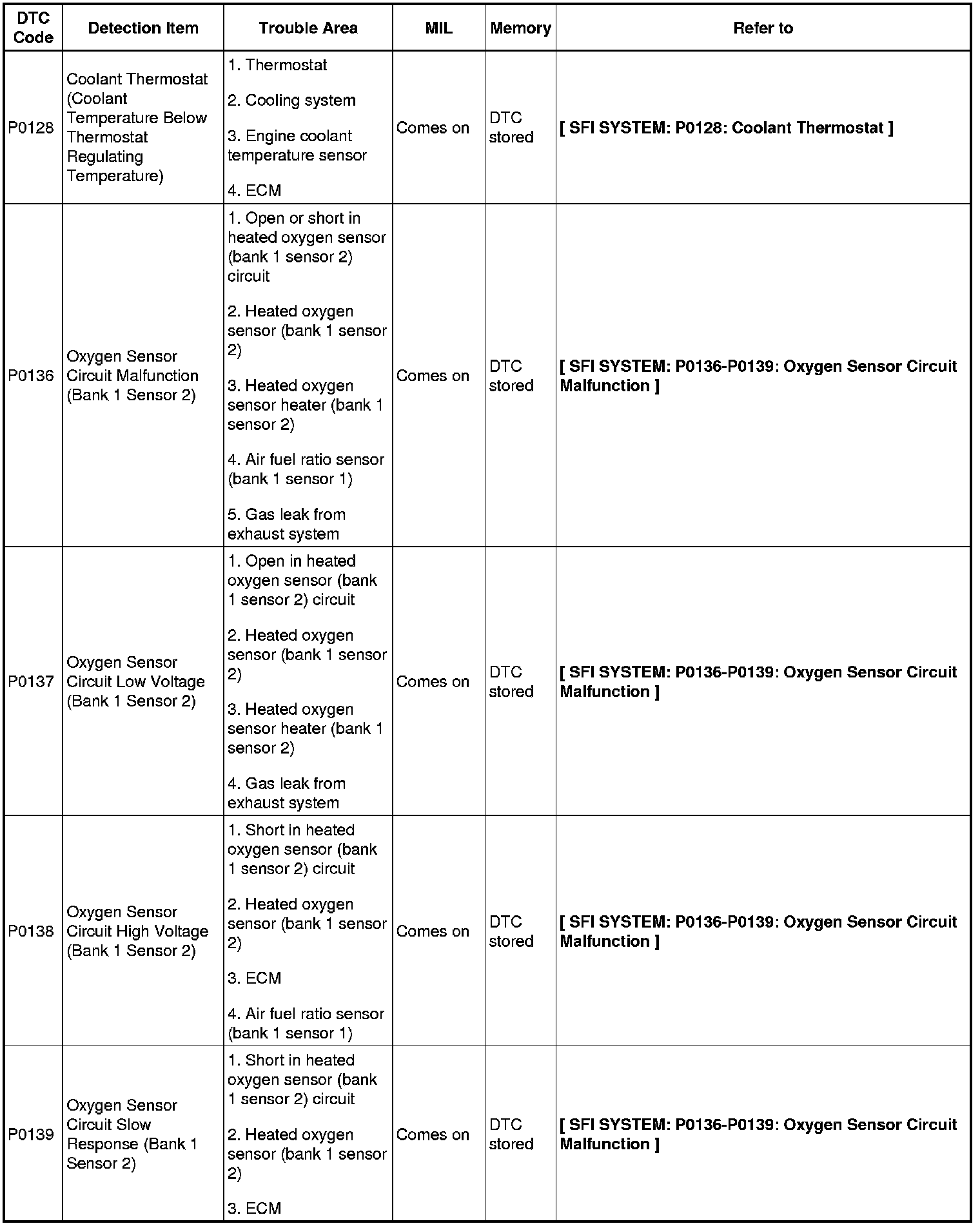

P0128 - P0139:

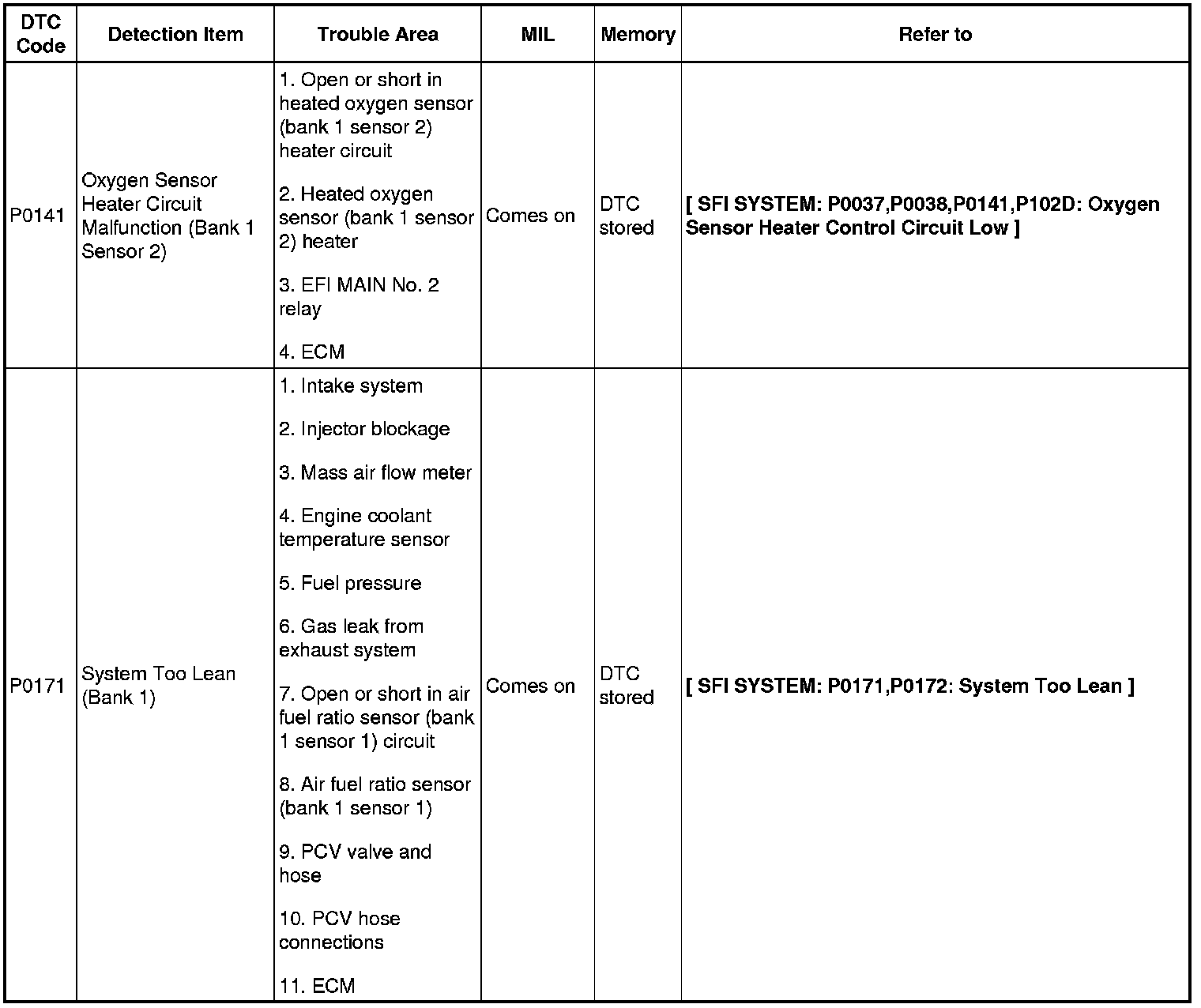

P0141 - P0171:

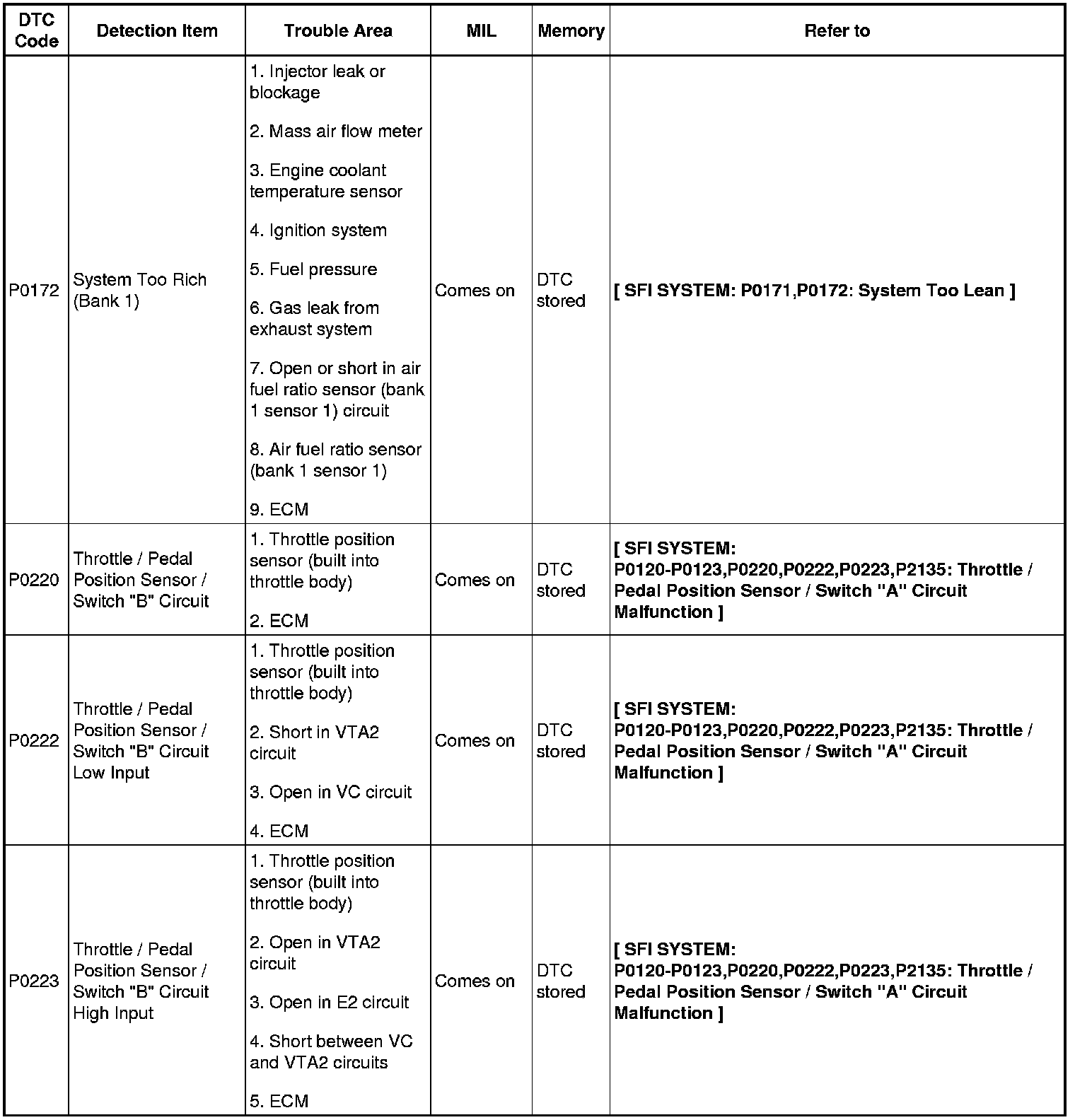

P0172 - P0223:

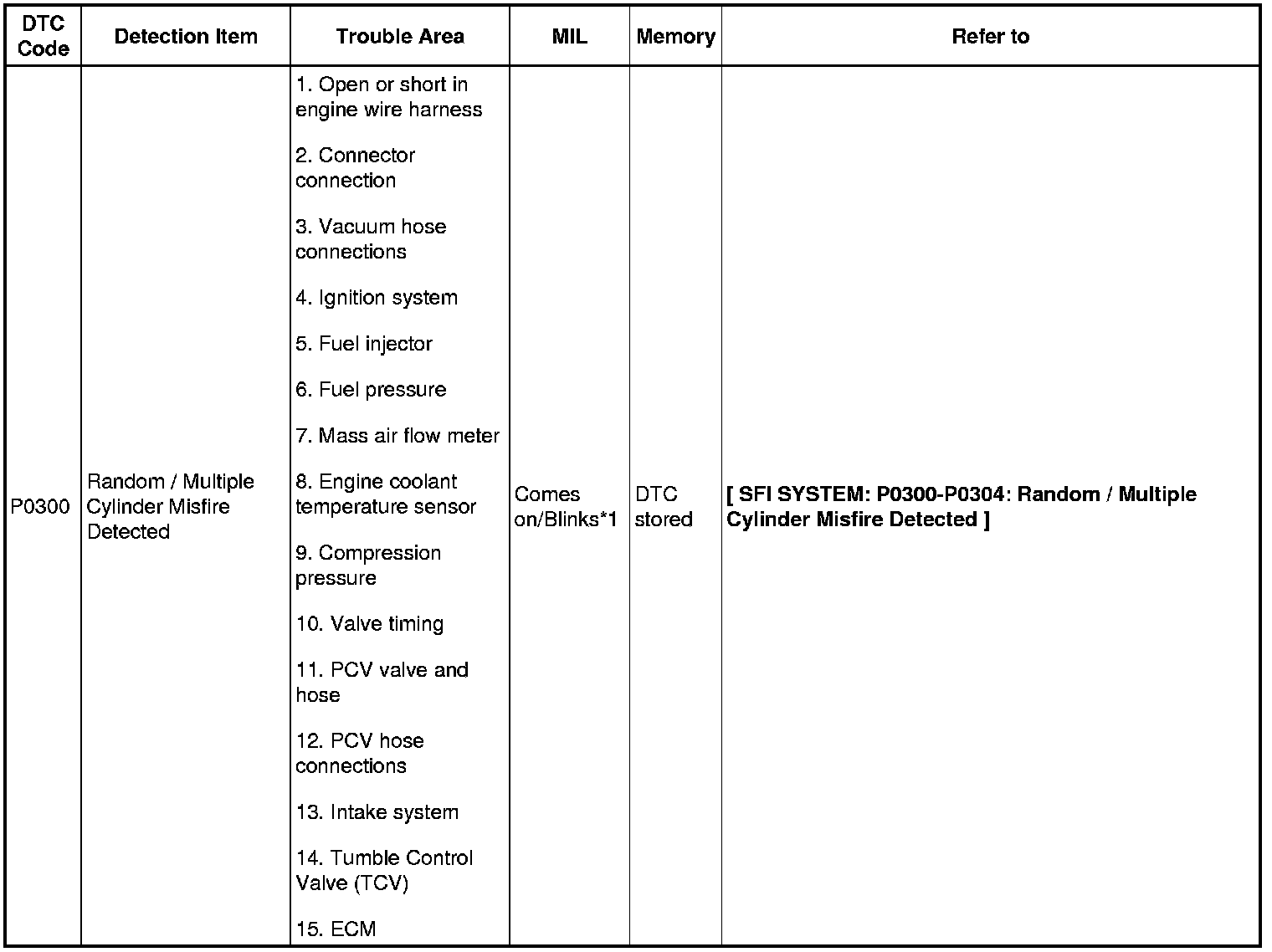

P0300:

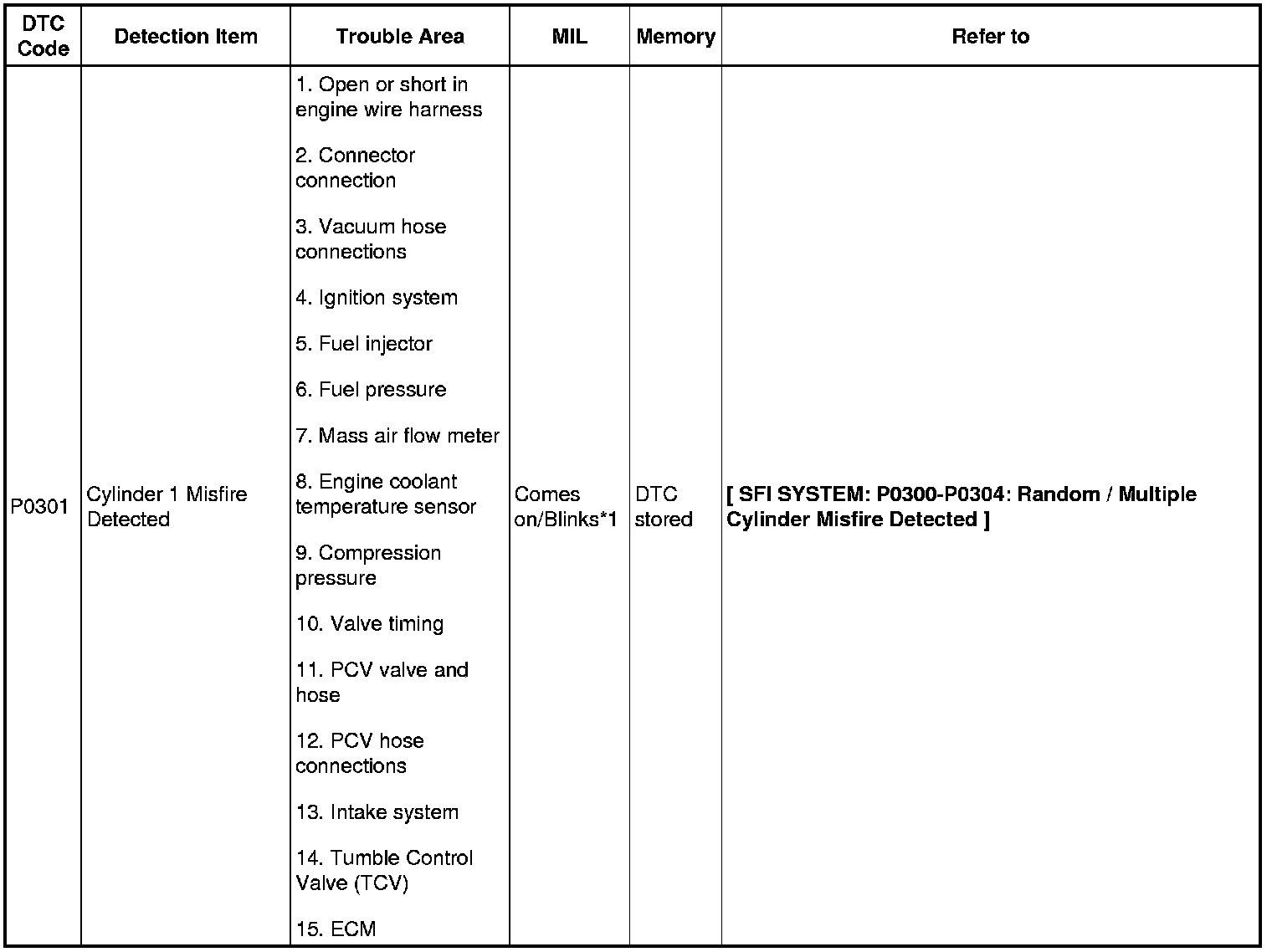

P0301:

P0302:

P0303:

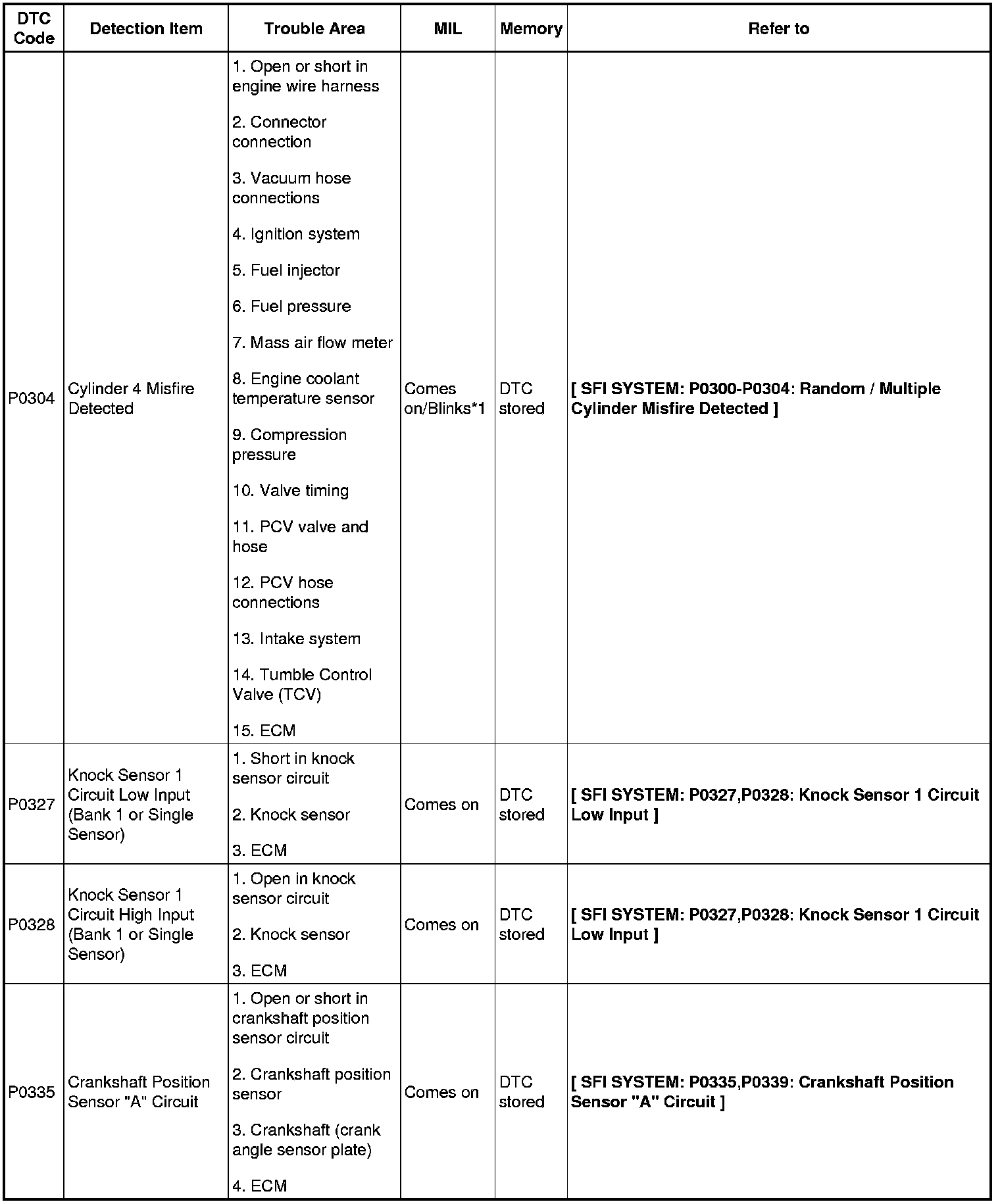

P0304 - P0335:

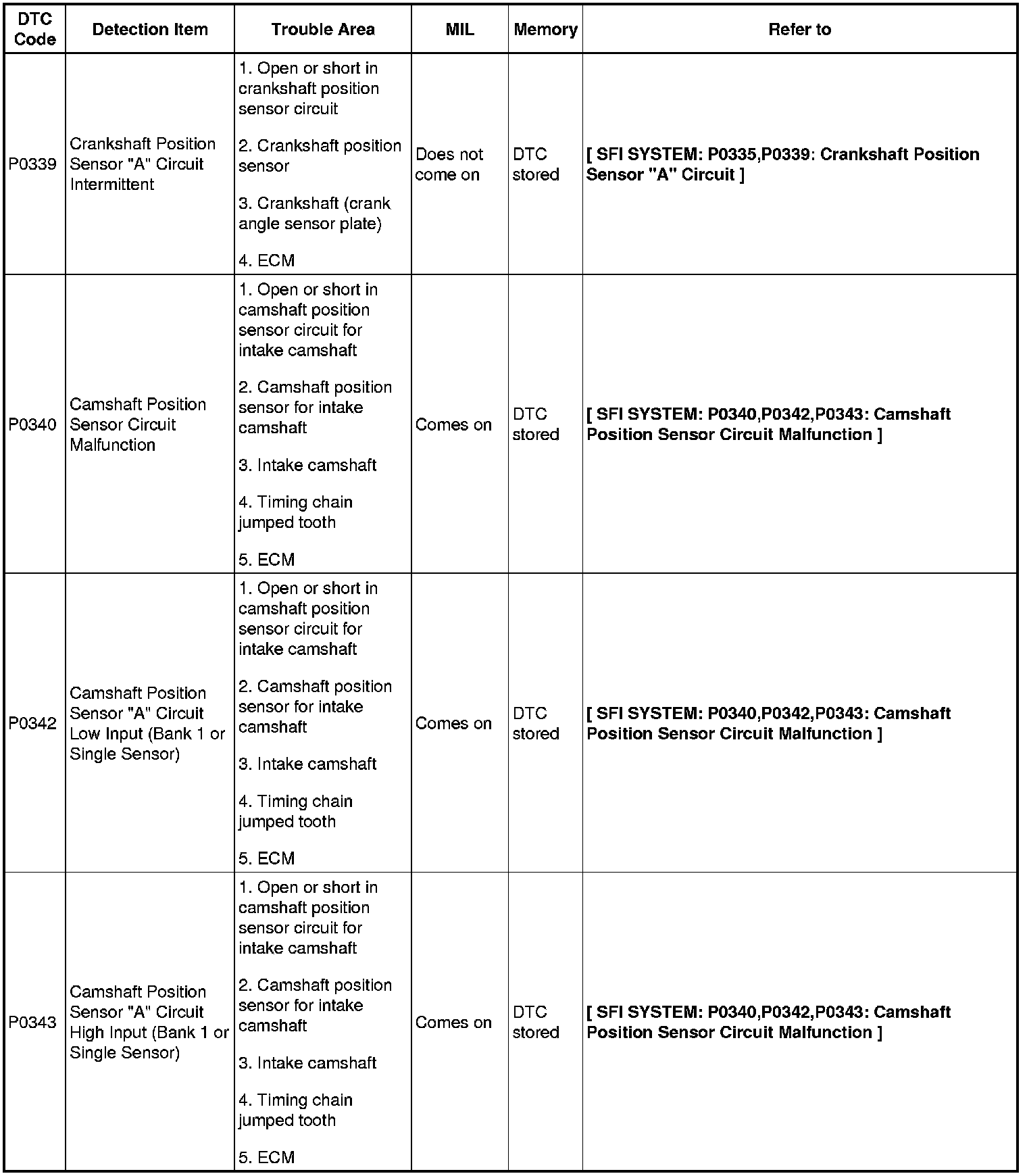

P0339 - P0343:

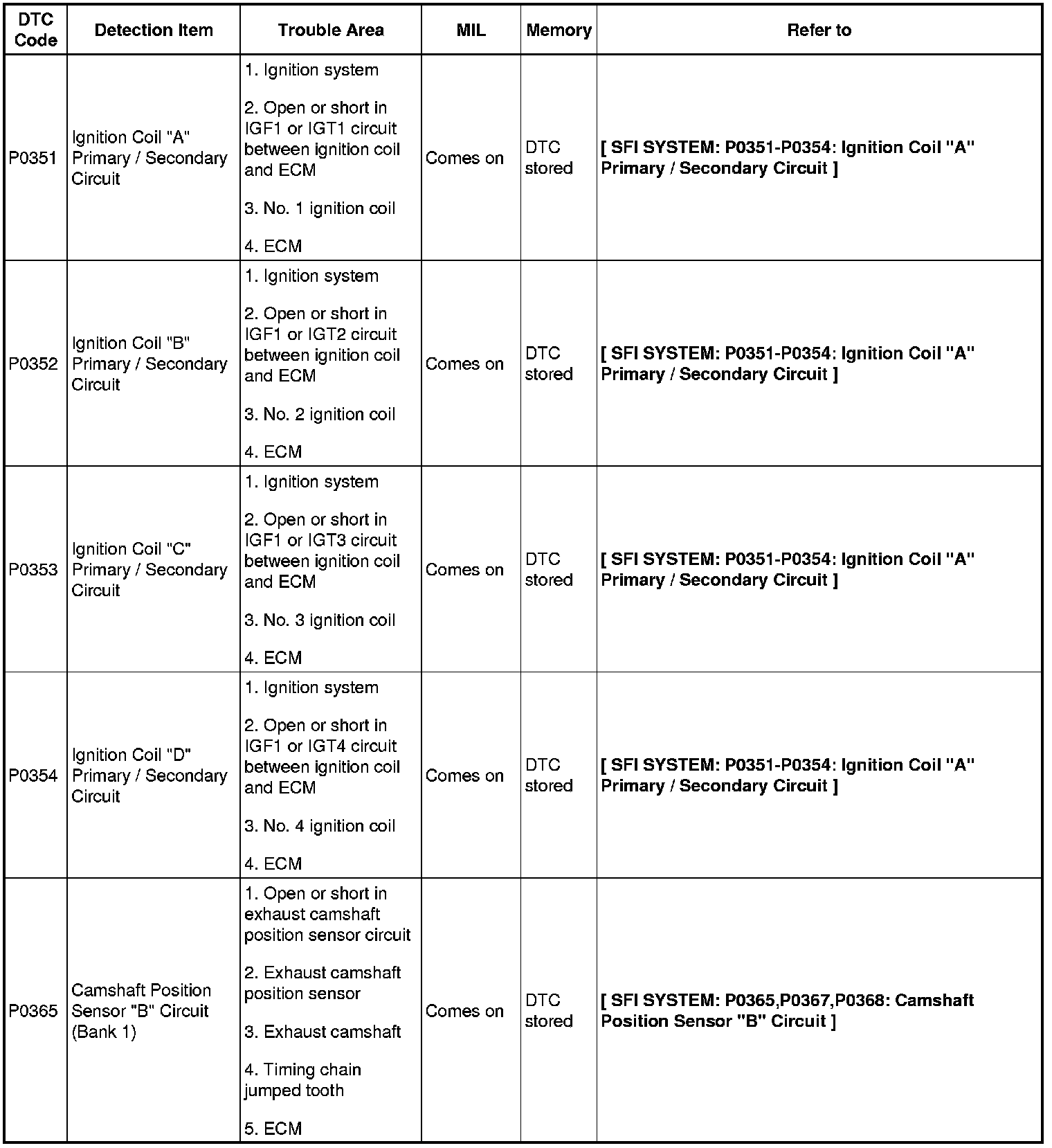

P0351 - P0365:

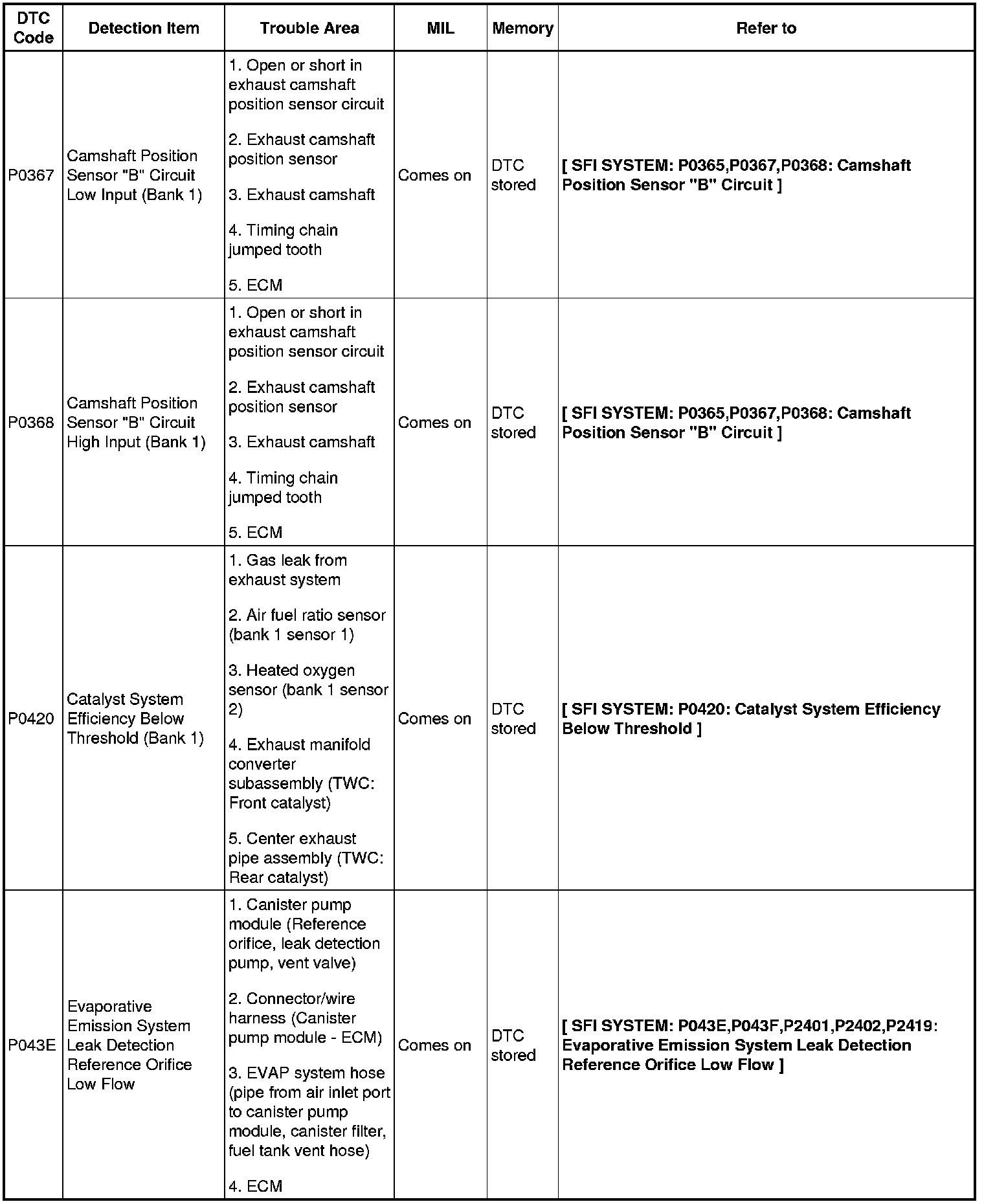

P0367 - P043E:

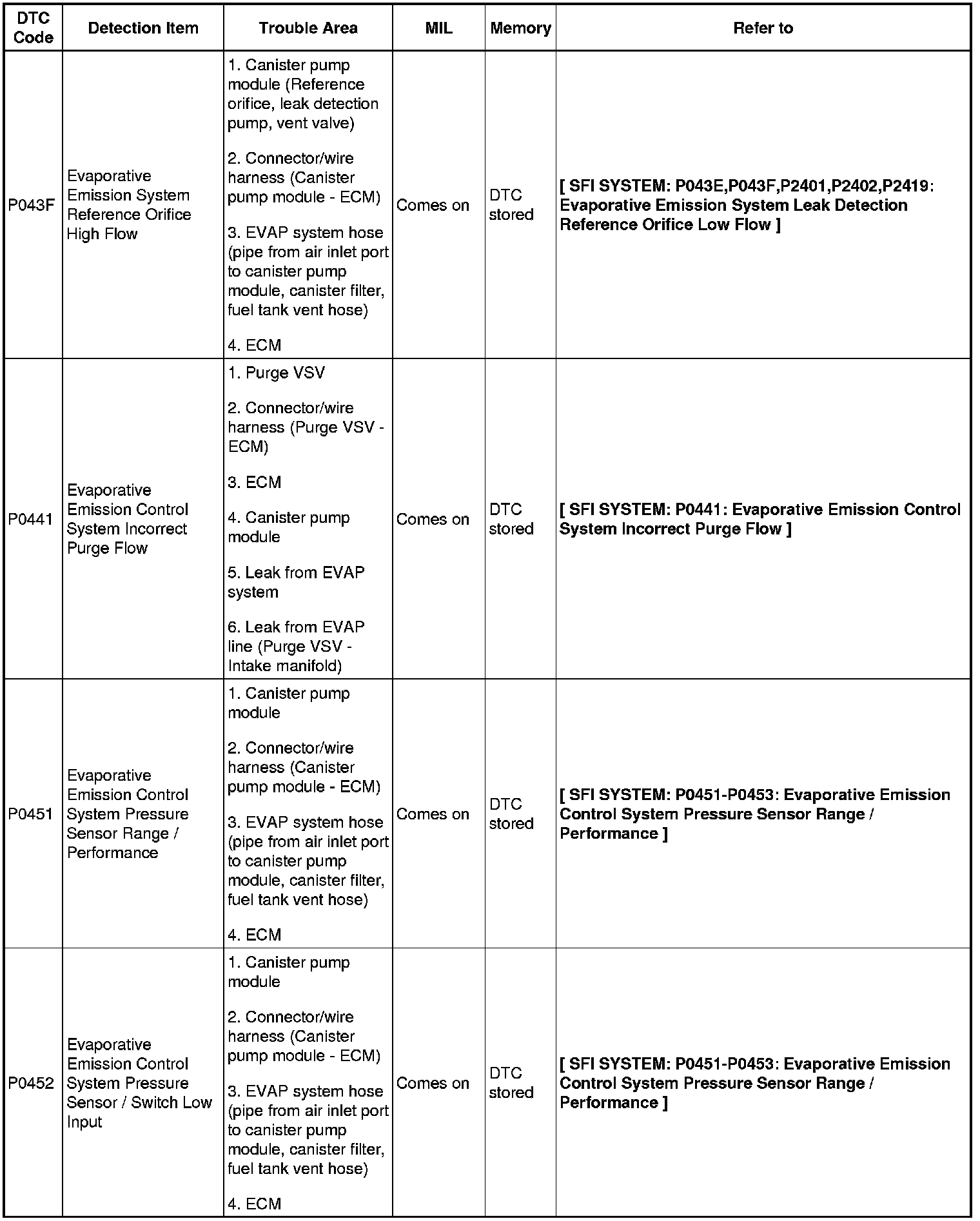

P043F - P0452:

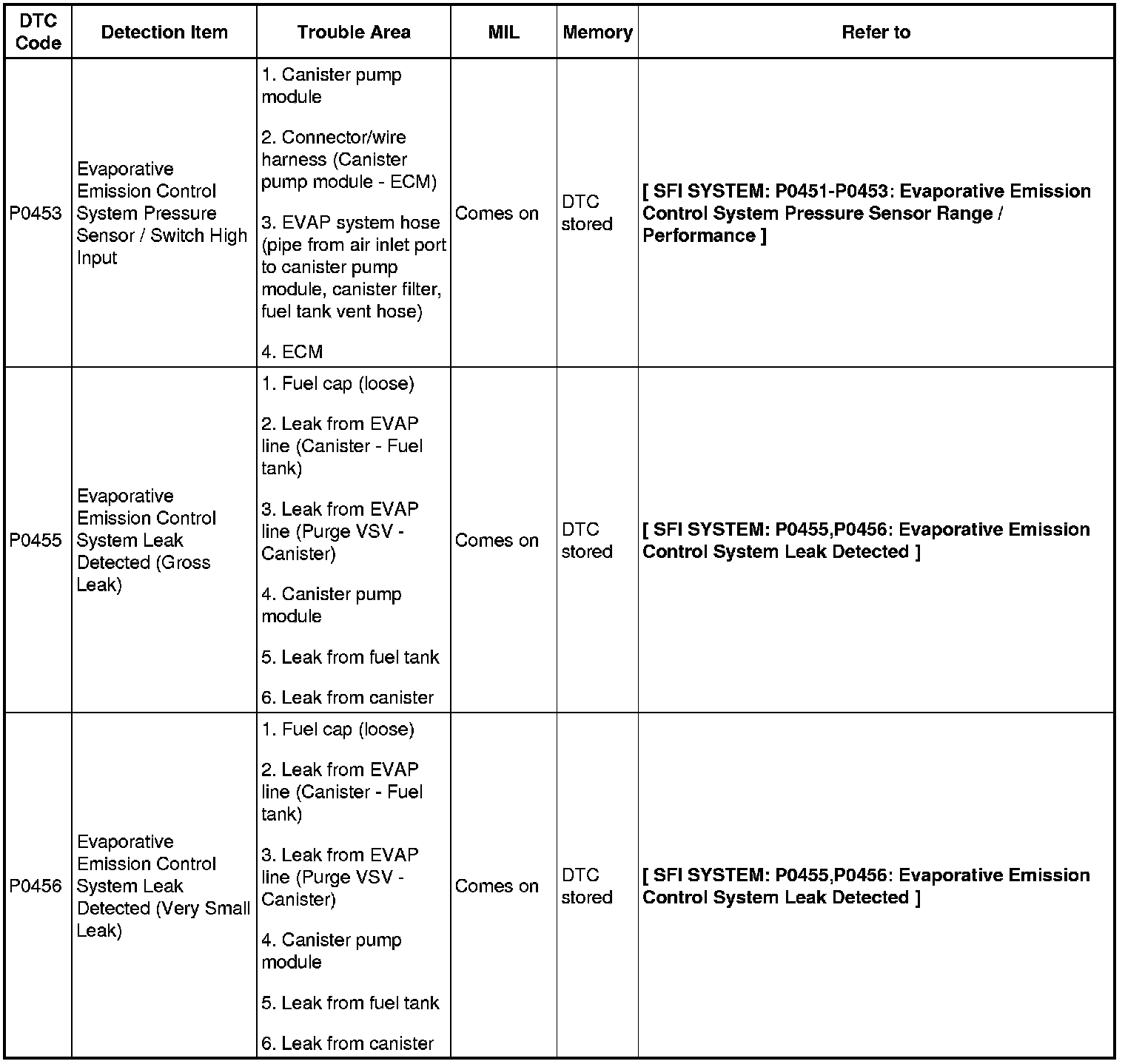

P0453 - P0456:

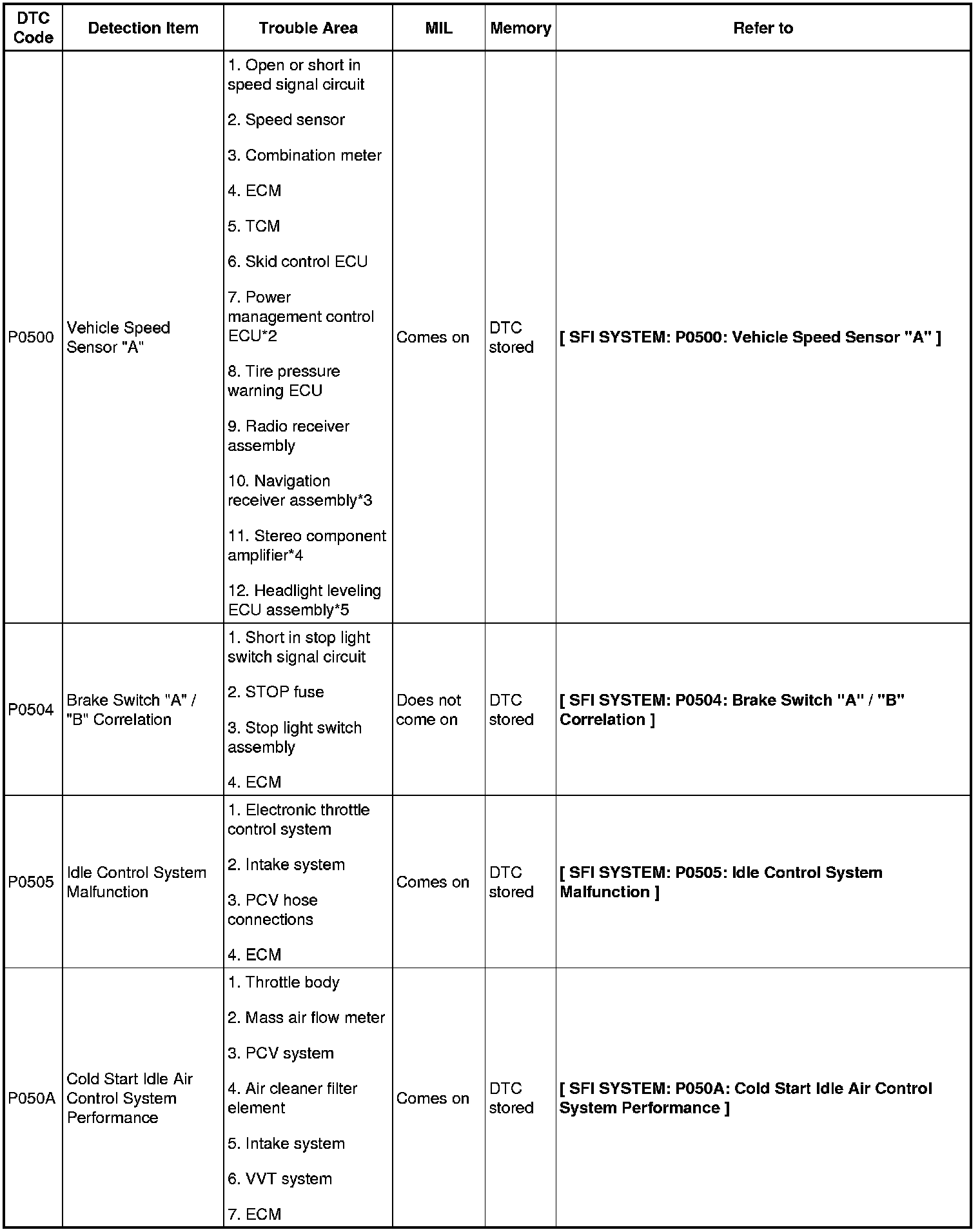

P0500 - P050A:

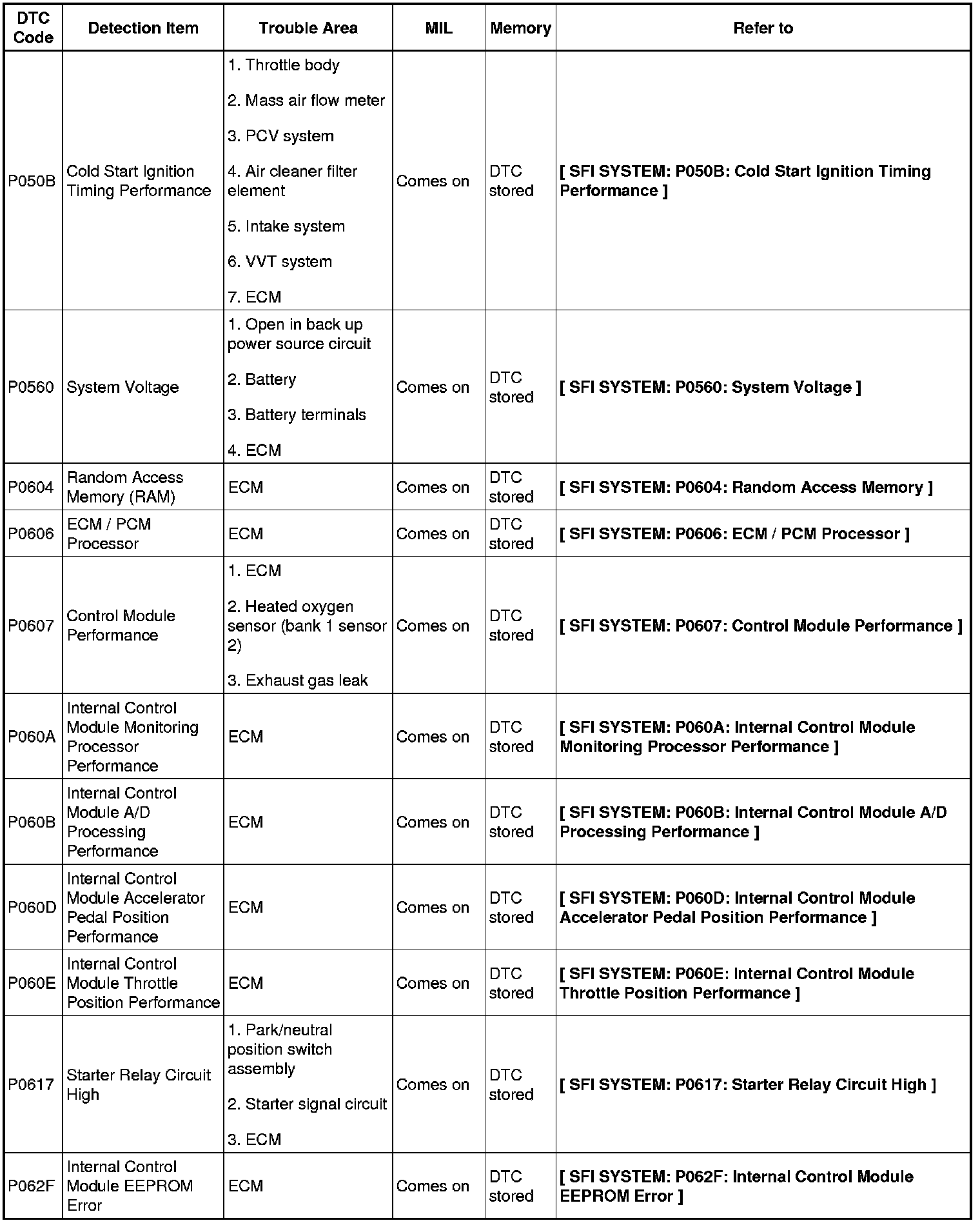

P050B - P062F:

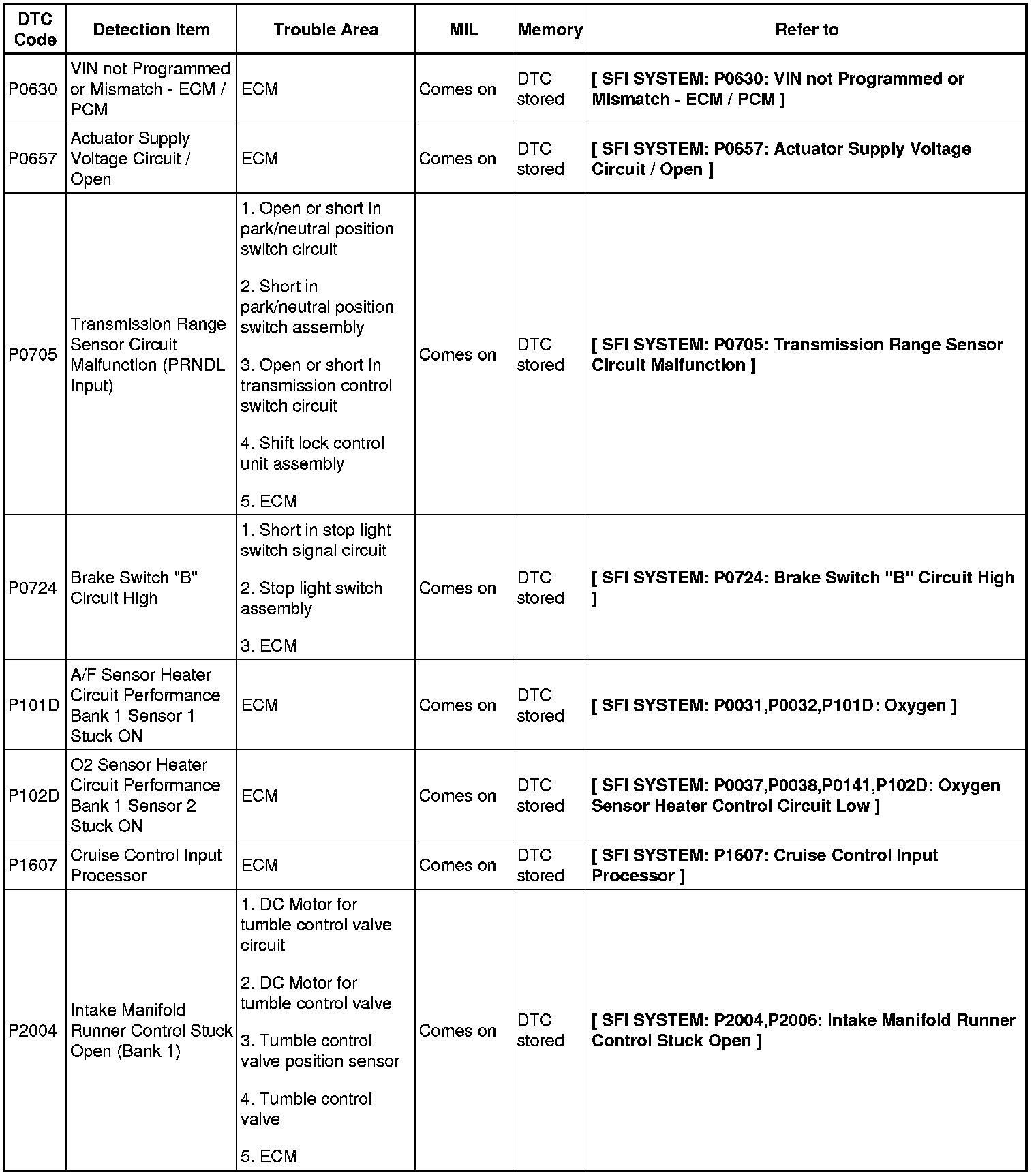

P0630 - P2004:

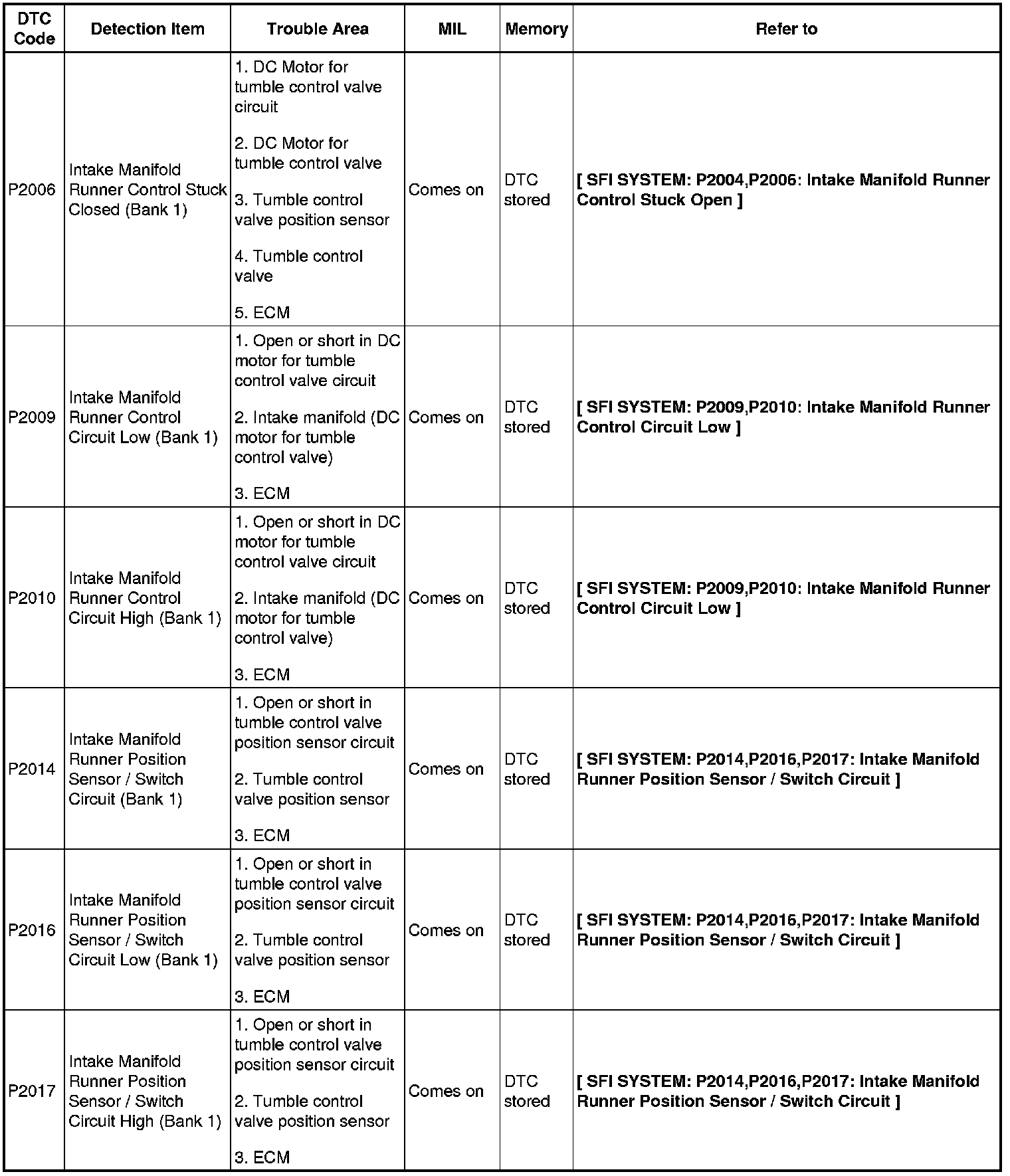

P2006 - P2017:

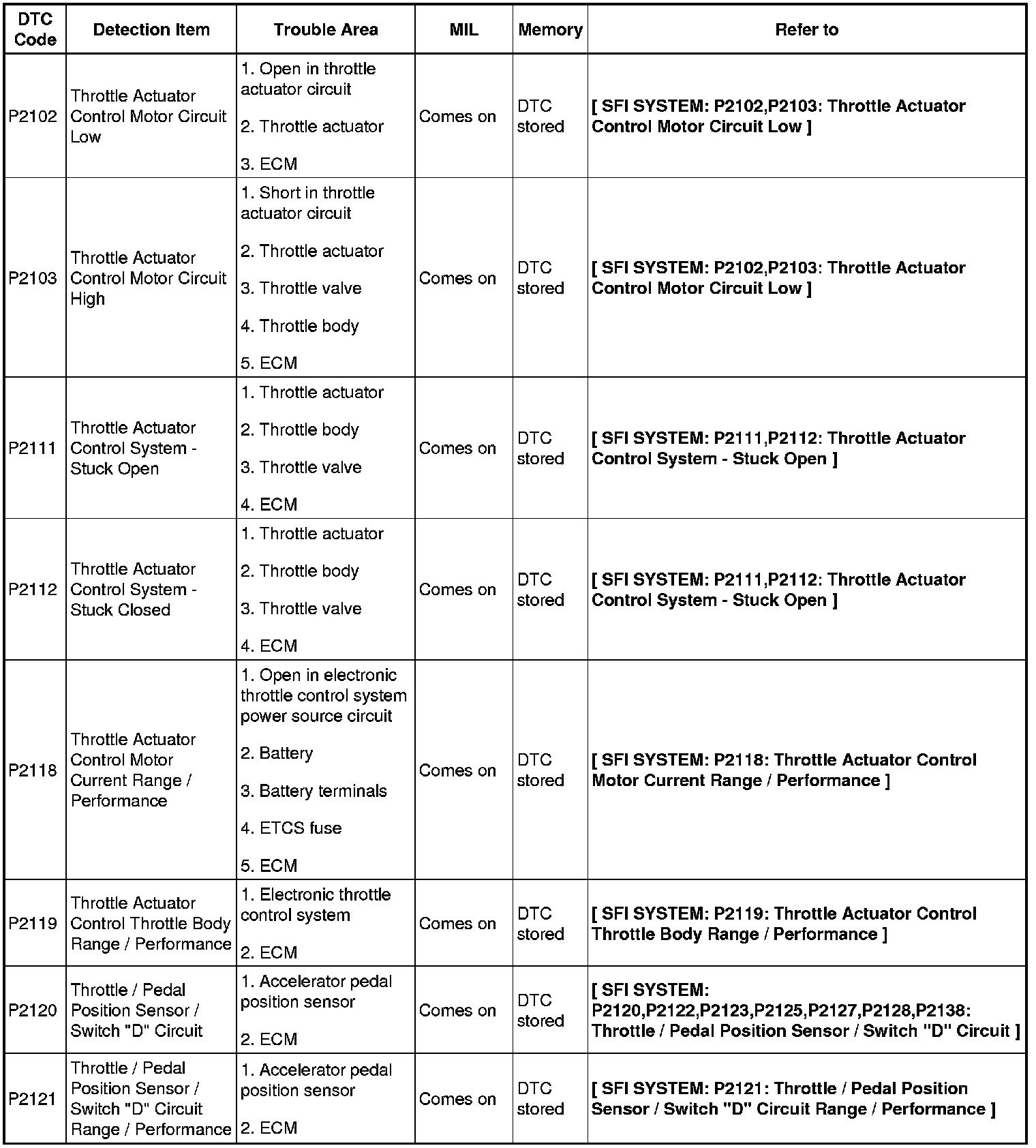

P2102 - P2121:

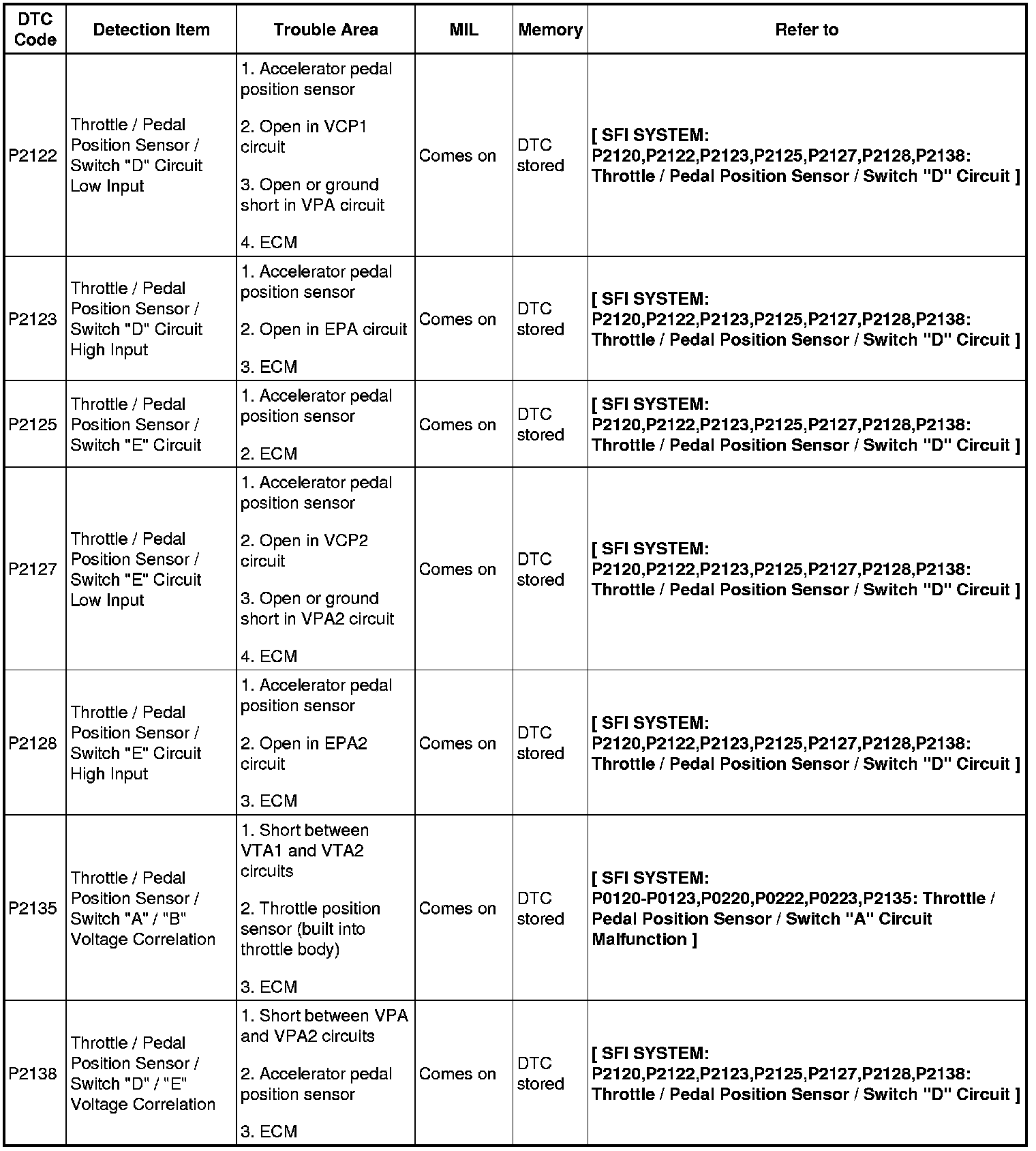

P2122 - P2138:

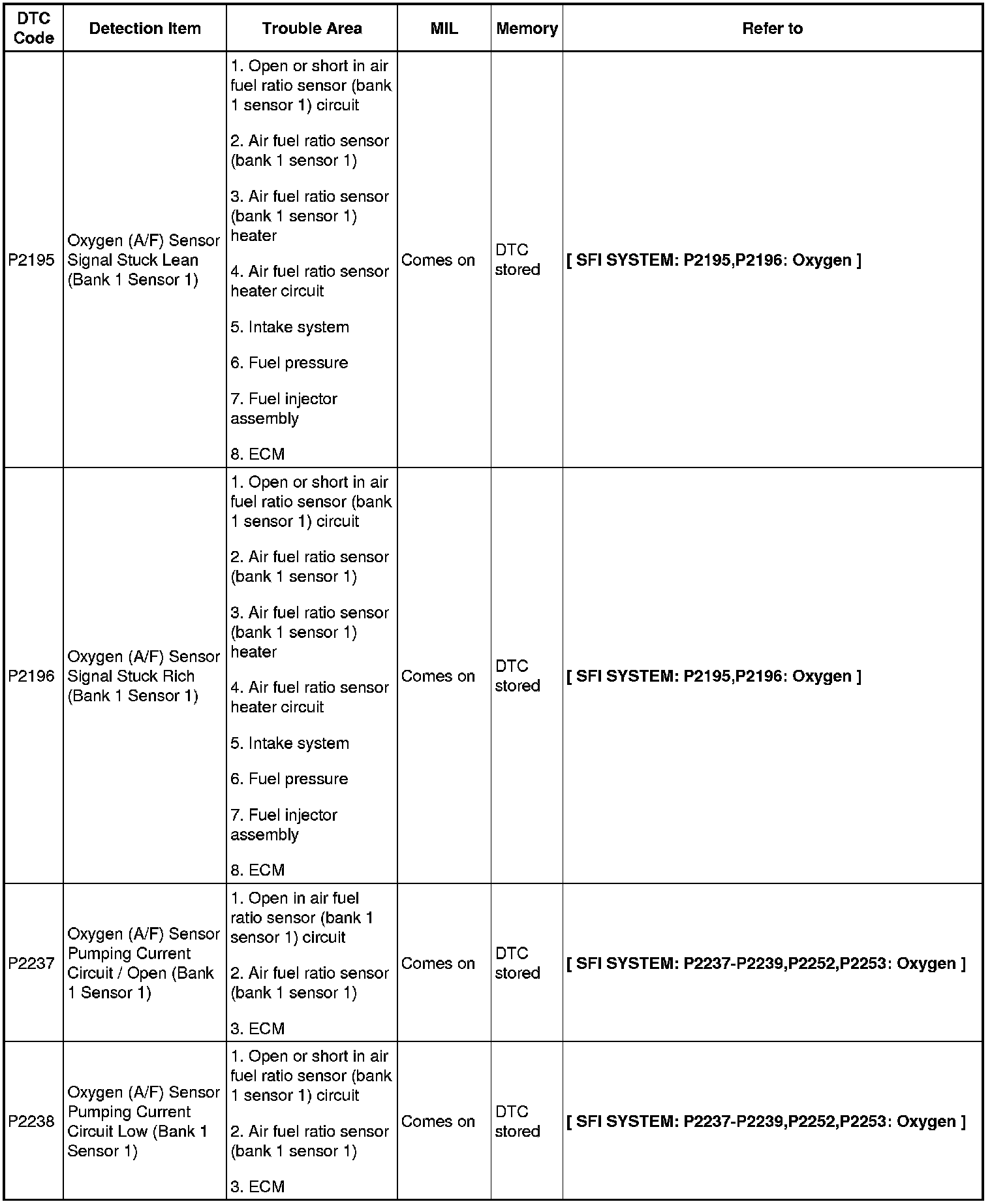

P2195 - P2238:

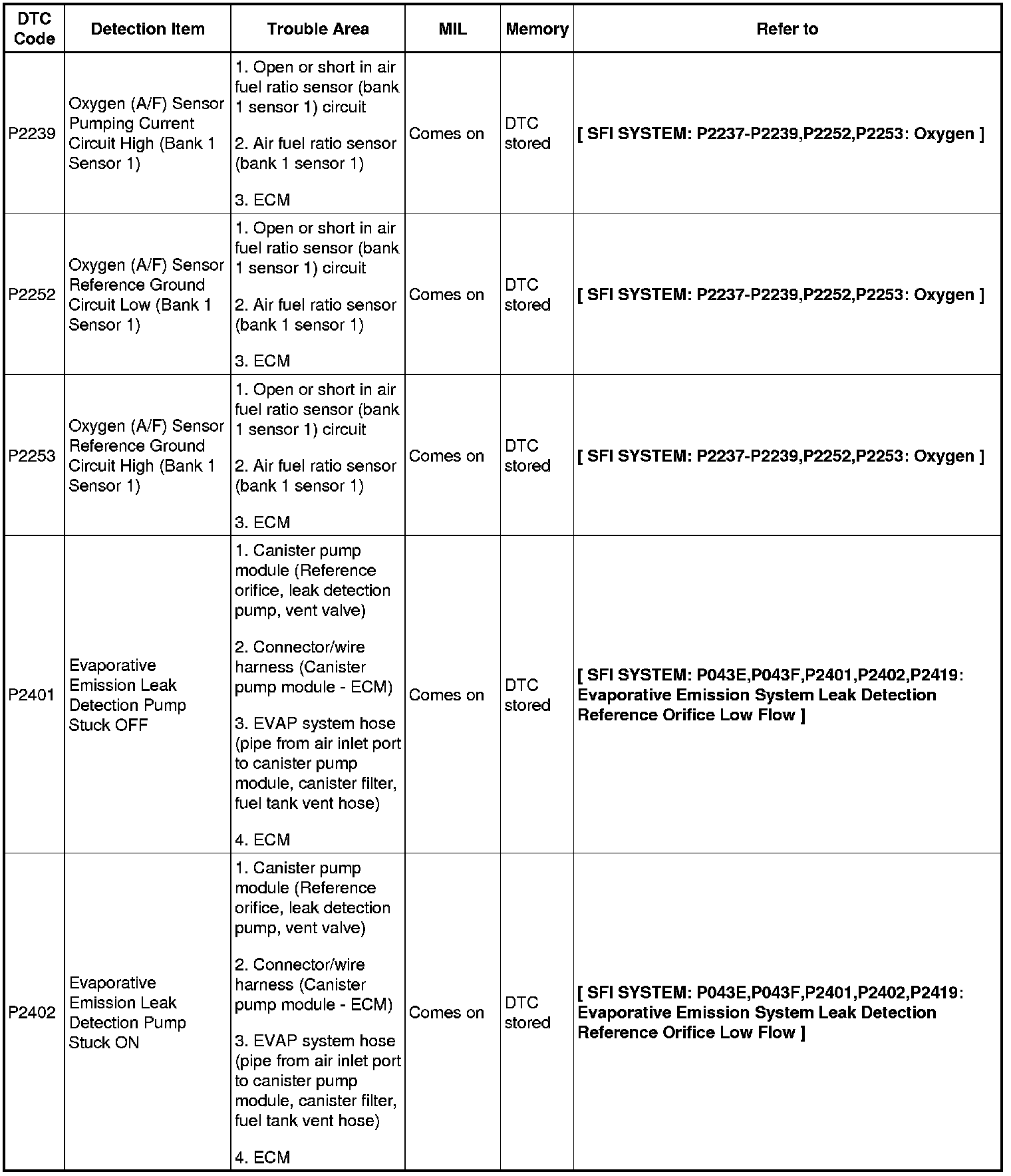

P2239 - P2402:

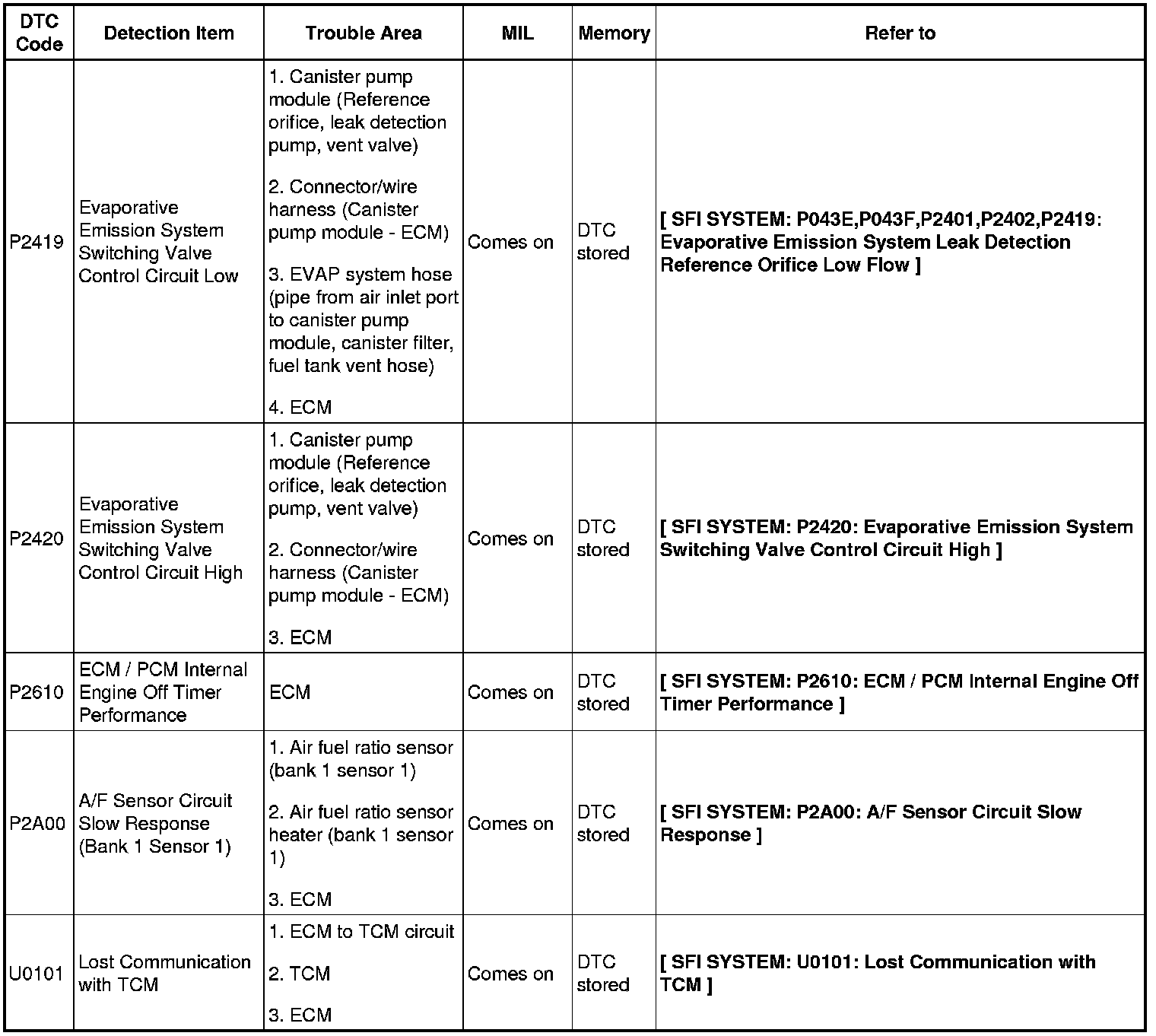

P2419 - P2A00 / U0101:

*1: The MIL flashes when a catalyst-damaging misfire is detected.
*2: w/ smart key system
*3: w/ navigation system
*4: for separate type amplifier system
*5: w/ automatic type headlight beam level control
