Transmission Pan Torque & Sequence

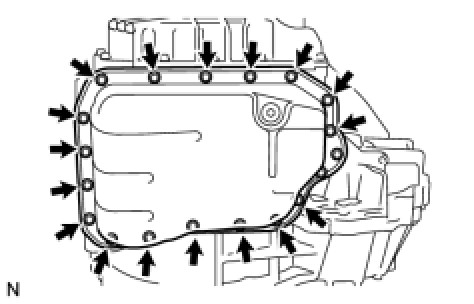

AUTOMATIC TRANSAXLE OIL PAN SUB-ASSEMBLYInstall the oil pan to the automatic transaxle with the 17 bolts.
Torque
7.5 Nm (76 kgf-cm, 66in-lbf)

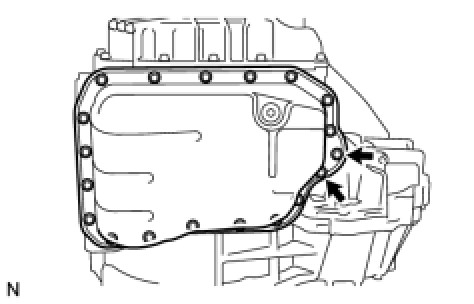

Install the oil pan to the automatic transaxle with the 2 bolts.
Torque
7.0 Nm (71 kgf-cm, 62in-lbf)
