Crankshaft, Engine
CRANKSHAFTThere are 4 sizes of standard bearings, marked "1", "2", "3" and "4" accordingly.
EXAMPLE

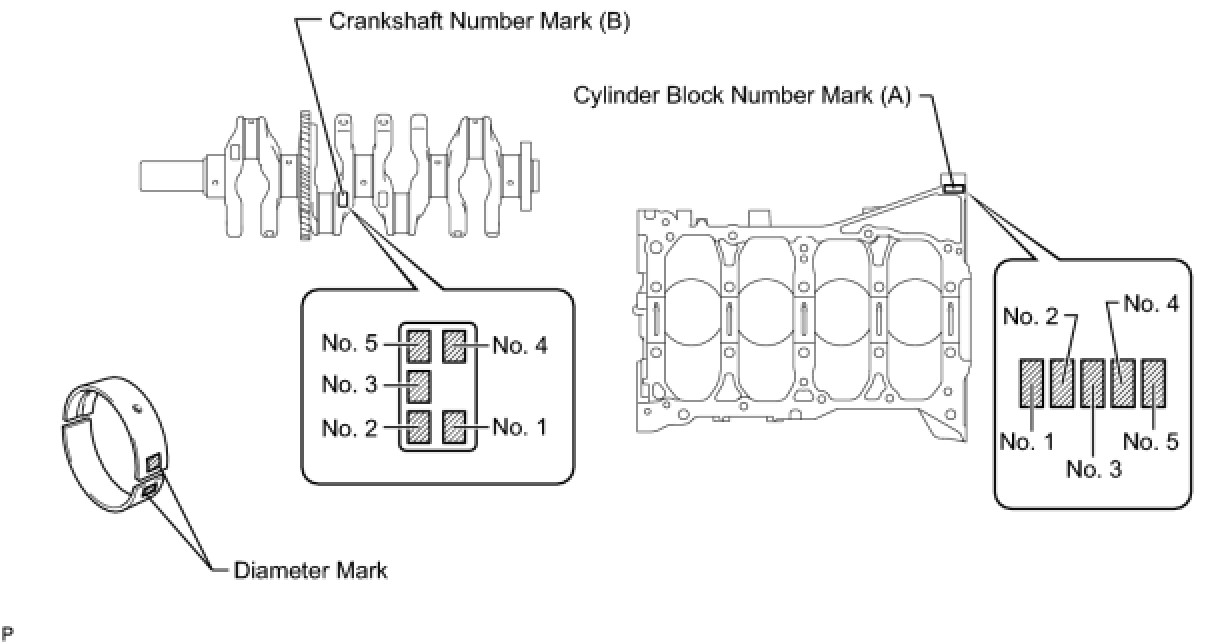

Cylinder block (A) "3" +
Crankshaft (B) "4" = Total "7"
Select the bearing marked "3".

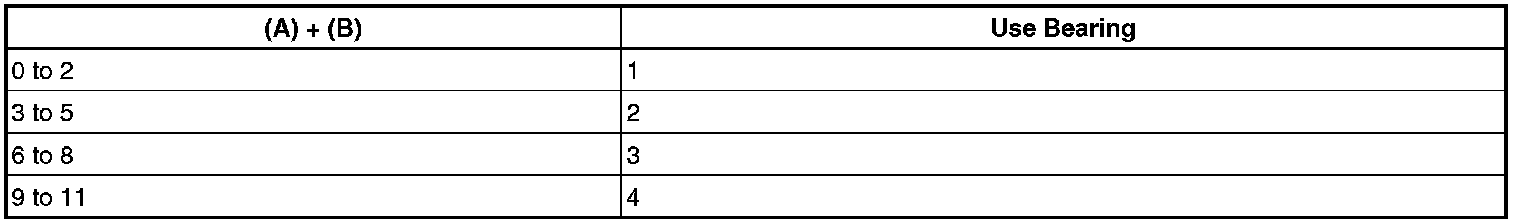

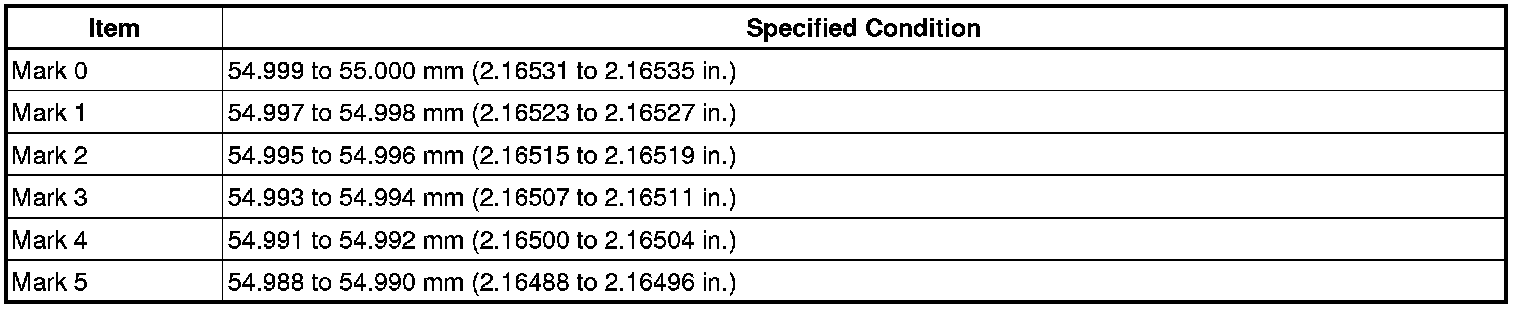

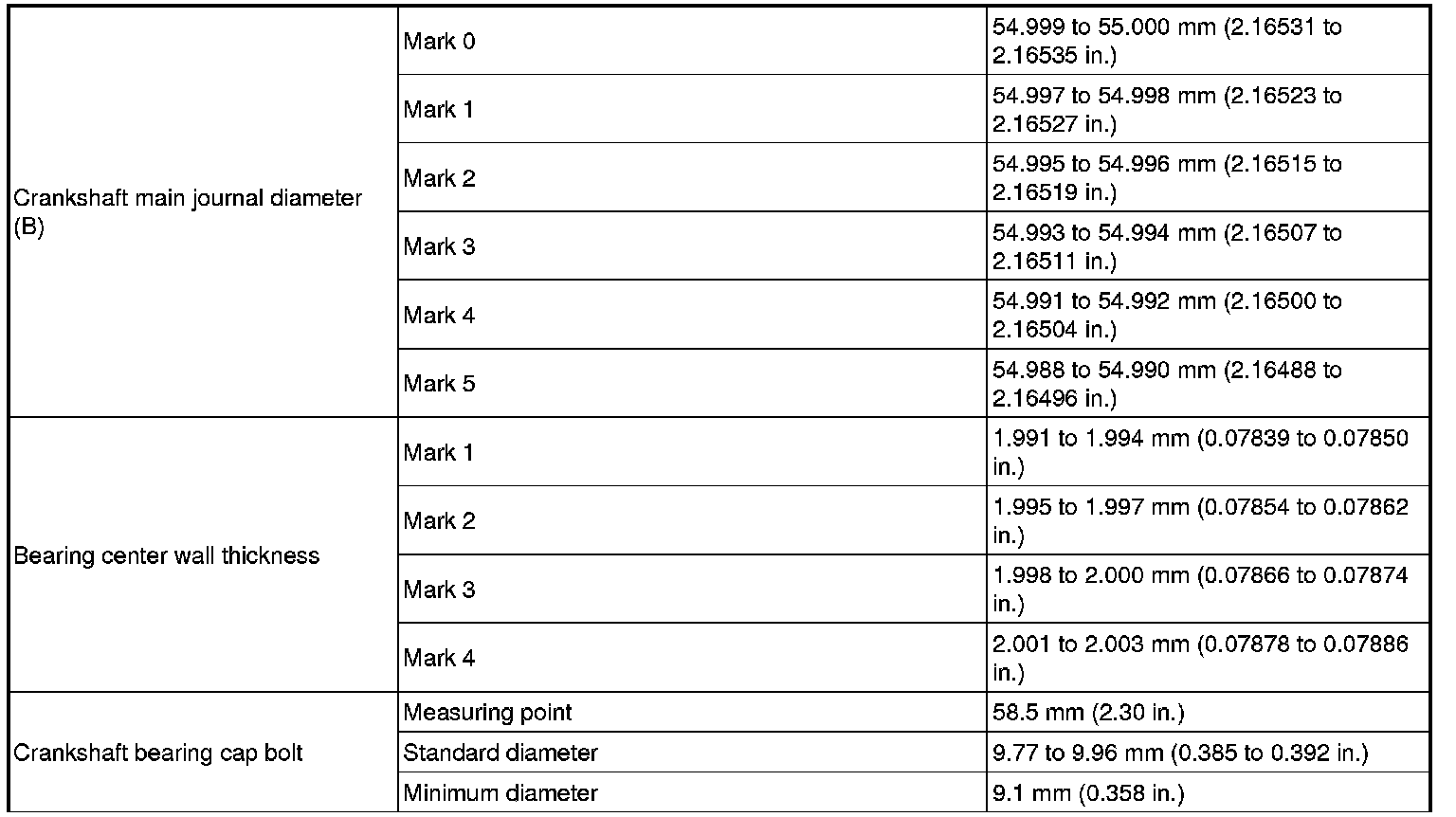

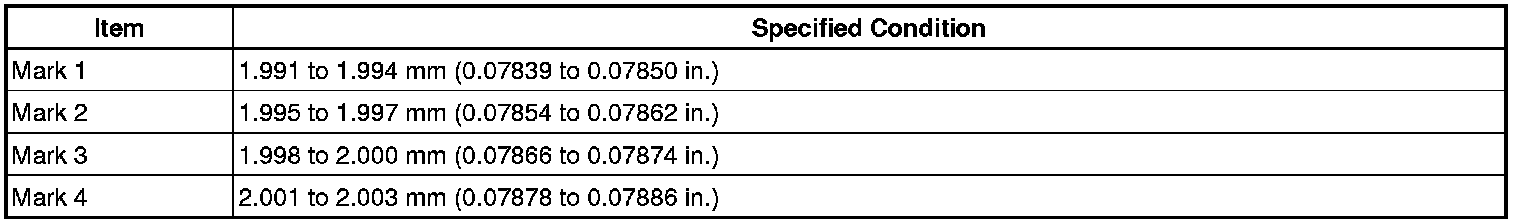

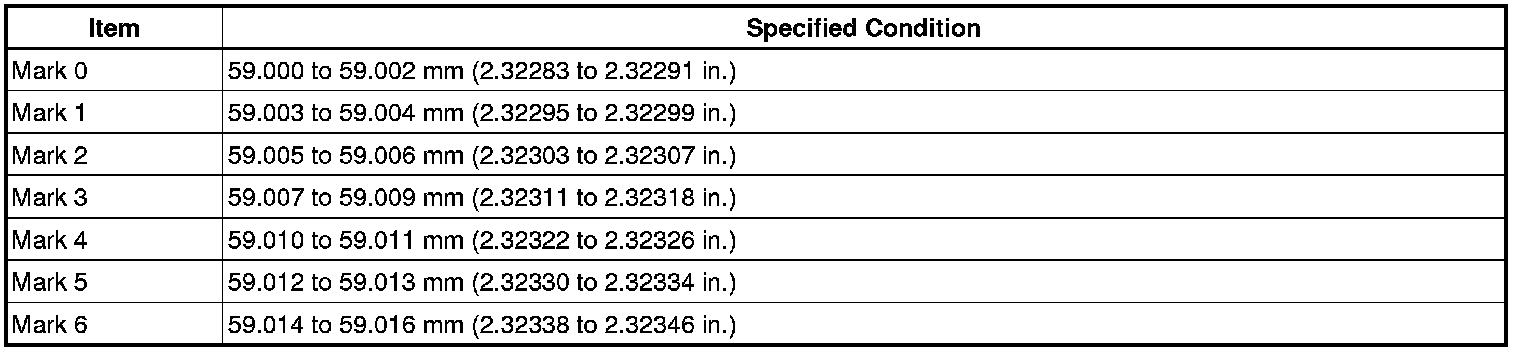

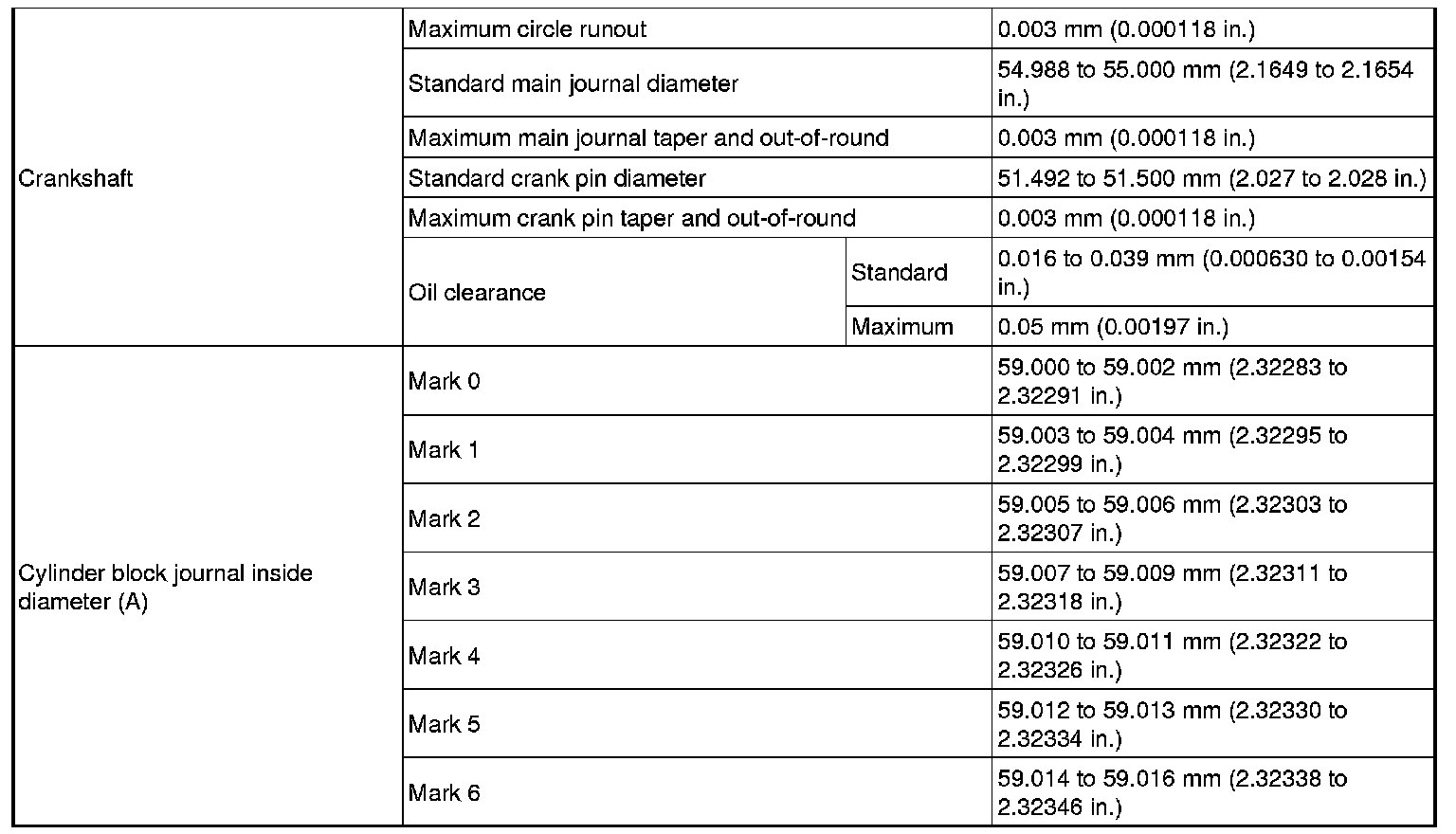

Bearing Chart:Standard Cylinder Block Journal Inside Diameter (A):Standard Crankshaft Main Journal Diameter (B):Standard Bearing Center Wall Thickness:
