Oil Pan, Engine

OIL PAN SUB-ASSEMBLY

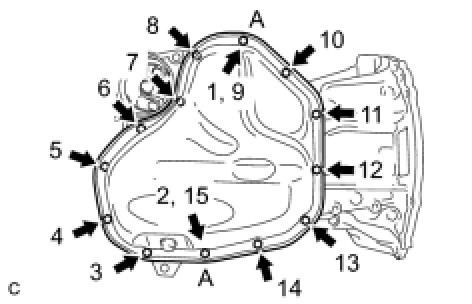

Install the oil pan with the 11 bolts and 2 nuts in several steps, in the sequence shown in the illustration.

Torque 10 Nm (102 kgf-cm, 7ft-lbf)

Bolt A and nut A are tightened twice
