Main Bearing Cap Torque and Sequence

CRANKSHAFT

Step 1:

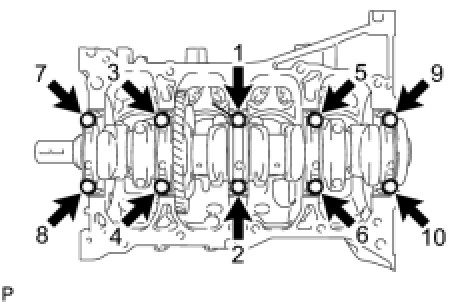

Using several steps, uniformly install and tighten the 10 bearing cap bolts in the sequence shown in the illustration.

Torque 20 Nm (204 kgf-cm, 15ft-lbf)

Step 2:

Tighten the 10 bearing cap bolts again in the sequence shown in the illustration.

Torque 40 Nm (408 kgf-cm, 30ft-lbf)

If a crankshaft bearing cap bolt does not meet the specified torque, replace it.

Step 3:

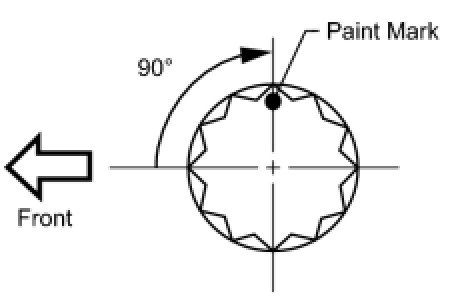

Mark the front of the bearing cap bolts with paint.
Tighten the 10 bearing cap bolts 90° in the same sequence.
Check that the paint marks are now at a 90° angle to the front.
Check that the crankshaft turns smoothly.
