Installation








1AR-FE BATTERY / CHARGING: GENERATOR: INSTALLATION

INSTALLATION

1. INSTALL GENERATOR ASSEMBLY





(a) Install the generator with the 2 bolts.
Torque: 52 Nm (530 kgf-cm, 38ft-lbf)

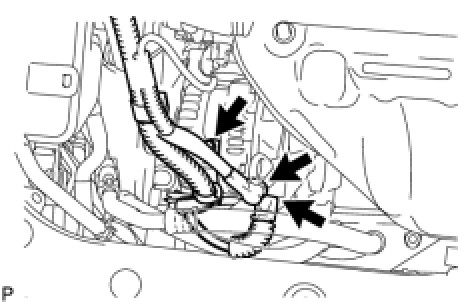

(b) Install the wire harness clamp bracket with the bolt.
Torque: 10 Nm (102 kgf-cm, 7ft-lbf)
(c) Connect the generator wire with the nut.
Torque: 9.8 Nm (100 kgf-cm, 87in-lbf)
(d) Install the terminal cap.
(e) Connect the generator connector.

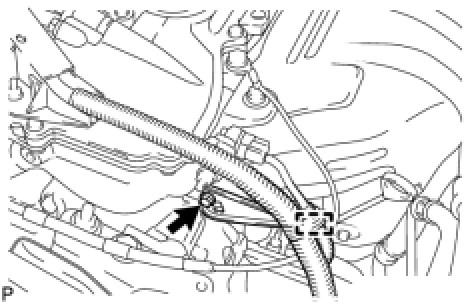

2. INSTALL WIRE HARNESS CLAMP BRACKET





(a) Install the clamp bracket with the bolt.
Torque: 10 Nm (102 kgf-cm, 7ft-lbf)
(b) Attach the wire harness clamp to the clamp bracket.
3. INSTALL V-RIBBED BELT
HINT: Installation

4. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY Installation
5. INSTALL COOL AIR INTAKE DUCT SEAL Installation
6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.
