Installation








DOOR LOCK: BACK DOOR LOCK (for Hatchback): INSTALLATION

INSTALLATION

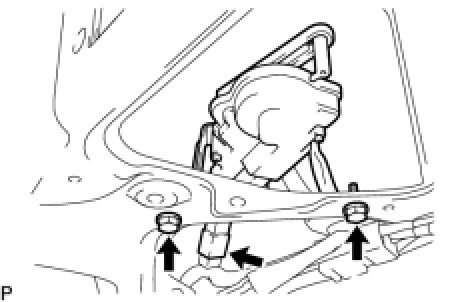

1. INSTALL BACK DOOR LOCK ACTUATOR ASSEMBLY
(a) Install the back door lock actuator with the 2 bolts.
Torque: 7.0 Nm (71 kgf-cm, 62 in-lbf)
(b) Connect the connector.

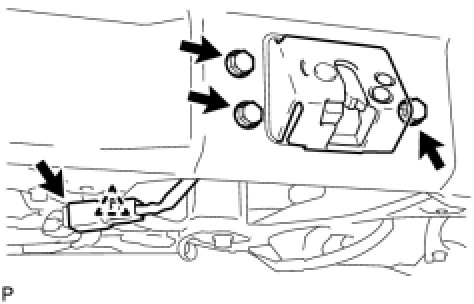

2. INSTALL BACK DOOR LOCK ASSEMBLY
(a) Install the back door lock with the 3 bolts.
Torque: 7.5 Nm (76 kgf-cm, 66 in-lbf)
(b) Connect the connector and clamp.
3. INSTALL BACK DOOR TRIM BOARD ASSEMBLY Reassembly
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
