Trunk / Liftgate Lock: Testing and Inspection

DOOR LOCK: BACK DOOR LOCK (for Hatchback): INSPECTION

INSPECTION

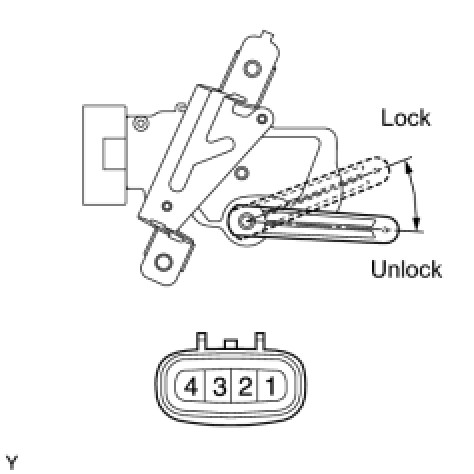

1. INSPECT BACK DOOR LOCK ACTUATOR ASSEMBLY (w/ Theft Deterrent System)
(a) Check the resistance of the unlock detection switch.
(1) Using an ohmmeter, measure the resistance and check the results in accordance with the value(s) in the tables below.
Standard Resistance:






If the result is not as specified, replace the back door lock actuator.

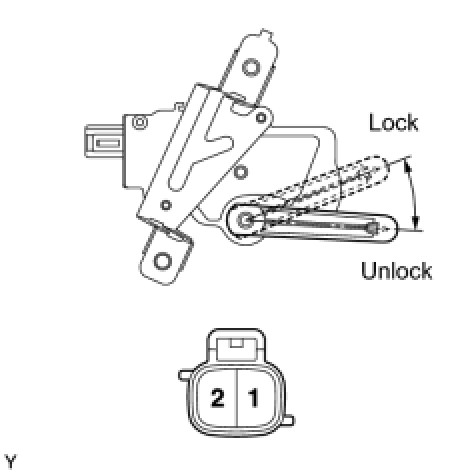

2. INSPECT BACK DOOR LOCK ACTUATOR ASSEMBLY (w/o Theft Deterrent System)
(a) Check the operation.
(1) Apply battery voltage to the back door lock actuator and check the operation of the back door lock motor.
Standard:






If the result is not as specified, replace the back door lock actuator.
