Installation
CRUISE CONTROL: CLUTCH SWITCH: INSTALLATION
INSTALLATION
1. INSTALL CLUTCH SWITCH ASSEMBLY

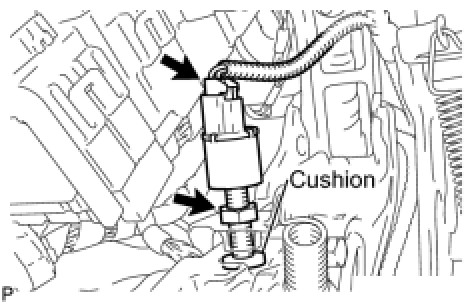

(a) Fully loosen the lock nut of the clutch switch assembly.
(b) Adjust the clutch switch until the center of the clutch pedal pad is at the standard height Testing and Inspection.
(c) Tighten the lock nut and ensure that the threaded portion is in contact with the cushion.
Torque: 16 Nm (160 kgf-cm, 12 ft-lbf)
(d) Connect the connector.
2. INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY LH
for Sedan: Installation
for Hatchback: Installation
