Removal








AIR CONDITIONING: COMPRESSOR AND PULLEY (for 1NZ-FE): REMOVAL

REMOVAL

1. DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM Service and Repair
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
3. REMOVE ENGINE UNDER COVER RH
4. REMOVE FAN AND GENERATOR V BELT Removal





5. DISCONNECT NO. 1 COOLER REFRIGERANT SUCTION HOSE
(a) Remove the bolt and disconnect the suction hose.
(b) Remove the O-ring from the suction hose.
NOTE: Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering.





6. DISCONNECT NO. 1 COOLER REFRIGERANT DISCHARGE HOSE
(a) Remove the bolt and disconnect the discharge hose.
(b) Remove the O-ring from the discharge hose.
NOTE: Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering.

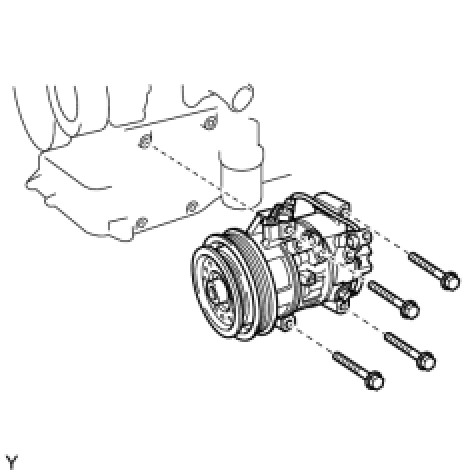

7. REMOVE COMPRESSOR AND PULLEY
(a) Disconnect the connector.
(b) Remove the 4 bolts and compressor.
