Installation








1NZ-FE ENGINE CONTROL SYSTEM: CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY: INSTALLATION

INSTALLATION

1. INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY

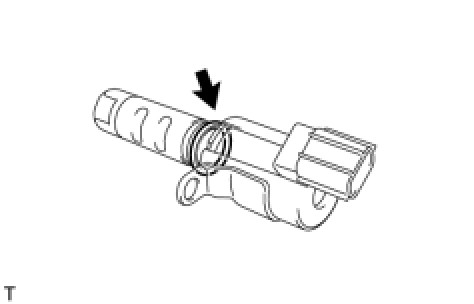

(a) Apply a light coat of engine oil to a new O-ring and install it onto the camshaft timing oil control valve assembly.
NOTE: Do not twist the O-ring.

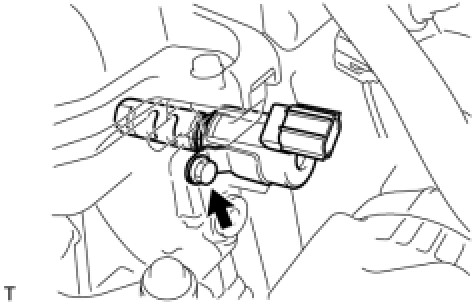

(b) Install the camshaft timing oil control valve assembly with the bolt.
Torque: 7.5 Nm (76 kgf-cm, 66 in-lbf)

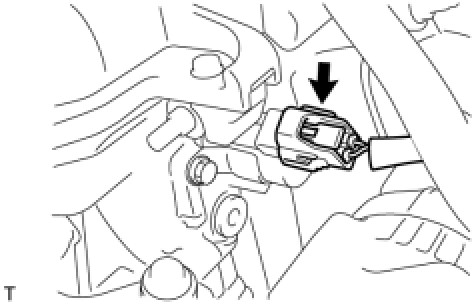

(c) Connect the camshaft timing oil control valve assembly connector.

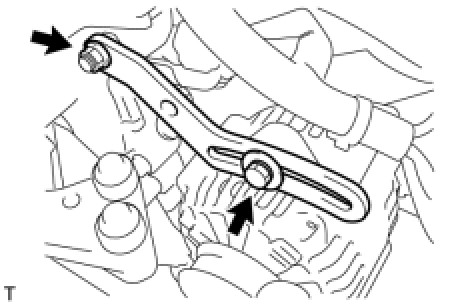

2. INSTALL FAN BELT ADJUSTING BAR
(a) Provisionally install the fan belt adjusting bar with the bolt and nut.
(b) Tighten the nut to the specified torque.
Torque: 11 Nm (112 kgf-cm, 8.1 ft-lbf)
3. INSTALL FAN AND GENERATOR V BELT Installation
4. ADJUST FAN AND GENERATOR V BELT Installation
5. INSPECT FAN AND GENERATOR V BELT Installation
6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
7. CHECK FOR ENGINE OIL LEAKAGE
8. INSTALL CYLINDER HEAD COVER NO. 2 Installation
9. INSTALL ENGINE UNDER COVER RH
