Oil Pan, Engine

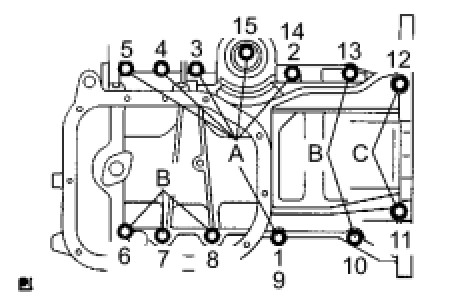

OIL PAN SUB-ASSEMBLYUsing several steps, install and tighten the 13 bolts uniformly in the sequence shown in the illustration.
Torque
24 Nm (245 kgf-cm, 18 ft-lbf)
Each bolt length is as follows:
Bolt A
49 mm (1.93 in.)
Bolt B
88 mm (3.47 in.)
Bolt C
144 mm (5.67 in.)
OIL PAN SUB-ASSEMBLY NO. 2Install
oil pan No. 2 with the 9 bolts and the 2 nuts.
Torque
9.0 Nm (92 kgf-cm, 80 in-lbf)
