Camshaft

CAMSHAFT

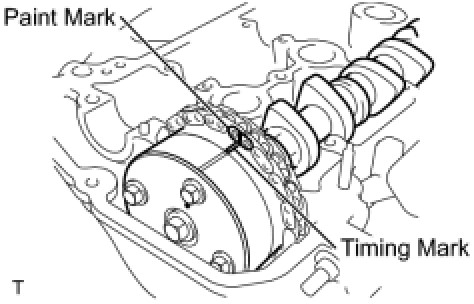

Install the chain onto the camshaft timing gear with the paint mark and the timing mark aligned as shown in the illustration.

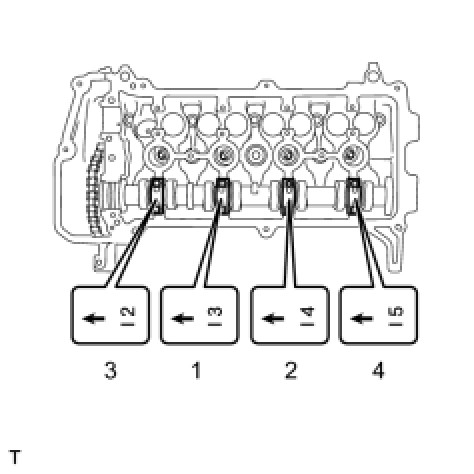

Examine the front marks and numbers on camshaft bearing cap No. 2 and check that the sequence is as shown in the illustration. Then uniformly tighten the bolts, in several steps, in the sequence shown in the illustration.
Torque 13 Nm (129 kgf-cm, 9.4 ft-lbf)

NO. 2 CAMSHAFT

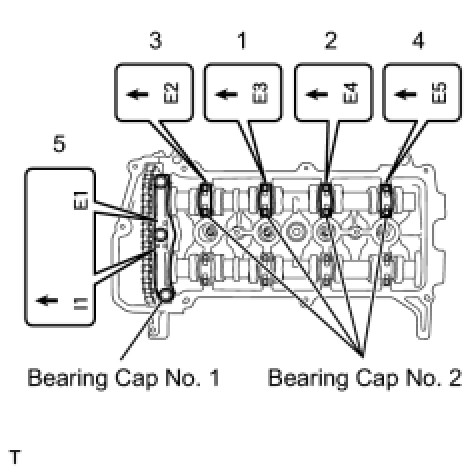

Examine the front marks and numbers on camshaft bearing caps No. 1 and No. 2 and check that the sequence is as shown in the illustration. Then uniformly tighten the bolts, in several steps, in the sequence shown in the illustration.
for bearing cap No. 2
Torque 13 Nm (129 kgf-cm, 9.4 ft-lbf)
for bearing cap No. 1
Torque 23 Nm (235 kgf-cm, 17 ft-lbf)
