Cylinder Head

CYLINDER HEAD SUB-ASSEMBLY

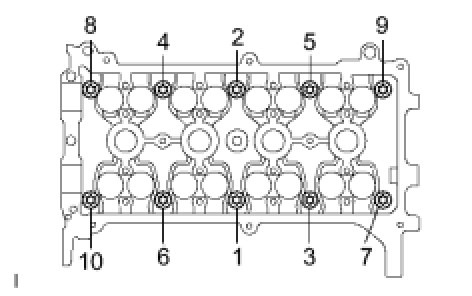

Using several steps, install and tighten the 10 cylinder head bolts and plate washers uniformly with an 8 mm bi-hexagon wrench in the sequence shown in the illustration.
Torque 29 Nm (300 kgf-cm, 22 ft-lbf)
Mark the front of the cylinder head bolt with paint.

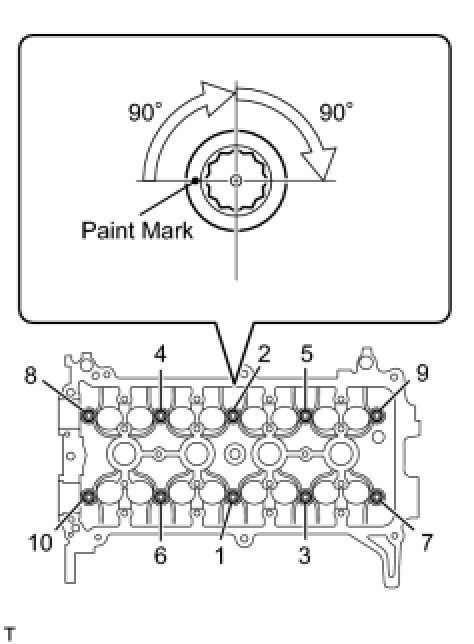

Retighten the cylinder head bolts by 90° and then an additional 90° as shown in the illustration.
Check that the paint mark is now at a 180° angle from the front
