Installation

1NZ-FE CHARGING: GENERATOR: INSTALLATION

INSTALLATION

1. INSTALL GENERATOR ASSEMBLY

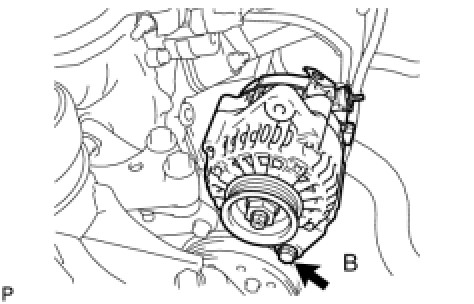

(a) Provisionally install the generator with fixing bolt B.

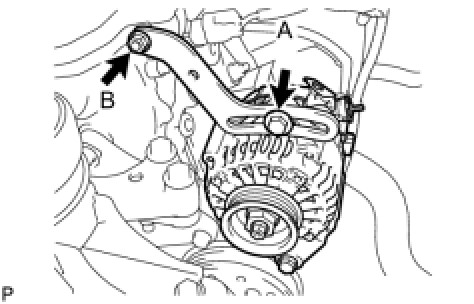

(b) Provisionally install the fan belt adjusting slider with fan belt adjusting slider fixing bolts A and B, then move the generator toward the cylinder block and tighten bolt B.
Torque: 11 Nm (112 kgf-cm, 8.1 ft-lbf)

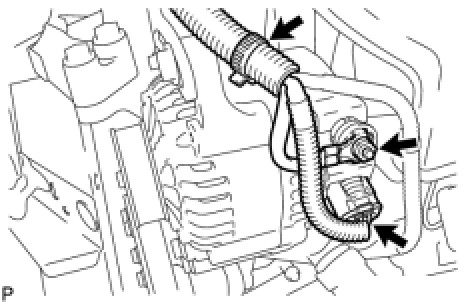

(c) Install the connector and the wire harness clamp.
(d) Install terminal B with the nut.
Torque: 9.8 Nm (100 kgf-cm, 7.2 ft-lbf)
(e) Install the terminal cap.
2. INSTALL FAN AND GENERATOR V BELT Installation
3. ADJUST FAN AND GENERATOR V BELT Installation
4. INSPECT FAN AND GENERATOR V BELT Installation
5. INSTALL ENGINE UNDER COVER RH
6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
