Installation








WINDSHIELD / WINDOWGLASS: FRONT PASSENGER SIDE POWER WINDOW SWITCH (for Hatchback): INSTALLATION

INSTALLATION

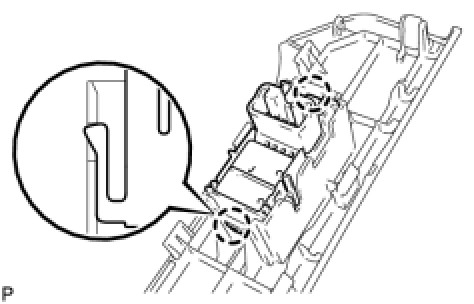

1. INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY
(a) Engage the 2 claws and install the power window regulator switch.

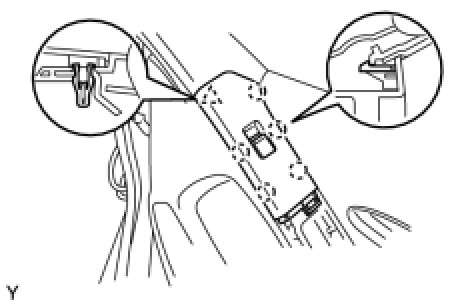

2. INSTALL FRONT ARMREST BASE PANEL UPPER
(a) Connect the connector.
(b) Engage the 5 claws and clip and install the front armrest base panel upper.
3. INSTALL DOOR ARMREST COVER
HINT: Use the same procedure as for the LH side Reassembly.

4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
