Air Injection Control Valve: Testing and Inspection

2TR-FE EMISSION CONTROL: AIR SWITCHING VALVE: INSPECTION

1. INSPECT AIR SWITCHING VALVE ASSEMBLY

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





HINT
When measuring the resistance, make sure that the surface temperature of the air switching valve is 20°C (68°F).

(b) If the result is not as specified, replace the air switching valve assembly.

(c) Check the operation of the air switching valve.

(1) Check that air does not flow from port A to port B.









NOTICE:
Make sure the applied pressure is 30 kPa (0.3 kgf/cm2, 4.4 psi) or less.

(2) If the result is not as specified, replace the air switching valve assembly.

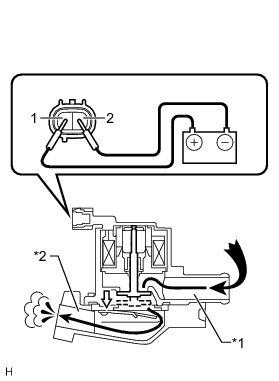

(3) Apply battery voltage across terminals 1 and 2.









NOTICE:
Apply voltage for 2 minutes or less.

(4) Check that air flows from port A to port B.

If the result is not as specified, replace the air switching valve assembly.
