Interior - Driver's Seat Popping/Creaking/Squeaking From Lumbar

T-SB-0051-12

March 1, 2012

Driver's Seat Popping/Creaking/Squeaking From Lumbar Area

Service Category
Vehicle Interior

Section
Seat

Market
USA

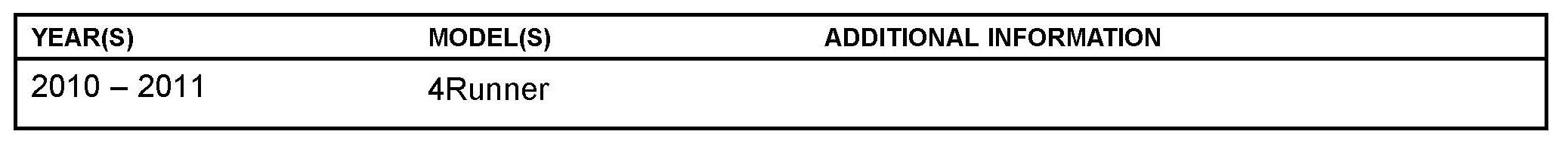

Applicability

Introduction

Some 2010 - 2011 4Runner vehicles may exhibit a condition where the driver's side seat back lumbar area makes a pop, squeak, or creak noise while driving. The condition may become more evident when driving on rough or uneven road surfaces or while moving around in the seat especially if the lumbar support is fully extended. Replace the front seat back spring assembly to address this condition.

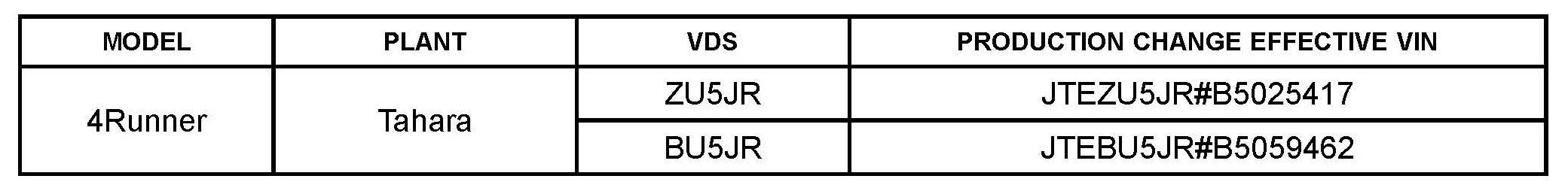

Production Change Information





This TSB applies to vehicles produced BEFORE the Production Change Effective VINs shown.

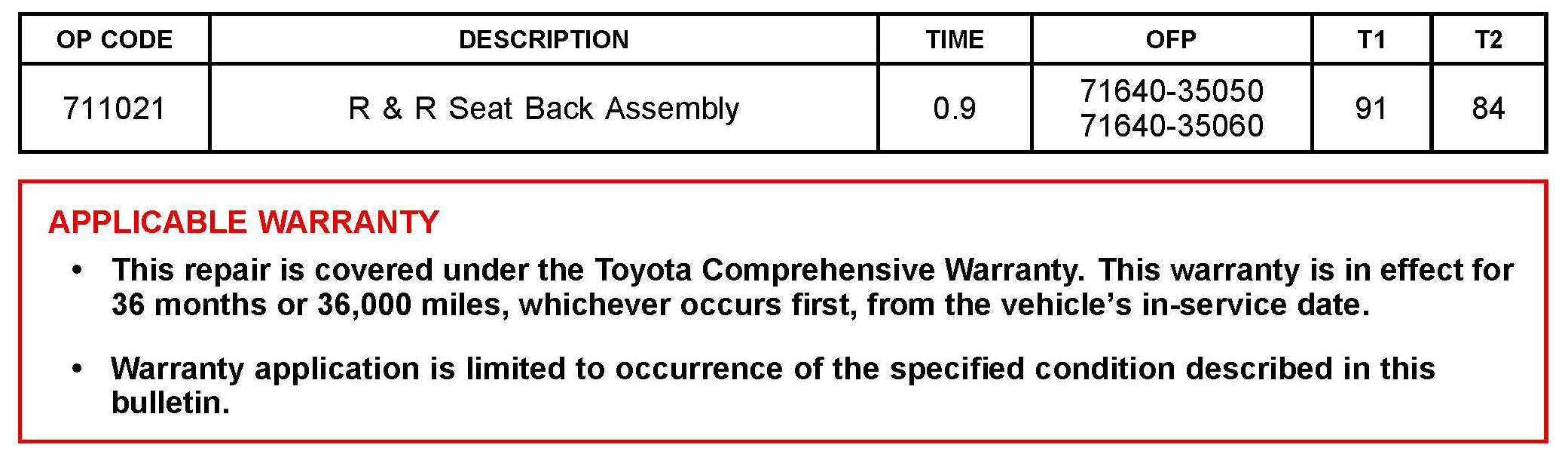

Warranty Information

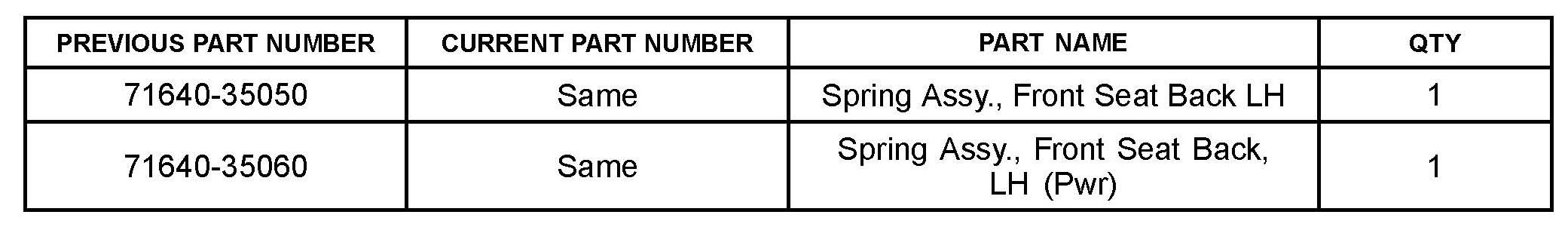

Parts Information

Repair Procedure

1. Refer to the Technical Information System (TIS) applicable model and model year Repair Manual:

^ 2010 4Runner:

^ Vehicle Interior - Supplemental Restraint Systems - "Airbag Systems: Precaution"





2. Remove the seat assembly from the vehicle. Refer to the Technical Information System (TIS) applicable model and model year Repair Manual:

3. Remove the seat back spring sub-assembly from the lower seat sub-assembly.

4. Remove the seat cover and cushion.

5. Install the seat cushion and cover on the new seat back spring sub-assembly.

6. Install the NEW seat back spring sub-assembly on to the lower seat sub-assembly.

7. Reinstall the seat assembly into the vehicle and confirm proper operation.
