ID Code Box Power Source Circuit
THEFT DETERRENT / KEYLESS ENTRY: ENGINE IMMOBILISER SYSTEM (w/ Smart Key System): ID Code Box Power Source Circuit
- ID Code Box Power Source Circuit
DESCRIPTION
This circuit provides power to operate the ID code box.

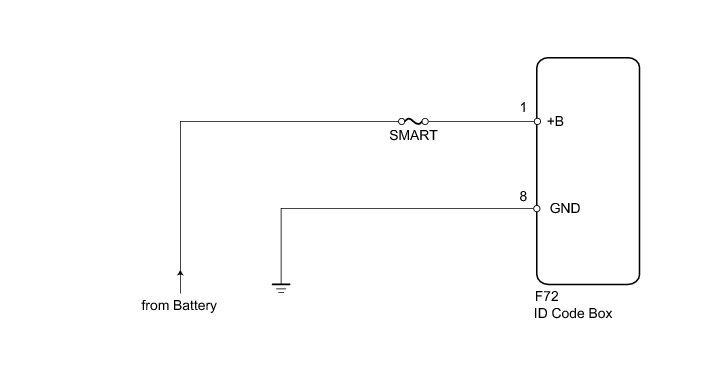

WIRING DIAGRAM
INSPECTION PROCEDURE
NOTICE:
Inspect the fuses for circuits related to this system before performing the following inspection procedure.
PROCEDURE
1. CHECK HARNESS AND CONNECTOR (ID CODE BOX - BATTERY AND BODY GROUND)
(a) Disconnect the F72 box connector.
(b) Measure the voltage according to the value(s) in the table below.
Standard Voltage:
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:

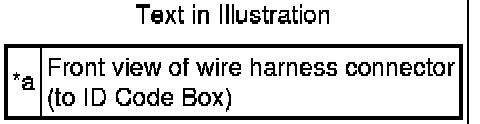

Text in Illustration
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Engine Immobiliser System (w/ Smart Key System)
