Removal
ENGINE IMMOBILISER: CERTIFICATION ECU (w/ Smart Key System): REMOVAL
NOTICE:
When removing the certification ECU (smart key ECU assembly), eliminate static electricity by touching the vehicle body to prevent the components from being damaged.
1. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
HINT
Refer to the procedure up to Remove Instrument Panel Safety Pad Sub-assembly Removal.
2. REMOVE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
(a) Disconnect each connector.
(b) Disengage the 2 claws to remove the ECU aggregation cover.

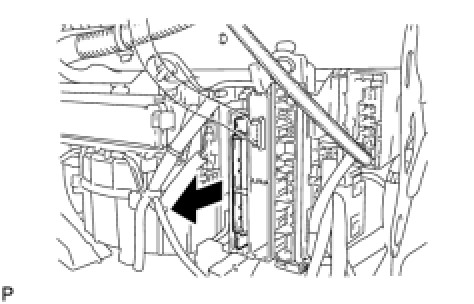

(c) Remove the certification ECU (smart key ECU assembly) as shown in the illustration.
NOTICE:
Be careful when removing the certification ECU (smart key ECU assembly). If the certification ECU (smart key ECU assembly) is dropped, replace it with a new one.
