Removal





CRUISE CONTROL: CRUISE CONTROL MAIN SWITCH: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait for 90 seconds after disconnecting the cable to prevent the airbag working Service Precautions.

2. REMOVE STEERING WHEEL NO. 3 COVER LOWER Removal

3. REMOVE STEERING WHEEL NO. 2 COVER LOWER Removal

4. REMOVE STEERING PAD Removal

5. REMOVE CRUISE CONTROL MAIN SWITCH

(a) Disconnect the connector.





(b) Remove the 2 screws.

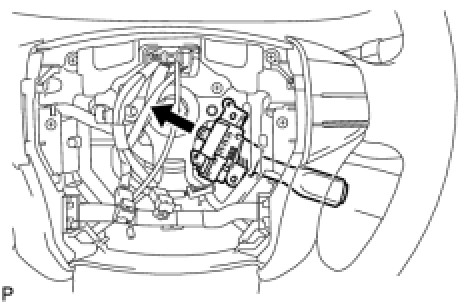

(c) Pull out the cruise control main switch assembly in the direction shown by the arrow in the illustration.
