Installation

2GR-FE ENGINE CONTROL SYSTEM: VVT SENSOR: INSTALLATION

1. INSTALL VVT SENSOR

(a) Intake camshaft (Bank 1).

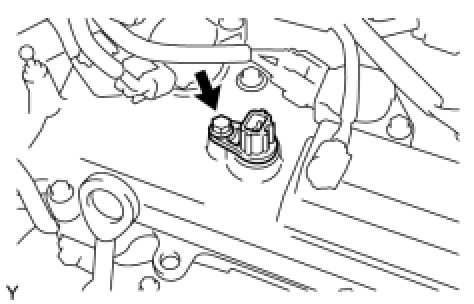

(1) Install the VVT sensor with the bolt.





Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

(2) Connect the VVT sensor connector.

(b) Exhaust camshaft (Bank 1).

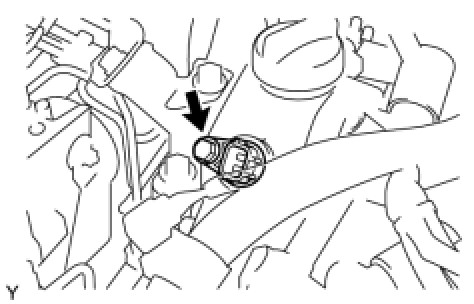

(1) Install the VVT sensor with the bolt.





Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

(2) Connect the VVT sensor connector.

(3) Install the cowl top outside panel front Installation.

(4) Install the windshield wiper link assembly Installation.

(c) Exhaust camshaft (Bank 2).

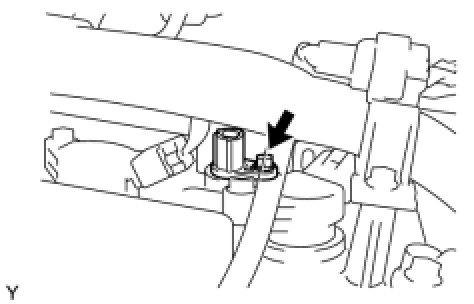

(1) Install the VVT sensor with the bolt.





Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

(2) Connect the VVT sensor connector.

(d) Intake camshaft (Bank 2).

(1) Install the VVT sensor with the bolt.





Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

(2) Connect the VVT sensor connector.

2. INSTALL V-BANK COVER SUB-ASSEMBLY Installation
