Intake Manifold
INTAKE MANIFOLD

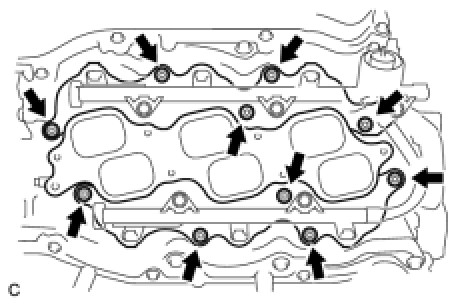

Install and tighten the 6 bolts and 4 nuts uniformly in several steps.
Torque 21 Nm (214 kgf-cm, 15 ft-lbf)
INTAKE AIR SURGE TANK
NOTICE:

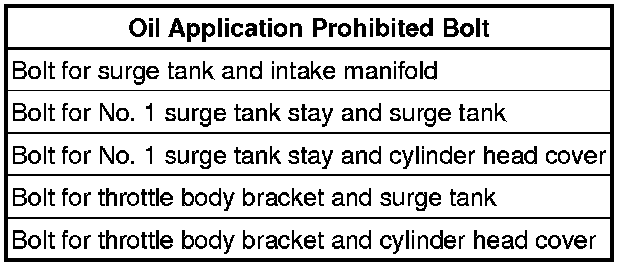

Do not apply oil to the bolts as listed below:
(a) Install a new gasket to the intake air surge tank.

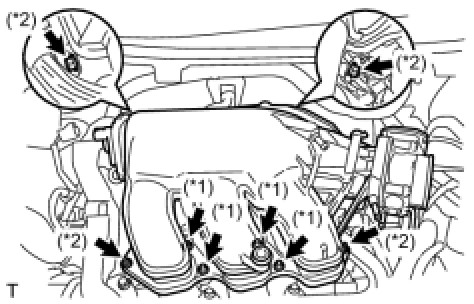

(b) Using a 5 mm hexagon socket wrench, install the 4 bolts. (*1)
Torque : 18 Nm (184 kgf-cm, 13 ft-lbf)
(c) Install the intake air surge tank with the 2 nuts and 2 bolts. (*2)
Nut - Torque : 16 Nm (163 kgf-cm, 12 ft-lbf)
Bolt - Torque : 21 Nm (214 kgf-cm, 15 ft-lbf)
