Installation

2GR-FE ENGINE CONTROL SYSTEM: KNOCK SENSOR: INSTALLATION

1. INSTALL KNOCK CONTROL SENSOR

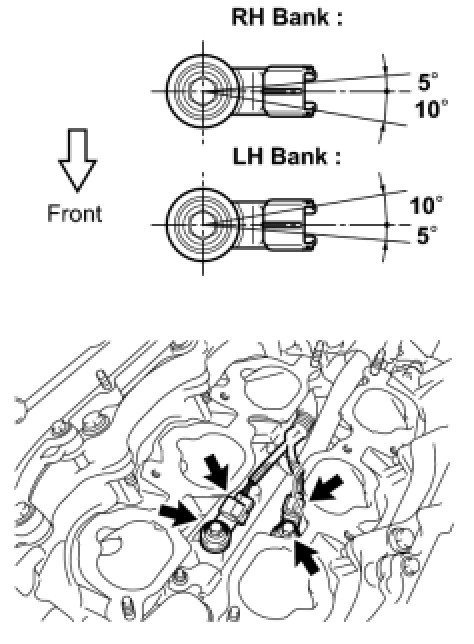

(a) Install the 2 knock control sensors with the 2 bolts as shown in the illustration.





Torque : 20 Nm (204 kgf-cm, 15 ft-lbf)

(b) Connect the 2 knock control sensor connectors.

2. INSTALL INTAKE MANIFOLD Installation

3. CONNECT FUEL TUBE SUB-ASSEMBLY Installation

4. INSTALL INTAKE AIR SURGE TANK Installation

5. INSTALL NO. 1 AIR CLEANER INLET Installation

6. INSTALL AIR CLEANER CASE SUB-ASSEMBLY Installation

7. INSTALL AIR CLEANER CAP SUB-ASSEMBLY Installation

8. INSTALL AIR CLEANER INLET ASSEMBLY Installation

9. INSTALL V-BANK COVER SUB-ASSEMBLY Installation

10. INSTALL COOL AIR INTAKE DUCT SEAL Installation

11. INSTALL COWL TOP PANEL OUTER SUB-ASSEMBLY Installation

12. INSTALL WINDSHIELD WIPER MOTOR AND LINK Installation

13. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY Installation

14. INSTALL FRONT FENDER TO COWL SIDE SEAL RH Installation

15. INSTALL FRONT FENDER TO COWL SIDE SEAL LH Installation

16. INSTALL WINDSHIELD WIPER ARM AND BLADE ASSEMBLY LH Installation

17. INSTALL WINDSHIELD WIPER ARM AND BLADE ASSEMBLY RH Installation

18. ADD ENGINE COOLANT Testing and Inspection

19. CHECK FOR ENGINE COOLANT LEAKS Testing and Inspection

20. CHECK FOR FUEL LEAKS Testing and Inspection

21. INSTALL ENGINE UNDER COVER RH

22. INSTALL ENGINE UNDER COVER LH
