2GR-FE ENGINE CONTROL SYSTEM: ECM: REMOVAL

1. REMOVE WINDSHIELD WIPER ARM AND BLADE ASSEMBLY LH Removal

2. REMOVE WINDSHIELD WIPER ARM AND BLADE ASSEMBLY RH Removal

3. REMOVE FRONT FENDER TO COWL SIDE SEAL LH Removal

4. REMOVE FRONT FENDER TO COWL SIDE SEAL RH Removal

5. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY Removal

6. REMOVE WINDSHIELD WIPER MOTOR AND LINK Removal

7. REMOVE COWL TOP OUTER PANEL SUB-ASSEMBLY Removal

8. REMOVE ECM

(a) Remove the 3 nuts.





(b) Disconnect the 2 ECM connectors and remove the ECM.

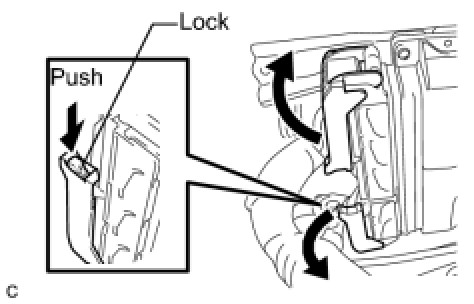

(1) Raise the 2 levers while pushing the locks on the 2 levers, and disconnect the 2 ECM connectors.





NOTICE:
After disconnecting the connector, make sure that dirt, water and other foreign matter do not contact the connecting part of the connector.

(2) Remove the ECM.

(c) Remove the 4 screws and 2 ECM brackets.
