HEATING / AIR CONDITIONING: ROOM TEMPERATURE SENSOR: INSTALLATION

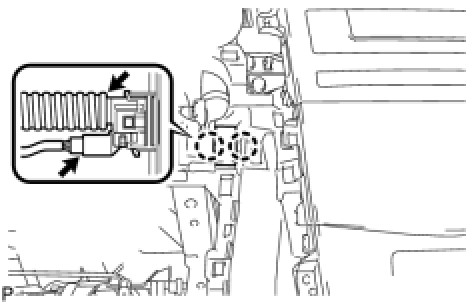

1. INSTALL ROOM TEMPERATURE SENSOR

(a) Engage the 2 claws and install the room temperature sensor.





(b) Engage the air hose.

(c) Connect the connector.

2. INSTALL NO. 1 SWITCH HOLE BASE (w/o Smart Key System) Installation

3. INSTALL NO. 1 SWITCH HOLE BASE (w/ Smart Key System) Installation

4. INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY Installation

5. INSTALL INSTRUMENT PANEL FINISH PANEL END LH Installation

6. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH Installation

7. INSTALL UPPER STEERING COLUMN COVER Installation

8. INSTALL LOWER STEERING COLUMN COVER Installation

9. TURN FRONT WHEELS TO FACE STRAIGHT AHEAD

10. ADJUST SPIRAL CABLE Installation

11. INSTALL STEERING WHEEL ASSEMBLY Installation

12. INSTALL STEERING PAD Installation

13. INSTALL LOWER NO. 3 STEERING WHEEL COVER Installation

14. INSTALL LOWER NO. 2 STEERING WHEEL COVER Installation

15. INSPECT STEERING WHEEL CENTER POINT

16. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY Installation

17. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

18. INSPECT STEERING PAD Installation

19. INSPECT SRS WARNING LIGHT
