Installation





1AR-FE ENGINE CONTROL SYSTEM: ENGINE COOLANT TEMPERATURE SENSOR: INSTALLATION

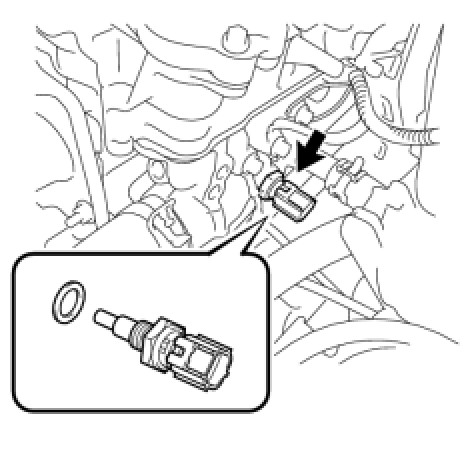

1. INSTALL ENGINE COOLANT TEMPERATURE SENSOR

(a) Install a new gasket to the sensor.





(b) Install the engine coolant temperature sensor.

Torque : 20 Nm (204 kgf-cm, 15 ft-lbf)

(c) Connect the engine coolant temperature sensor connector.





2. INSTALL AIR CLEANER CASE

3. INSTALL AIR CLEANER CAP SUB-ASSEMBLY

4. INSTALL NO. 1 VACUUM SWITCHING VALVE

5. ADD ENGINE COOLANT

6. INSPECT FOR COOLANT LEAK

7. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY

8. INSTALL OUTER COWL TOP PANEL SUB-ASSEMBLY

9. INSTALL WINDSHIELD WIPER MOTOR AND LINK

HINT
See the steps from "Install Windshield Wiper Motor and Link Assembly" through "Install front wiper arm and blade assembly LH".

10. INSTALL NO. 1 ENGINE UNDER COVER
