Removal

1AR-FE ENGINE CONTROL SYSTEM: ENGINE COOLANT TEMPERATURE SENSOR: REMOVAL

1. REMOVE WINDSHIELD WIPER MOTOR AND LINK

HINT
See the steps from "Remove front wiper arm and blade assembly LH" through "Remove windshield wiper motor and link" Removal.

2. SEPARATE EJECTOR TUBE

3. REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY

4. REMOVE NO. 1 ENGINE UNDER COVER

5. DRAIN ENGINE COOLANT

6. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

7. REMOVE NO. 1 VACUUM SWITCHING VALVE

8. REMOVE AIR CLEANER CAP SUB-ASSEMBLY

9. REMOVE AIR CLEANER CASE

10. REMOVE ENGINE COOLANT TEMPERATURE SENSOR

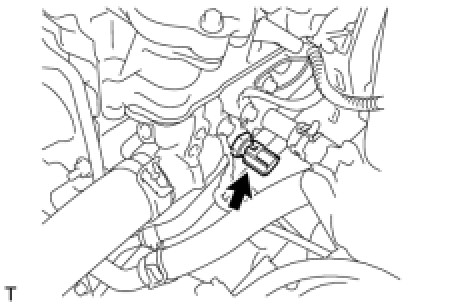

(a) Disconnect the engine coolant temperature sensor connector.

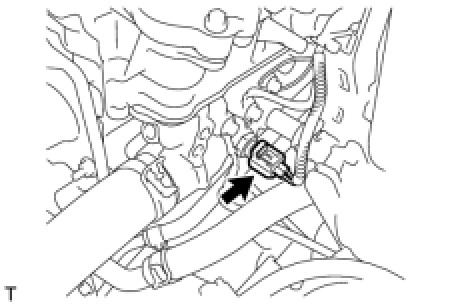

(b) Remove the engine coolant temperature sensor and gasket.
