Intake Manifold
INTAKE MANIFOLDSet 2 new gaskets on each cylinder head.
Align the port holes of the gaskets and cylinder head.
Make sure that the gaskets are installed in the correct direction.
Set the
intake manifold on the cylinder heads.

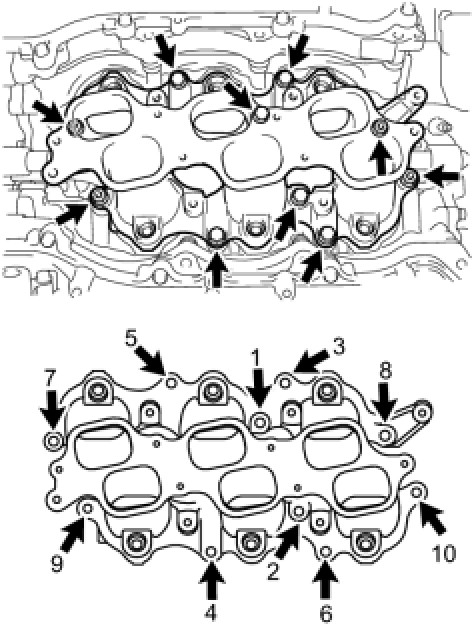

Install the
intake manifold with the 6 bolts and 4 nuts in the order shown in the illustration.
Torque
21 Nm (214 kgf-cm, 15 ft-lbf)
