Power Seat [Driver's Seat]

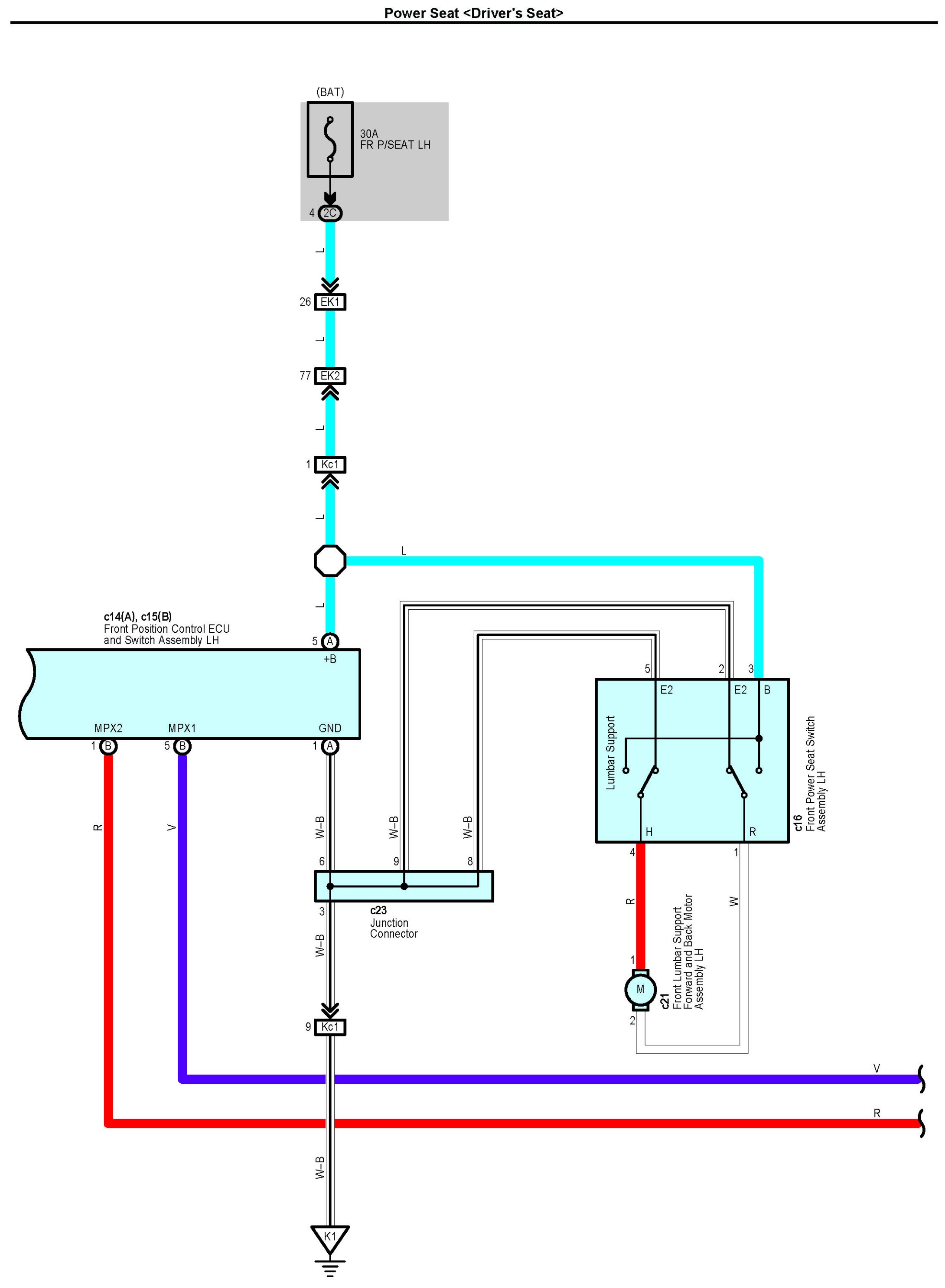

Power Seat [Driver's Seat] Part 1:

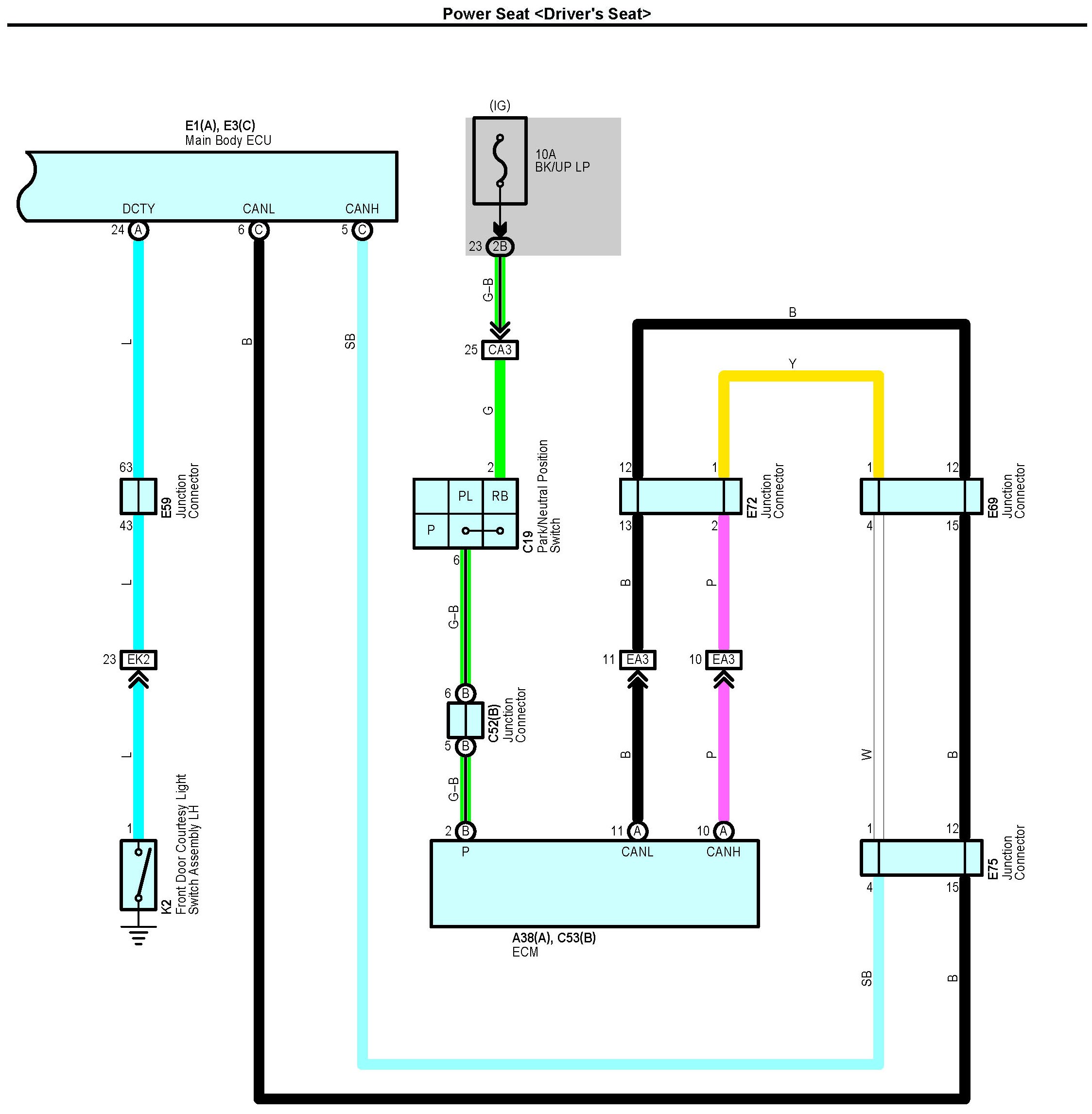

Power Seat [Driver's Seat] Part 2:




Power Seat [Driver's Seat] Part 3:

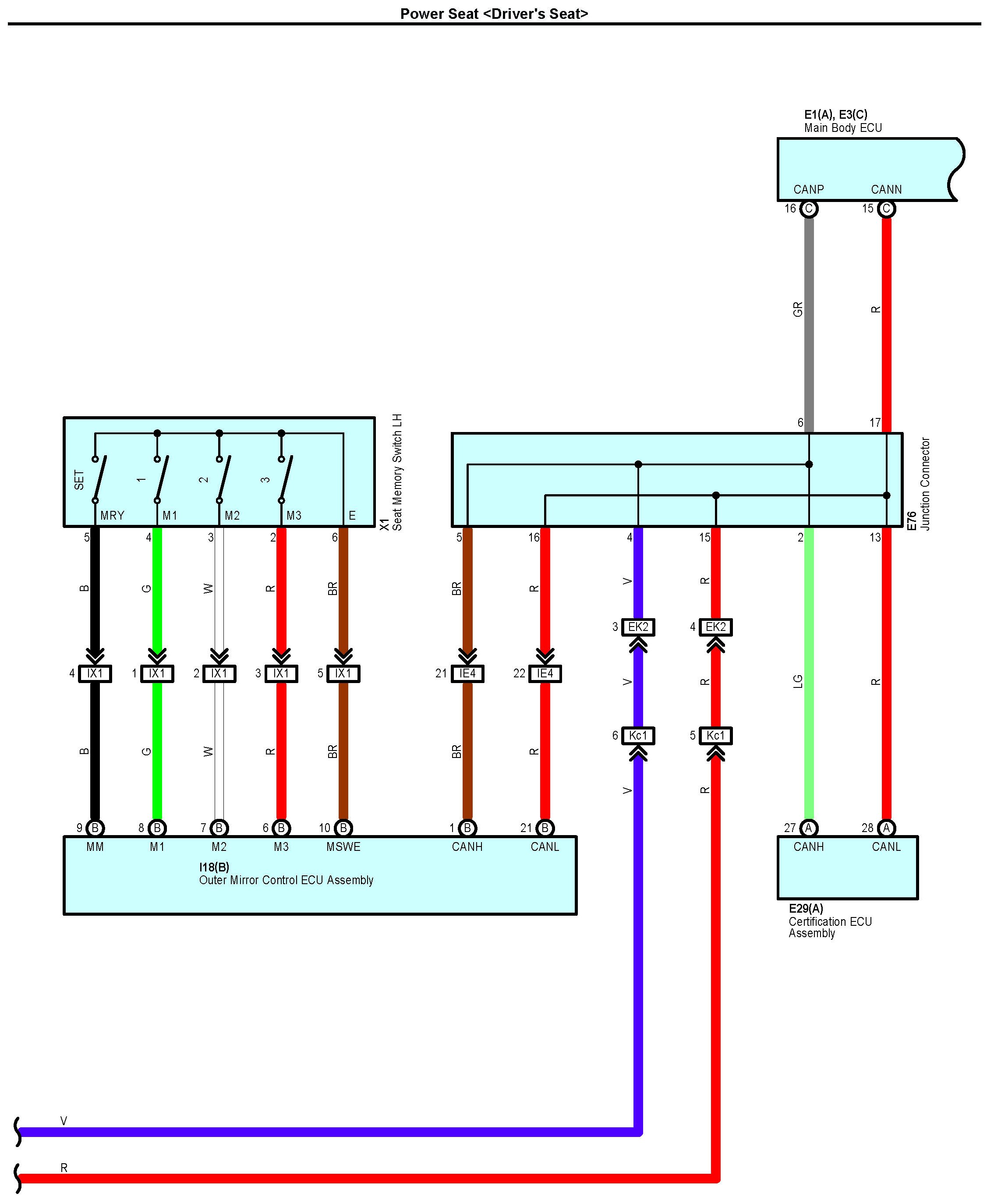

Power Seat [Driver's Seat] Part 4:

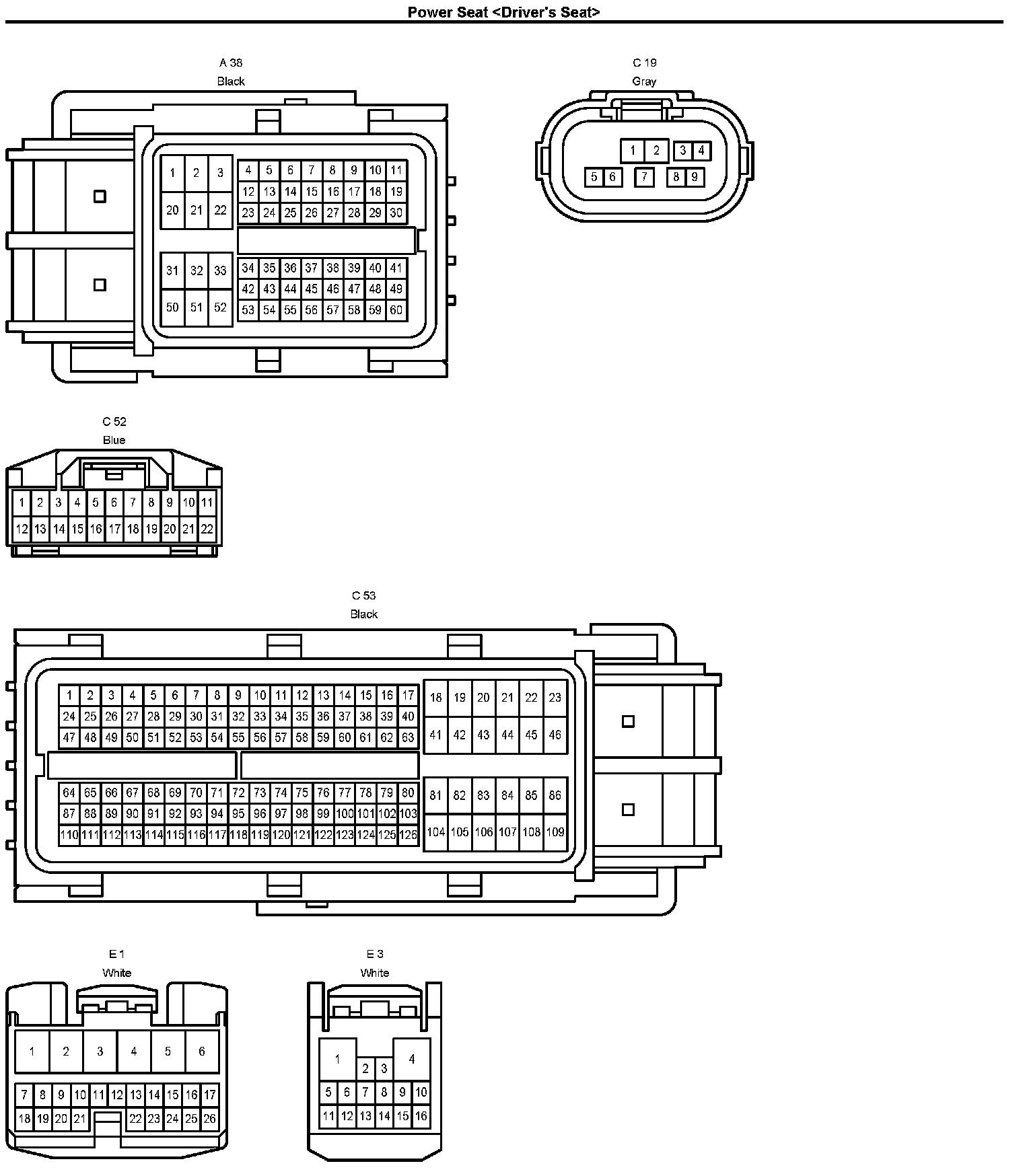

Connectors Part 1:

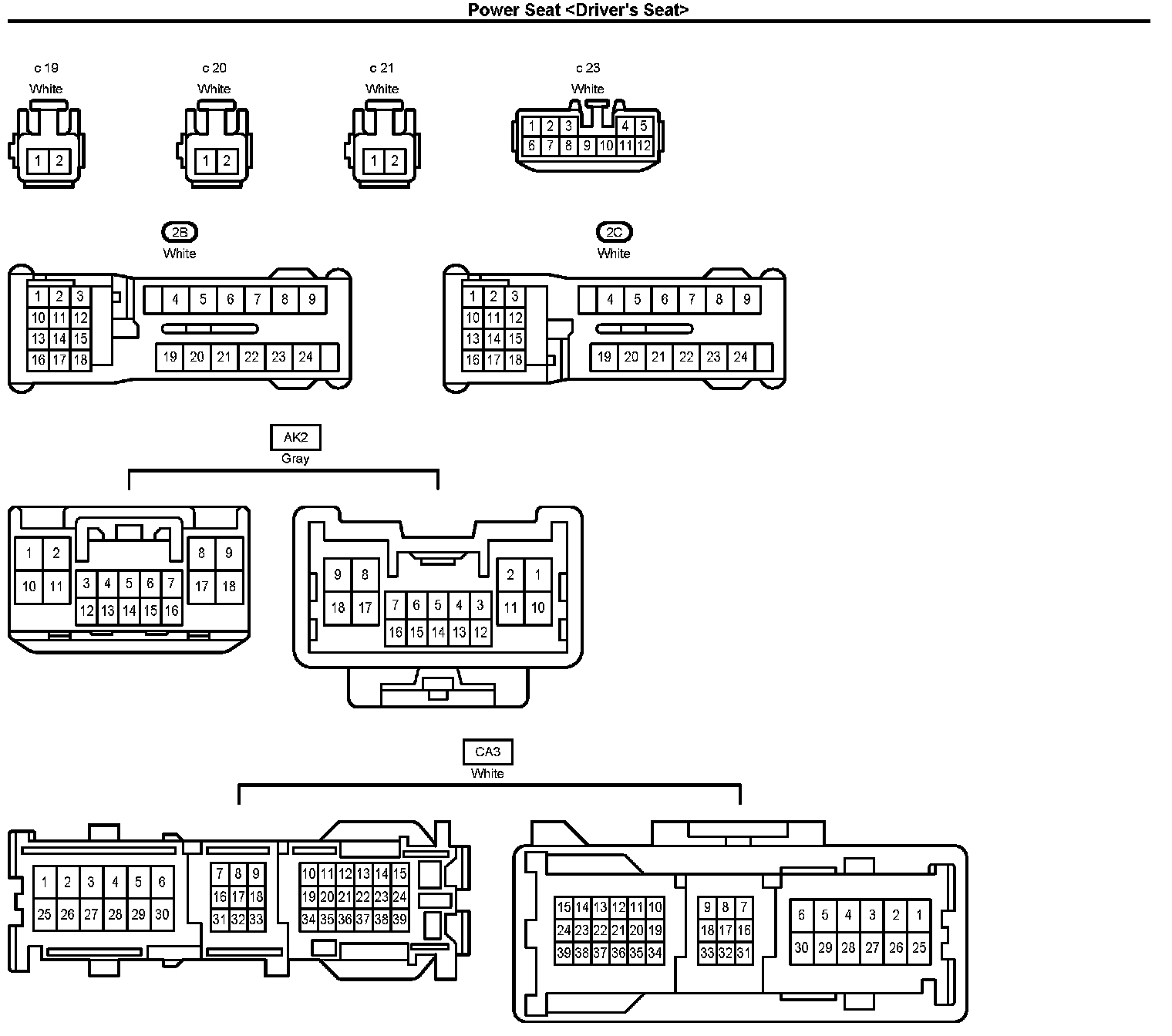

Connectors Part 2:

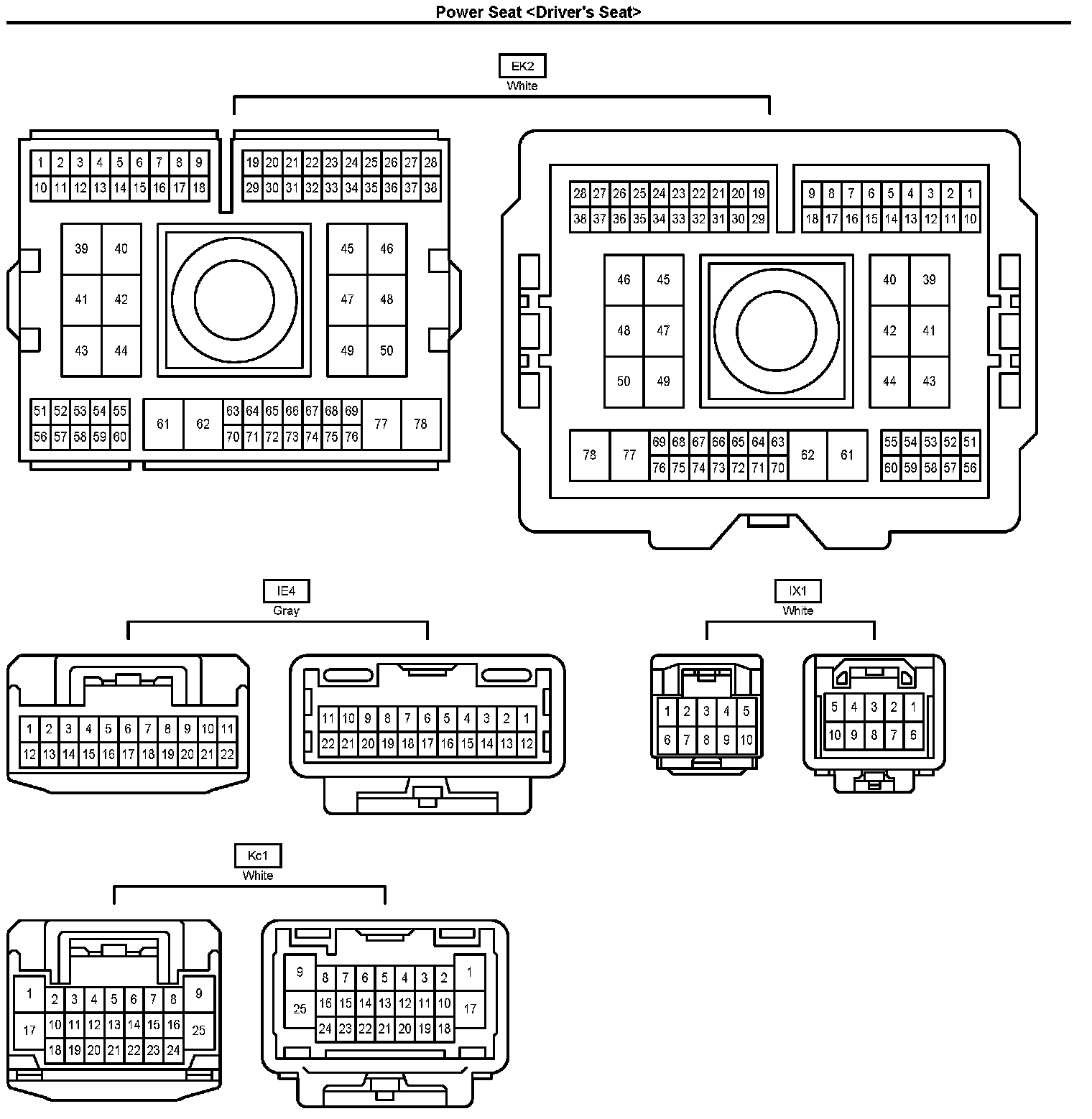

Connectors Part 3:

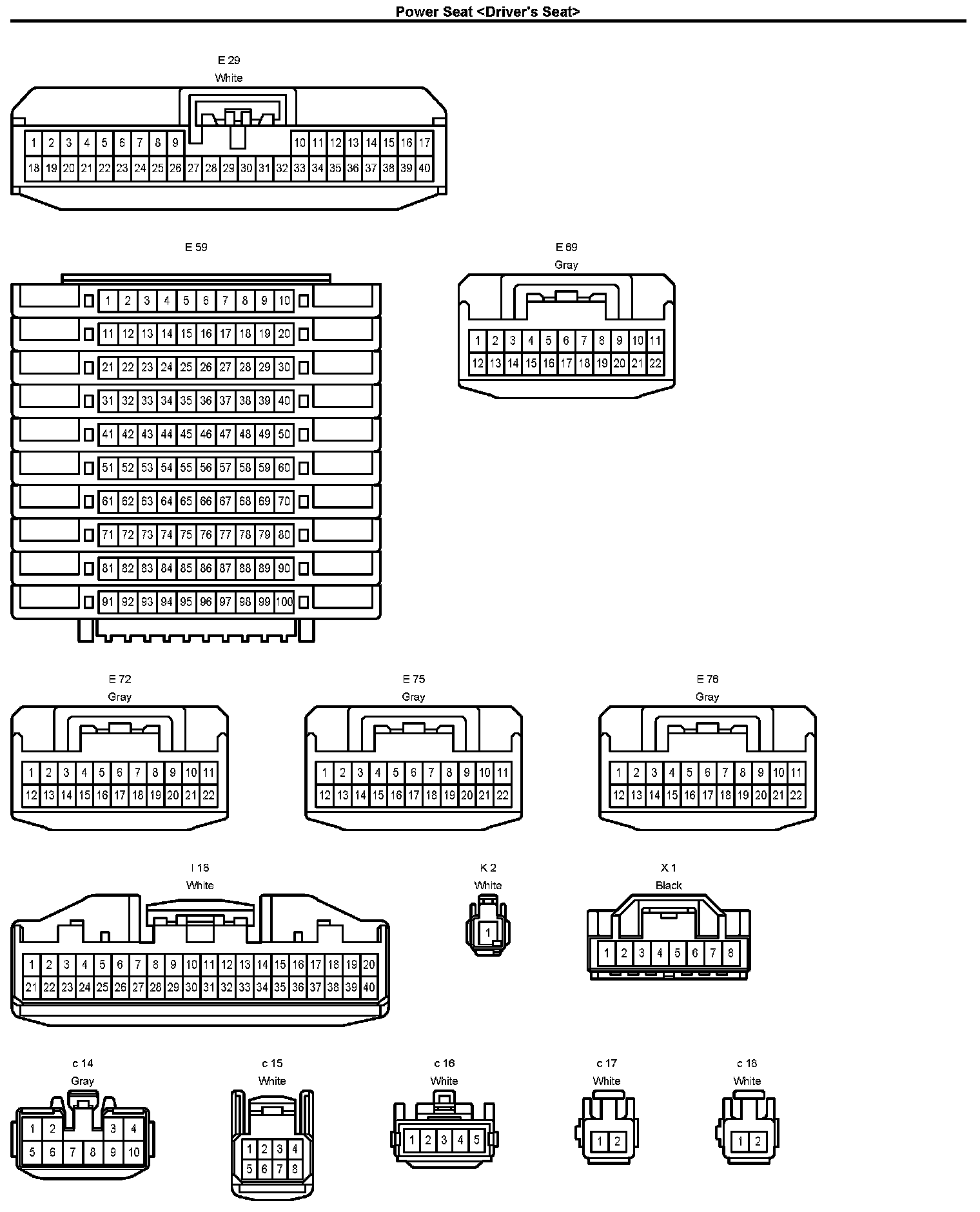

Connectors Part 4:

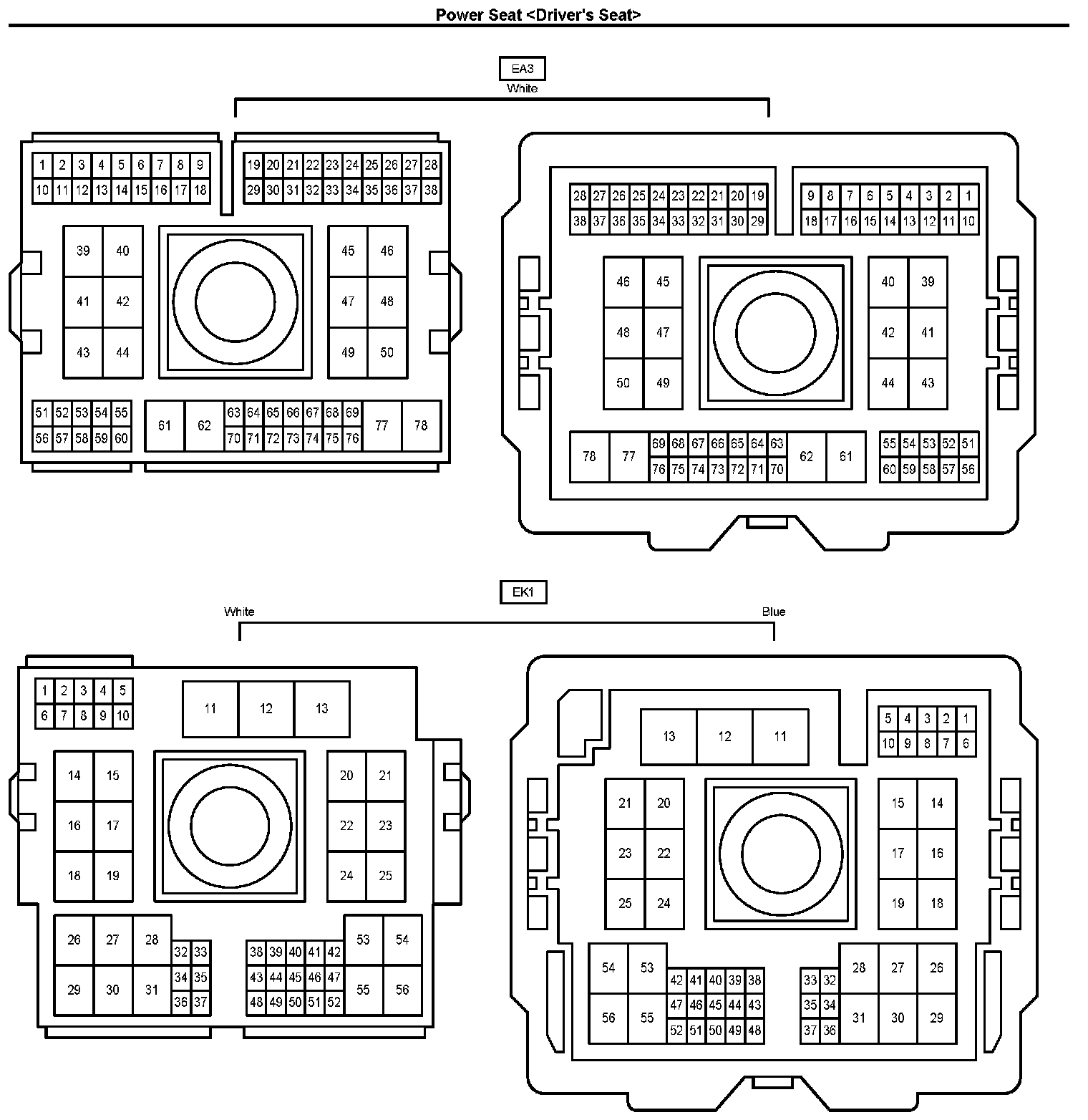

Connectors Part 5:






Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
