Removal

POWER OUTLETS (INT): POWER OUTLET SOCKET: REMOVAL

1. REMOVE NO. 2 INSTRUMENT PANEL FINISH PANEL CUSHION Removal

2. REMOVE LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY LH Removal

3. REMOVE NO. 1 INSTRUMENT PANEL FINISH PANEL CUSHION Removal

4. REMOVE LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY RH Removal

5. REMOVE LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY Removal

6. REMOVE POWER OUTLET SOCKET ASSEMBLY

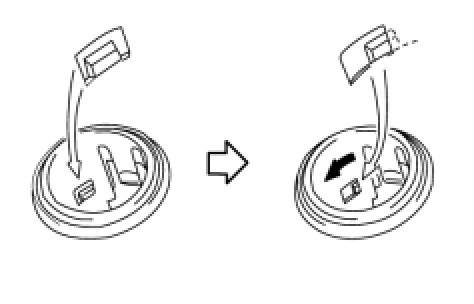

(a) Rotate the socket to disengage the notch.

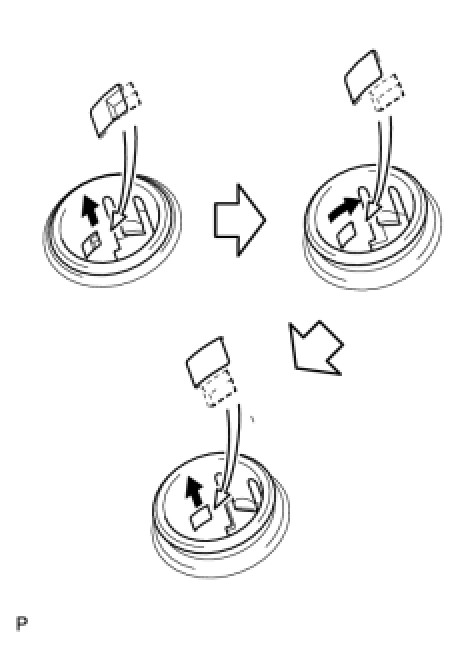

(b) Pull out the socket halfway and rotate the socket until its protrusion is aligned with the groove of the cover. Then remove the power outlet socket.





7. REMOVE POWER OUTLET SOCKET COVER

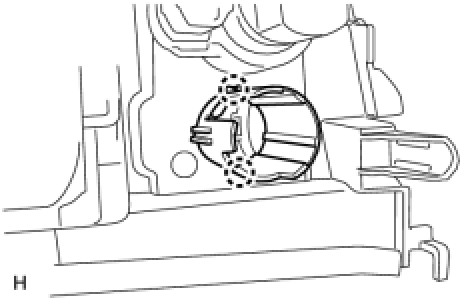

(a) Detach the 2 claws and remove the cover.
