Steering Lock Motor Drive Power Circuit
STEERING COLUMN: STEERING LOCK SYSTEM: Steering Lock Motor Drive Power Circuit
- Steering Lock Motor Drive Power Circuit
DESCRIPTION
The main body ECU supplies the power to activate the motor of the steering lock ECU.
The diagnosis information of the steering lock ECU is transmitted to the Techstream via the certification ECU as the steering lock ECU is not connected to the CAN communication system.
WIRING DIAGRAM
INSPECTION PROCEDURE
HINT
When the engine switch is off, the main body ECU may occasionally go into a non-active state called sleep mode. Therefore, before proceeding with the inspection, it is necessary to perform the following steps to wake up the ECU:
With the engine switch off, open the driver door. Then (with the engine switch still off) open and close any door several times at 1.5 second intervals.
PROCEDURE
1. CHECK FOR DTC OUTPUT
(a) Check for DTCs Reading and Clearing Diagnostic Trouble Codes.
OK:
DTC output does not occur.
NG -- REFER TO DIAGNOSTIC TROUBLE CODE CHART Steering Lock System
OK -- Continue to next step.
2. READ VALUE USING TECHSTREAM
(a) Connect the Techstream to the DLC3.
(b) Turn the engine switch on (IG) and turn the Techstream on.
(c) Select the item "Lock/Unlock Receive" in the Data List within 10 seconds of starting the engine and read the value displayed on the Techstream.
Smart Key
OK:
YES is displayed on the Techstream screen.
NG -- READ VALUE USING TECHSTREAM
OK -- Continue to next step.
3. CHECK STEERING LOCK ECU
(a) Measure the resistance and voltage according to the value(s) in the table below.
Standard Resistance:
Standard Voltage
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.
4. CHECK STEERING LOCK ECU

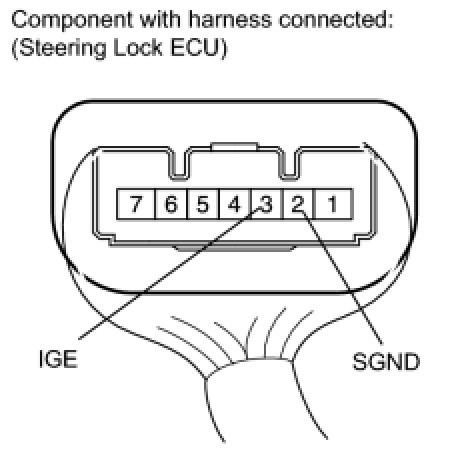

(a) Immediately after turning the engine switch on (IG), inspect the voltage between terminals 3 (IGE) and 2 (SGND) of the steering lock ECU.
Result
B -- REPAIR OR REPLACE HARNESS OR CONNECTOR
A -- REPLACE STEERING LOCK ACTUATOR ASSEMBLY (STEERING LOCK ECU) Removal
5. READ VALUE USING TECHSTREAM
(a) Connect the Techstream to the DLC3.
(b) Turn the engine switch on (IG) and turn the Techstream on.
(c) Select the item "S Code Check" in the Data List and read the value displayed on the Techstream.
Smart Key
Result
B -- READ VALUE USING TECHSTREAM
A -- Continue to next step.
6. CHECK OPERATION OF ID CODE BOX
(a) Replace the ID code box with a new one Removal.
NOTICE:
When replacing the ID code box, registration must be performed according to the "Registration" procedures Engine Immobiliser System (W/ Smart Key System).
(b) Reconfirm the item "S Code Check" in the Data List and read the value displayed on the Techstream.
Smart Key
Result
B -- REPLACE ID CODE BOX Removal
A -- REPLACE ECU AGGREGATION BOX ASSEMBLY (CERTIFICATION ECU) Removal
7. READ VALUE USING TECHSTREAM
(a) Connect the Techstream to the DLC3.
(b) Turn the engine switch on (IG) and turn the Techstream on.
(c) Select the item "L Code Check" in the Data List and read the value displayed on the Techstream.
Smart Key
Result
B -- CHECK OPERATION OF STEERING LOCK ECU
A -- Continue to next step.
8. CHECK OPERATION OF ID CODE BOX
(a) Replace the ID code box with a new one Removal.
NOTICE:
When replacing the ID code box, registration must be performed according to the "Registration" procedures Engine Immobiliser System (W/ Smart Key System).
(b) Reconfirm the item "L Code Check" in the Data List and read the value displayed on the Techstream.
Smart Key
Result
B -- REPLACE ID CODE BOX Removal
A -- Continue to next step.
9. CHECK OPERATION OF STEERING LOCK ECU
(a) Replace the steering lock ECU with a new one Removal.
NOTICE:
When replacing the steering lock ECU, registration must be performed according to the "Registration" procedures Engine Immobiliser System (W/ Smart Key System).
(b) Turn the engine switch on (IG).
(c) Check the steering lock.
OK:
Steering lock is released and engine starts.
NG -- REPLACE ECU AGGREGATION BOX ASSEMBLY (CERTIFICATION ECU) Removal
OK -- REPLACE STEERING LOCK ACTUATOR ASSEMBLY (STEERING LOCK ECU) Removal
