Installation

2GR-FE ENGINE CONTROL SYSTEM: CAMSHAFT OIL CONTROL VALVE: INSTALLATION

1. INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY

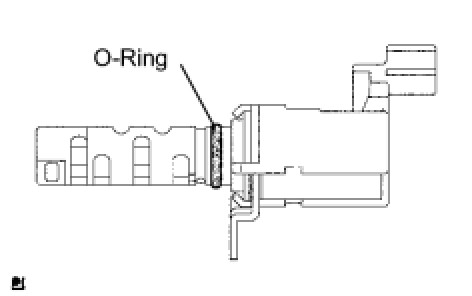

(a) Apply a light coat of engine oil to new 4 O-rings of the oil control valves.





(b) Install the O-rings to the 4 oil control valves.

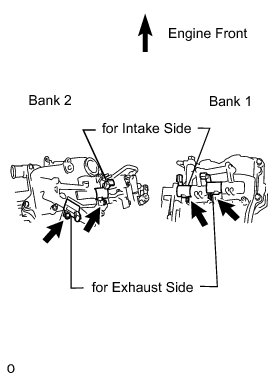

(c) Install the 4 oil control valves with the 4 bolts.





Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

NOTICE:
Make sure that the O-ring is not cracked or jammed.

(d) Connect the 4 oil control valve connectors.

2. CHECK FOR ENGINE OIL LEAKS

(a) Start the engine, and check that there are no oil leaks.

3. INSTALL V-BANK COVER SUB-ASSEMBLY Installation
