Service Data

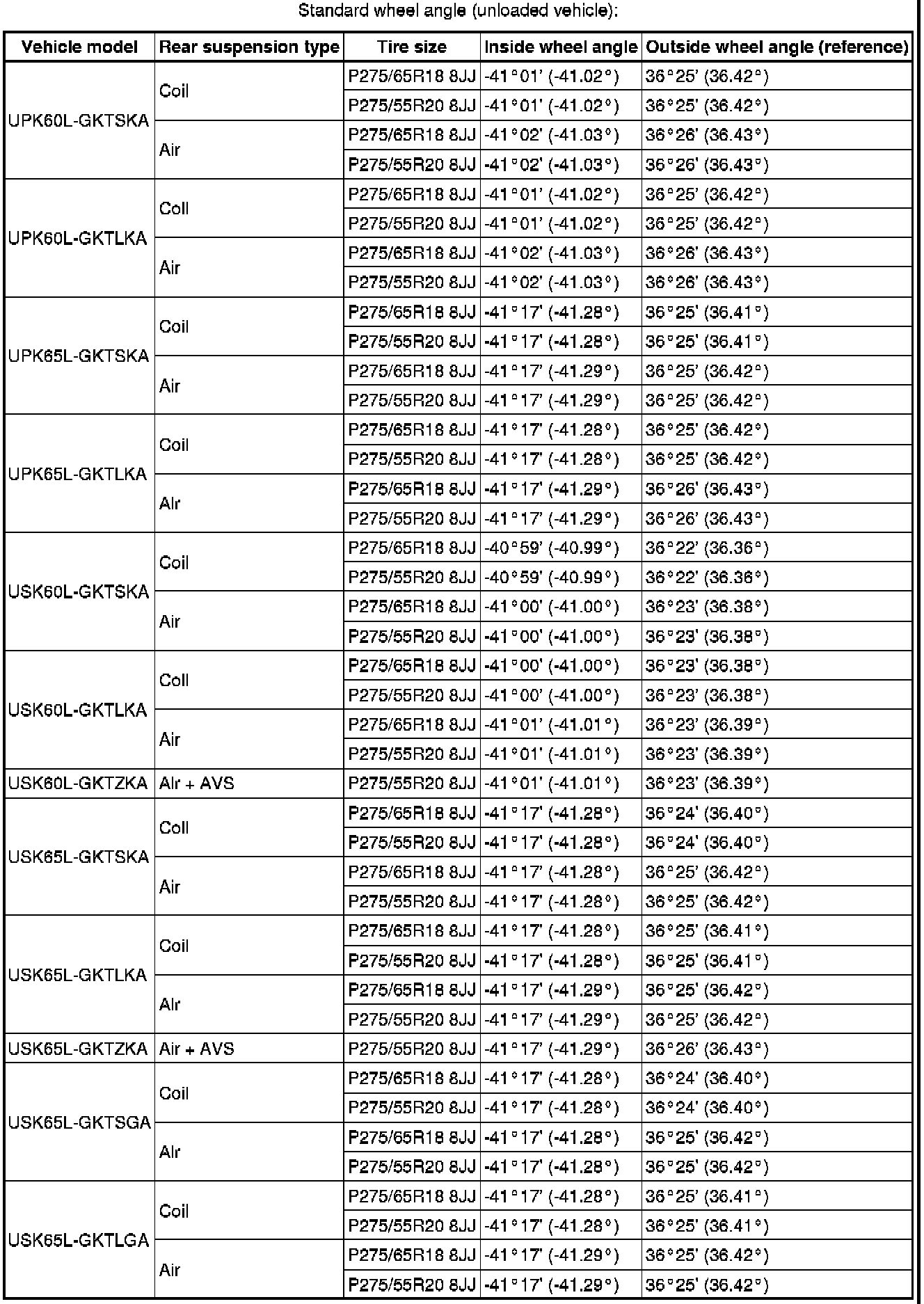

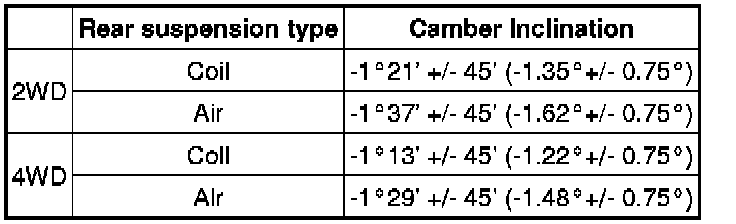

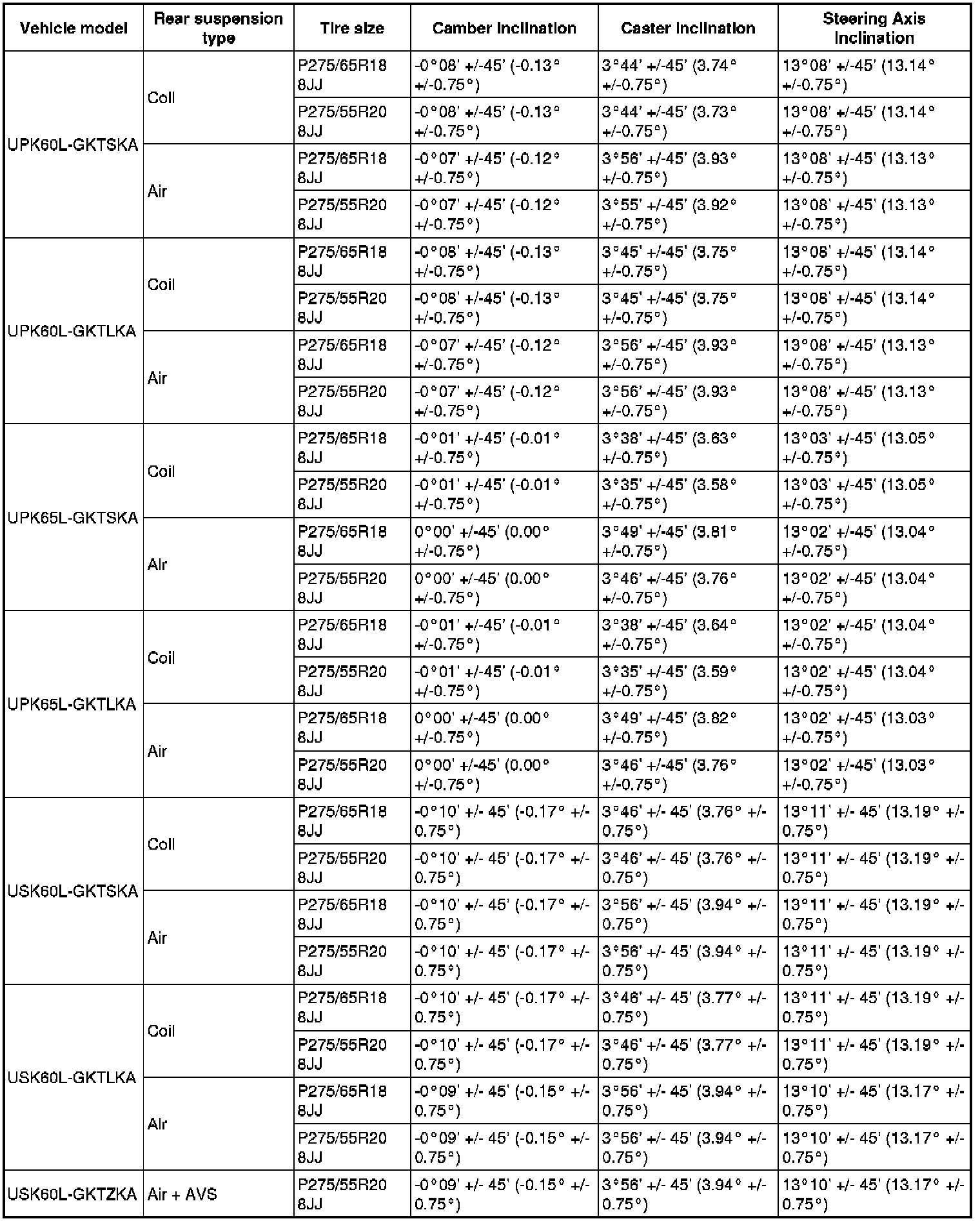

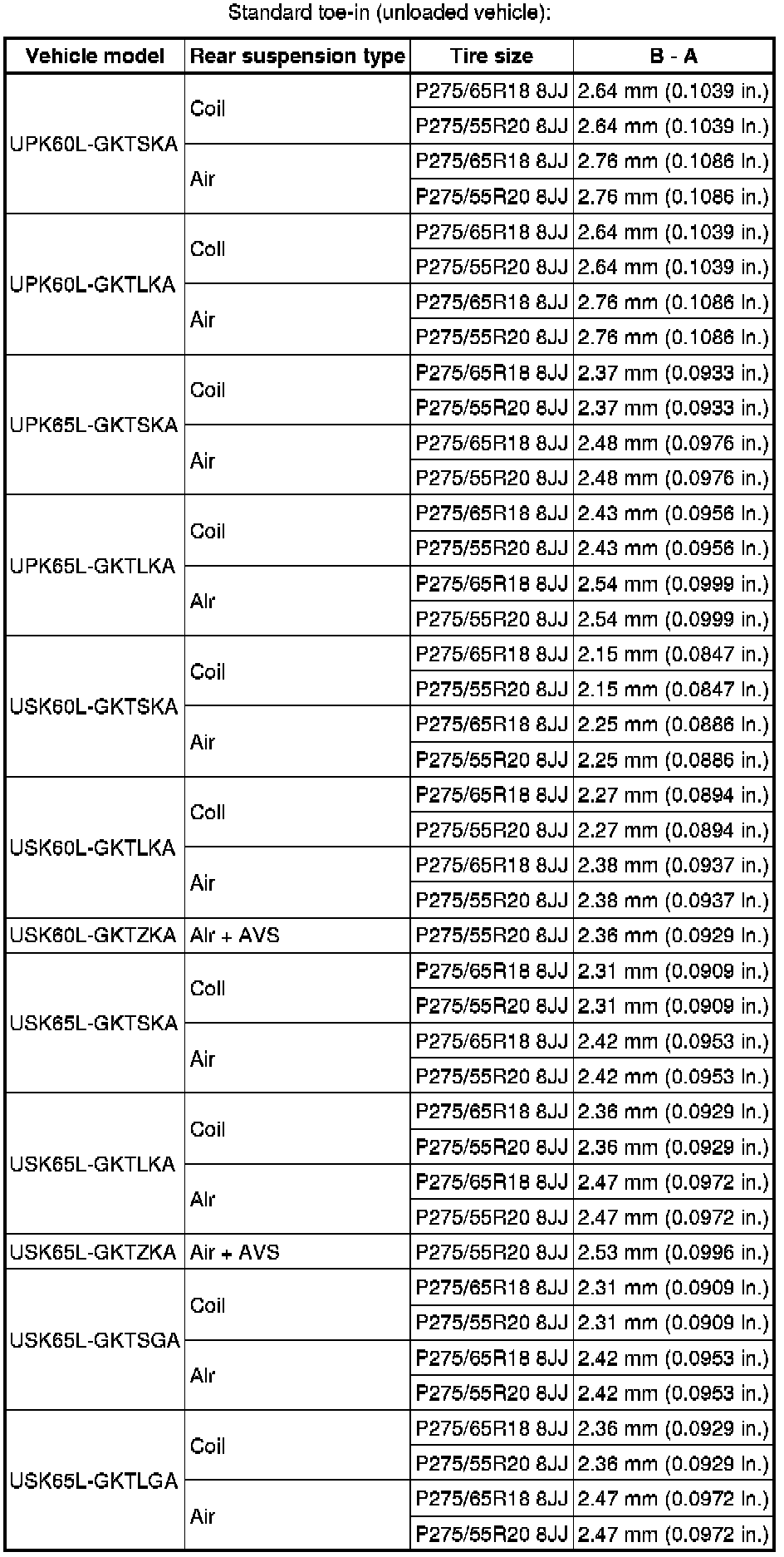

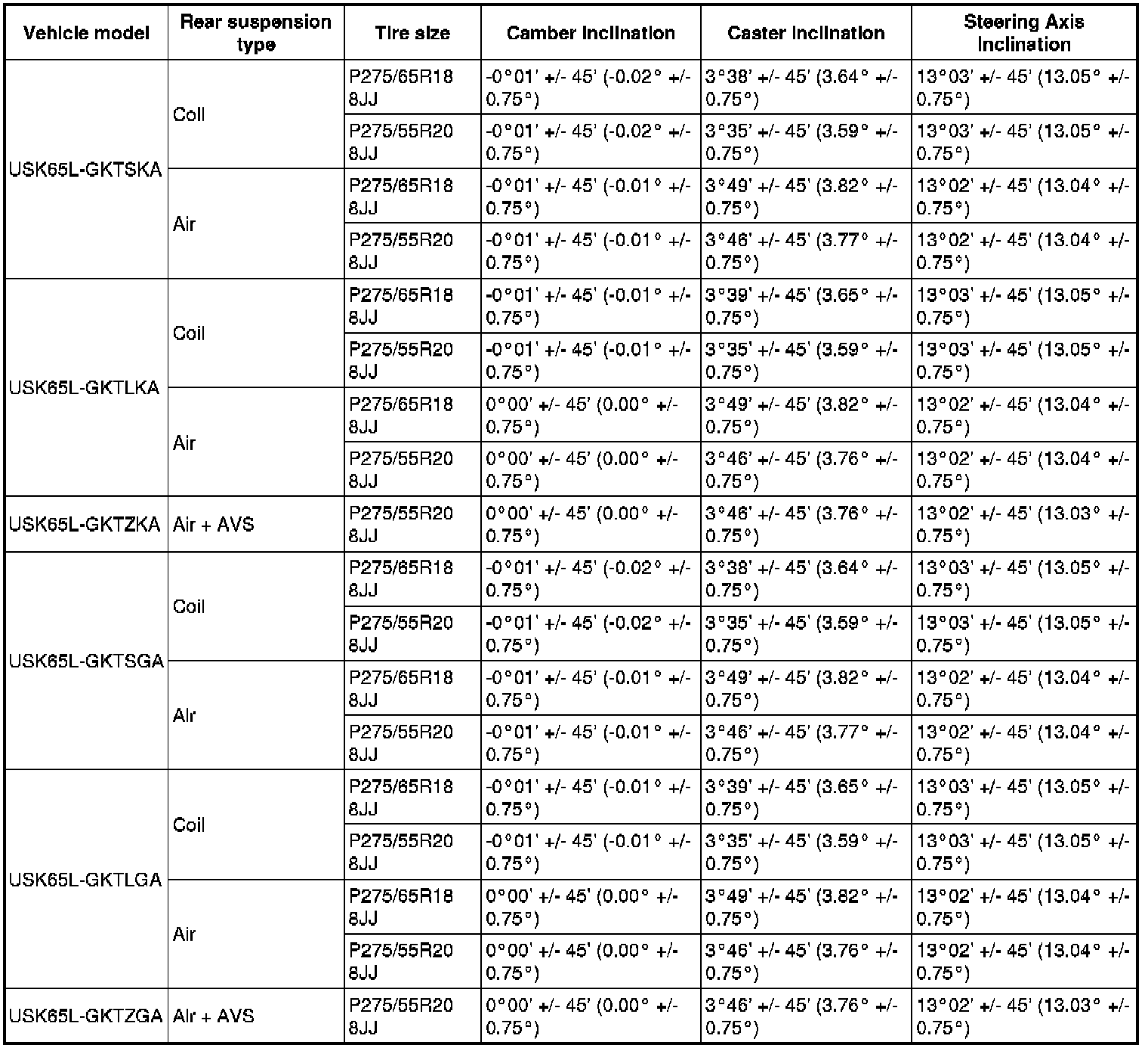

SPECIFICATIONS: ALIGNMENT / HANDLING DIAGNOSIS: SERVICE DATA

MEASURE VEHICLE HEIGHT

NOTICE:
Before inspecting the wheel alignment, adjust the vehicle height to the specification.





(a) Press down on the vehicle several times to stabilize the suspension, and then measure the vehicle height.

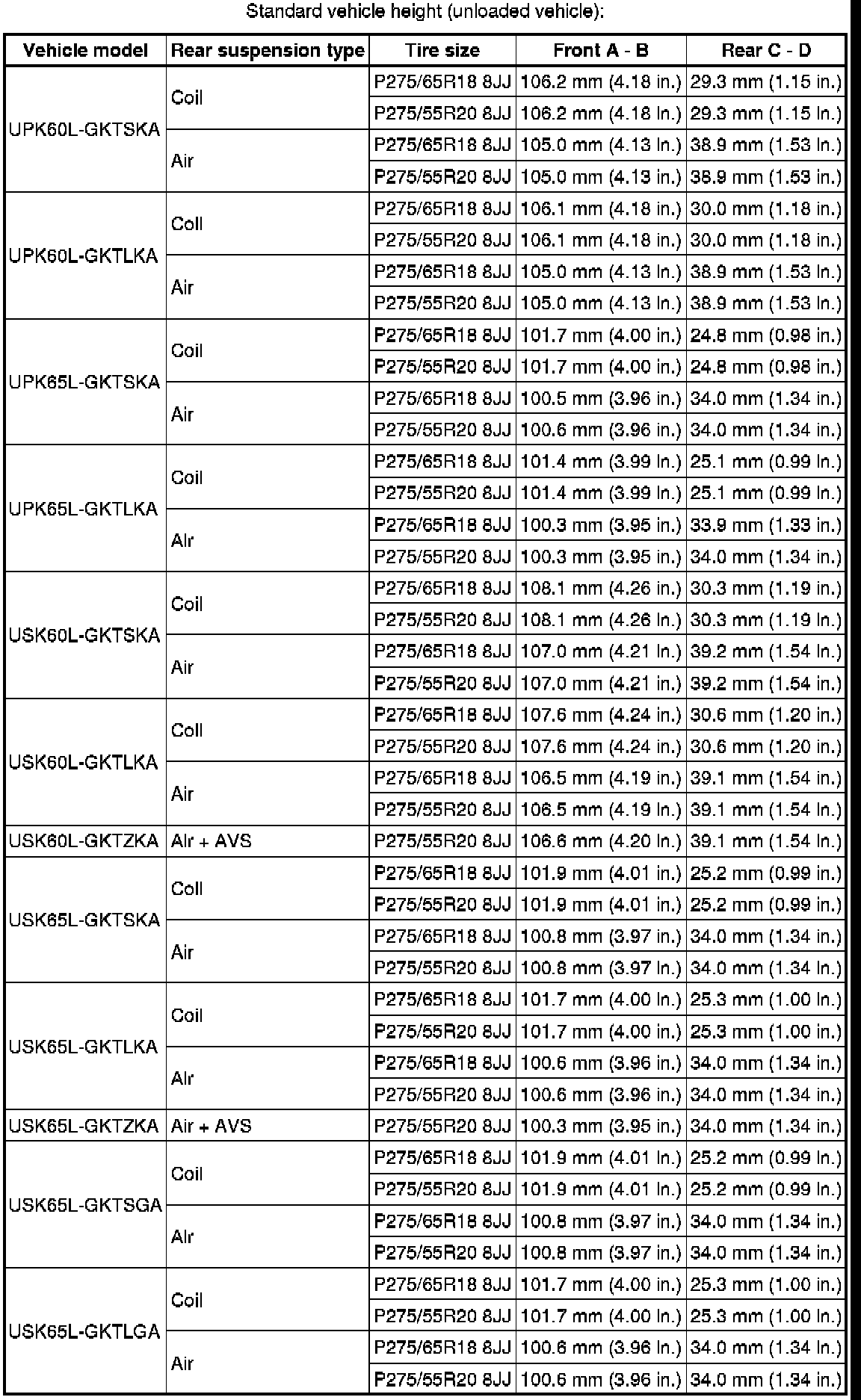

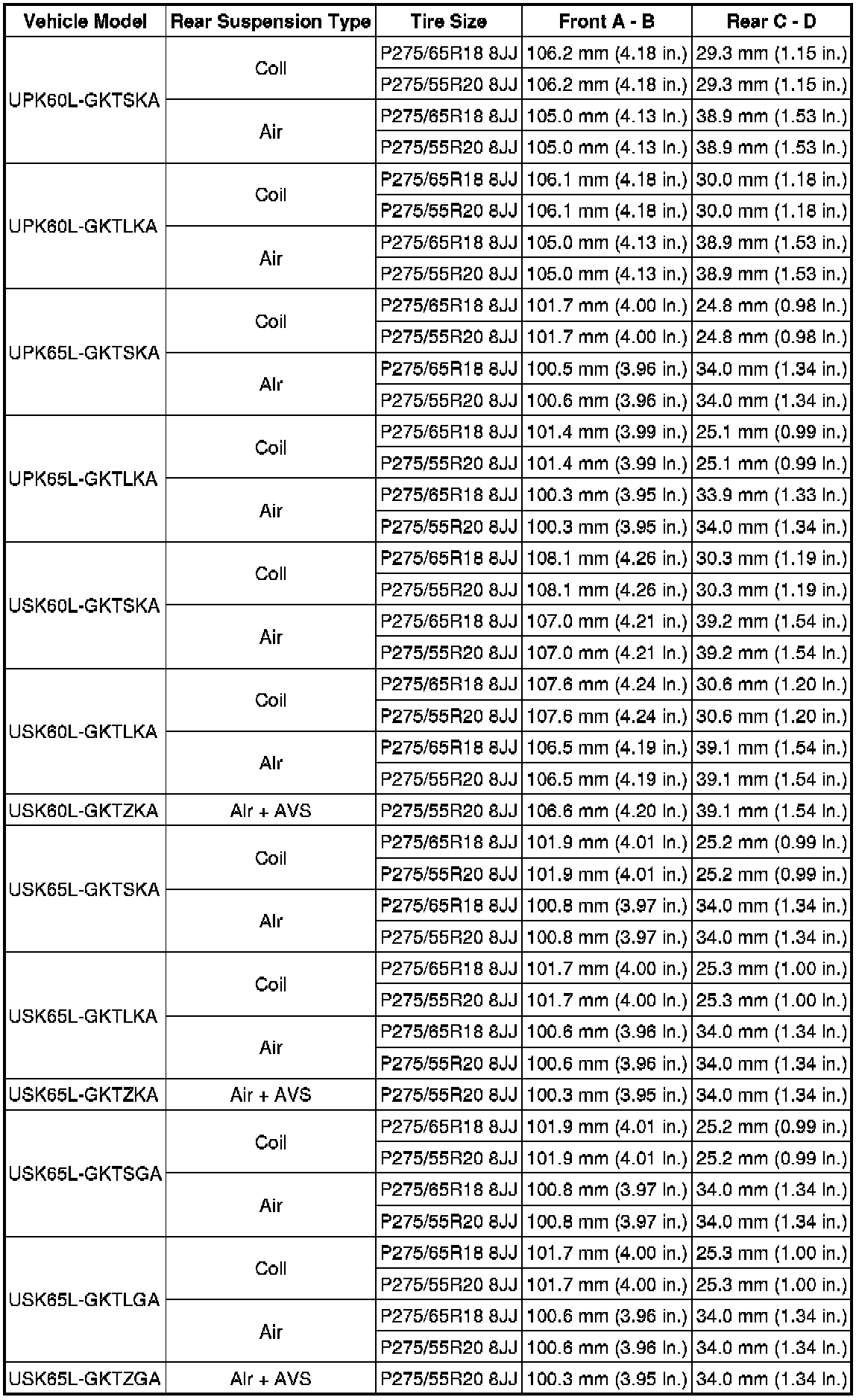

Standard Vehicle Height (Unloaded Vehicle):

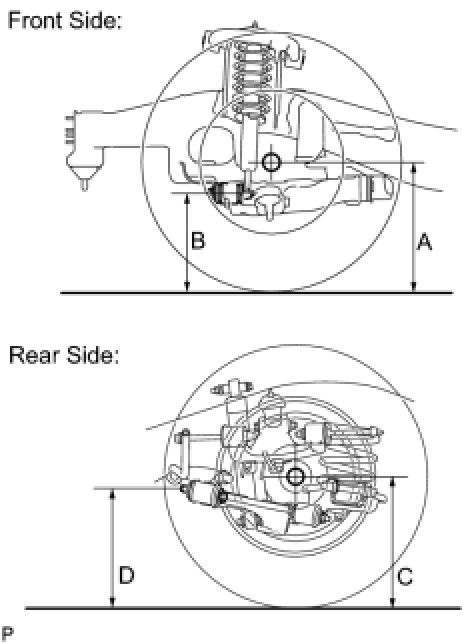

* Measuring points

A:

Ground clearance of the front drive shaft center

B:

Ground clearance of the front adjusting cam bolt center

C:

Ground clearance of the rear drive shaft center

D:

Ground clearance of the rear lower arm No. 1 adjusting cam bolt center

(b) If the vehicle height is not as specified, adjust the height by pressing down on the vehicle several times to stabilize the suspension.
