Map Disc Cannot be Ejected
NAVIGATION / MULTI INFO DISPLAY: NAVIGATION SYSTEM (w/o USB Audio System): Map Disc cannot be Ejected
- Map Disc cannot be Ejected
INSPECTION PROCEDURE
PROCEDURE
1. CHECK NAVIGATION RECEIVER ASSEMBLY
(a) Turn the ignition switch to ACC.
(b) Press and hold the MAP eject switch for 5 seconds and check if the disc is ejected by forced ejection.
OK:
The disc is ejected.
NG -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Problem Symptoms Table
OK -- Continue to next step.
2. CHECK MAP DISC

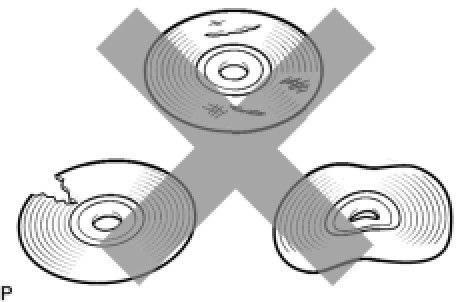

(a) Check that the map disc is not deformed or cracked.
OK:
No deformations or cracks in the map disc.
NG -- REPLACE MAP DISC
OK -- END
