Canada - Body - Power Back Door Initialization Procedure

Bulletin
3184

Issue Date
May 12, 2009

Market
Canada

Title:
INITIALIZATION OF POWER BACK DOOR DURING PDS

Component
General Information

Models
'10 Sienna

INTRODUCTION:
As a result of the removal of the Short Pin, the "automatic open and close" and "jam protection" functions of the power back door will be inoperative due to loss of the power back door position. Initialize the power back door after installing the Short Pin in its original location during Pre- Delivery Service (PDS).

NOTE:
Any time the battery terminal has been disconnected, the power back door MUST be reinitialized.

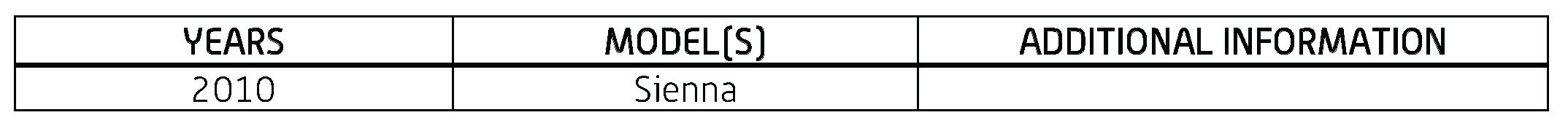

APPLICABLE VEHICLES:

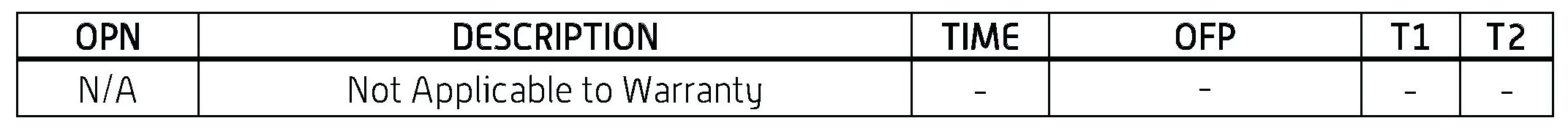

WARRANTY INFORMATION:







Overview

INITIALIZATION PROCEDURE:
1. Fully close the power back door if open.







2. Check that the power back door will fully open and fully close.

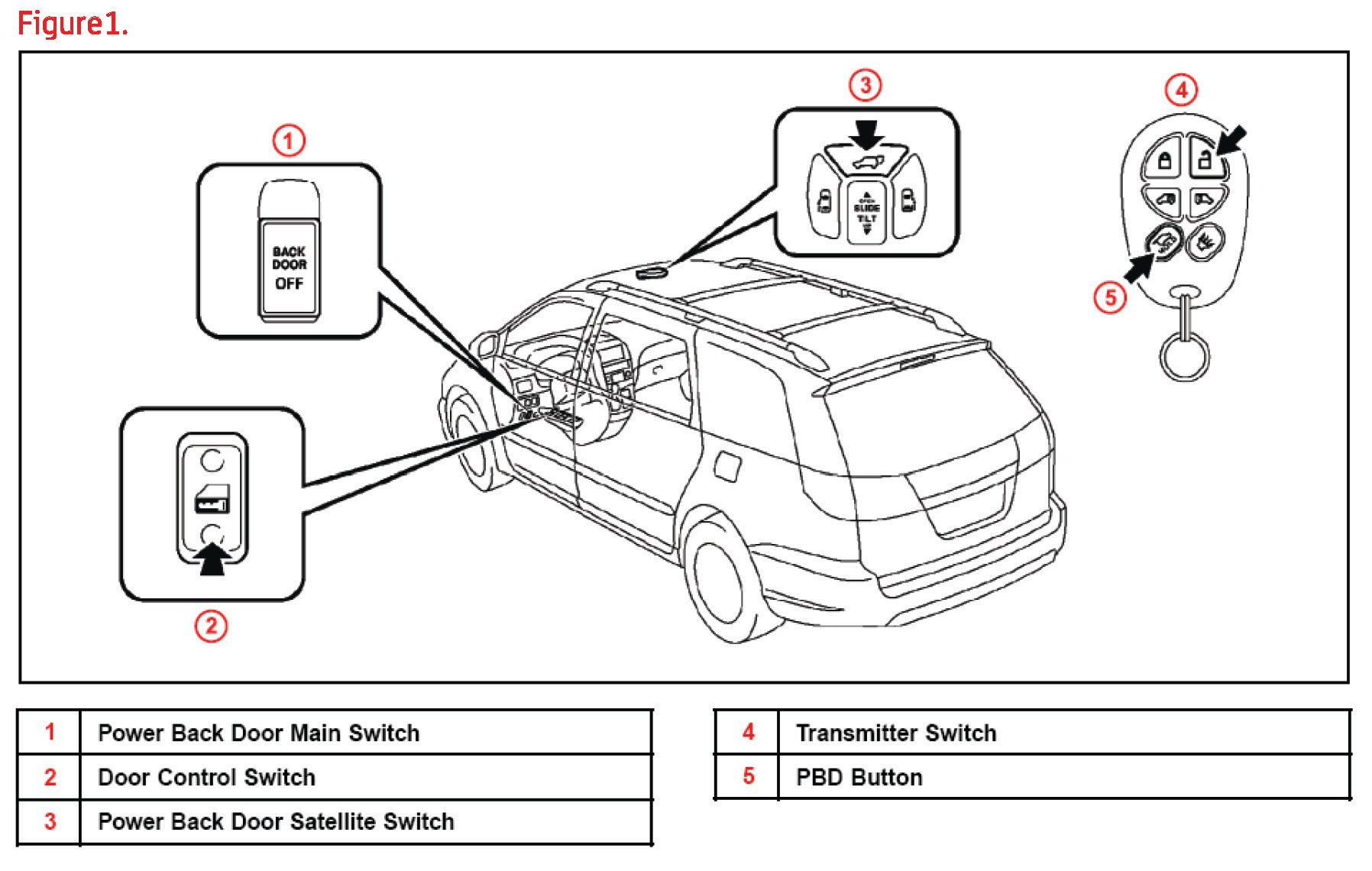

A. Unlock the power back door using the transmitter switch or the door control switch.
B. Turn the ignition switch to the "IG-OFF" position.
C. Check that the power back door main switch is in the "IG-ON" position.

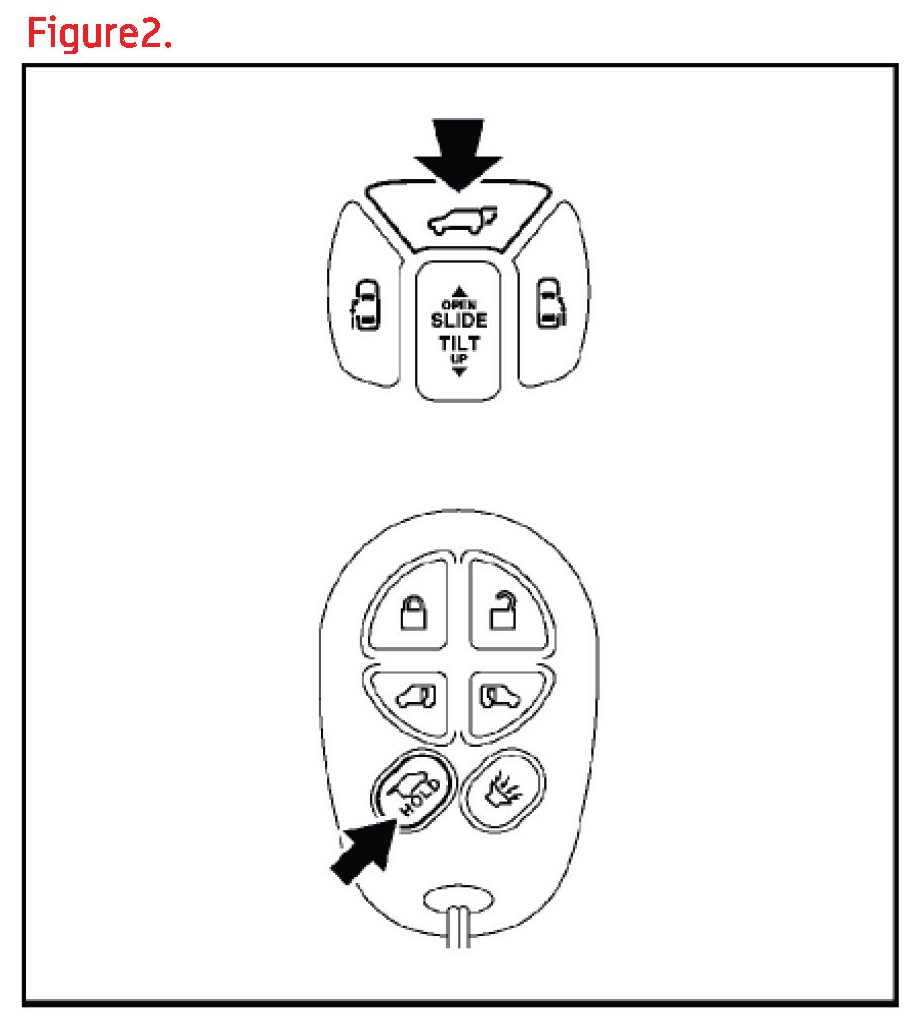

D. Check that the back door will fully open and fully close by pushing the power back door satellite switch or PBD button briefly.

NOTE:
Jam protection function becomes effective through the above initialization procedure.
