Power Window Control System (w/ Jam Protection Function)

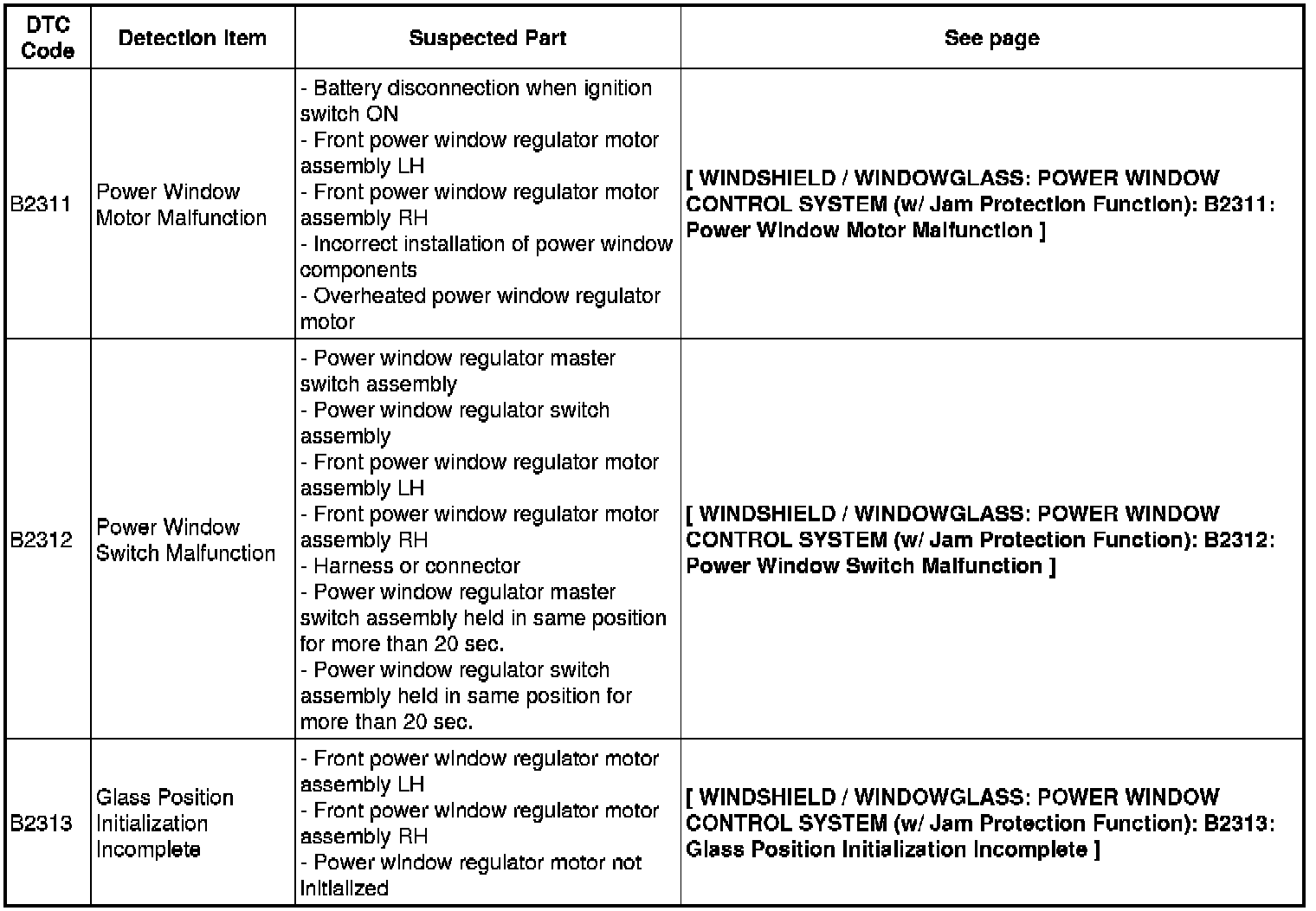

WINDSHIELD / WINDOWGLASS: POWER WINDOW CONTROL SYSTEM (w/ Jam Protection Function): DIAGNOSTIC TROUBLE CODE CHART

HINT
If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code. For details of the code, refer to the appropriate Diagnostic Trouble Code Test below.

B2311-B2313:
