Sound Signal Circuit Between Navigation Receiver Assembly and Stereo Jack Adapter





NAVIGATION: NAVIGATION SYSTEM (w/ USB Audio System): Sound Signal Circuit between Navigation Receiver Assembly and Stereo Jack Adapter
- Sound Signal Circuit between Navigation Receiver Assembly and Stereo Jack Adapter

DESCRIPTION

The No. 1 stereo jack adapter assembly sends an external device sound signal to the navigation receiver assembly through this circuit.

The sound signal that has been sent is amplified by the navigation receiver assembly and then is sent to the speakers.

If there is an open or short in the circuit, sound cannot be heard from the speakers even if there is no malfunction in the navigation receiver assembly or speakers.

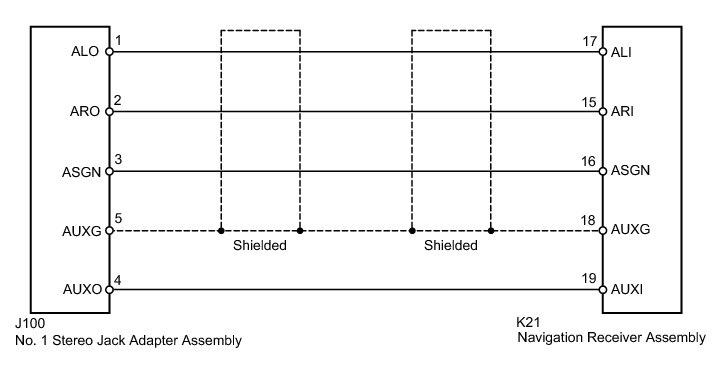

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (NAVIGATION RECEIVER - STEREO JACK ADAPTER)

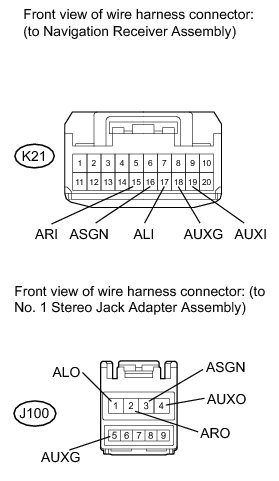

(a) Disconnect the K21 navigation receiver assembly connector.





(b) Disconnect the J100 No. 1 stereo jack adapter assembly connector.

(c) Measure the resistance according to the value(s) in the table below.

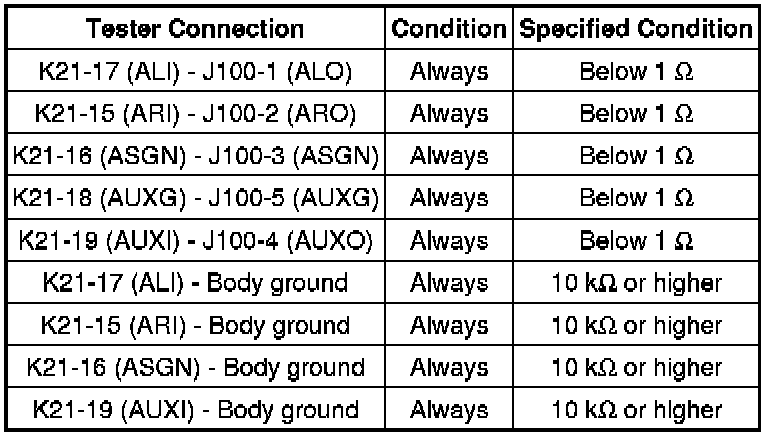

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Problem Symptoms Table
