Symptom Related Diagnostic Procedures
A750E AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMISSION SYSTEM: PROBLEM SYMPTOMS TABLE
HINT
* If a normal code is displayed during the diagnostic trouble code check although the trouble still occurs, check the electrical circuits for each symptom in the order given in the charts below.

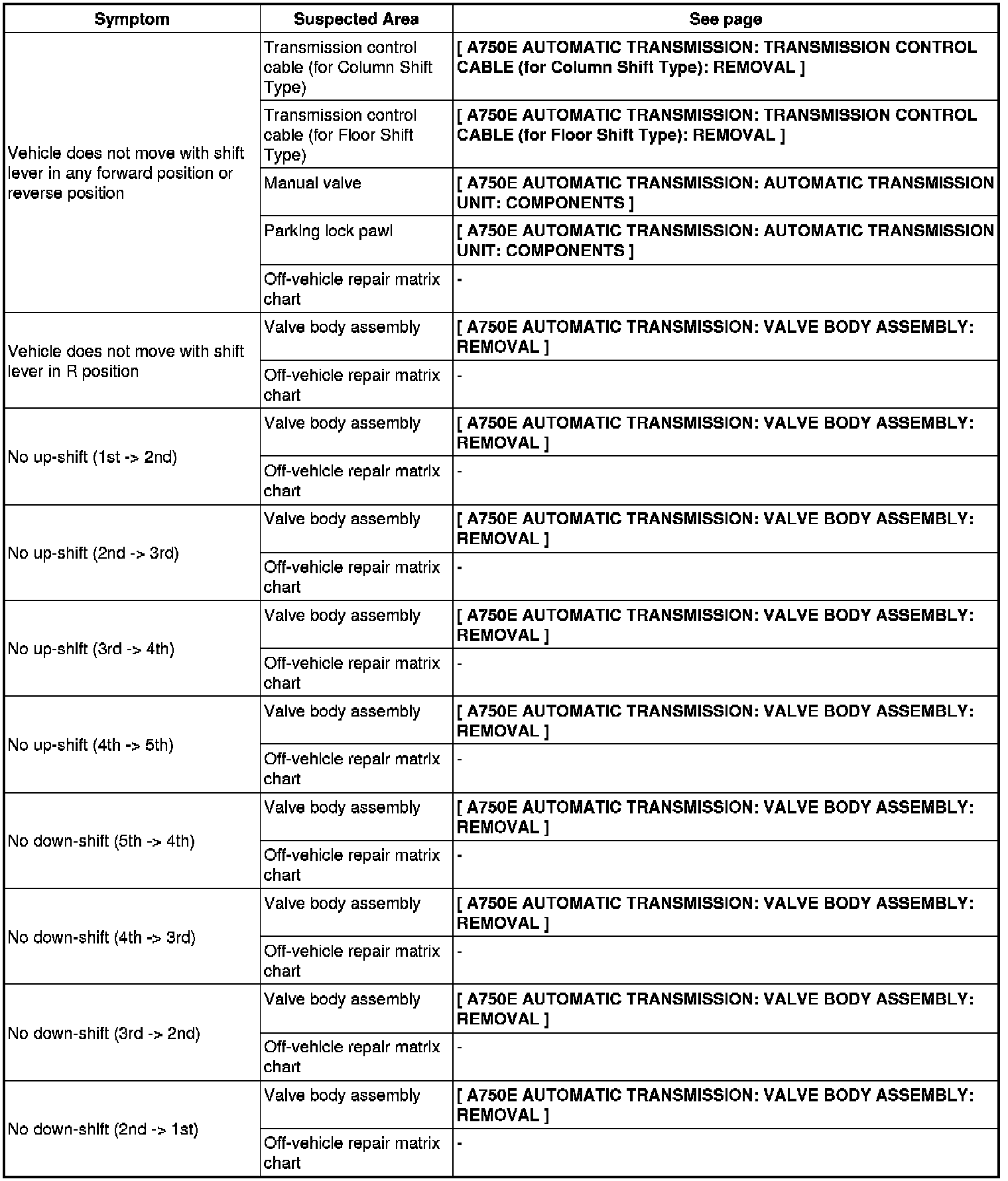

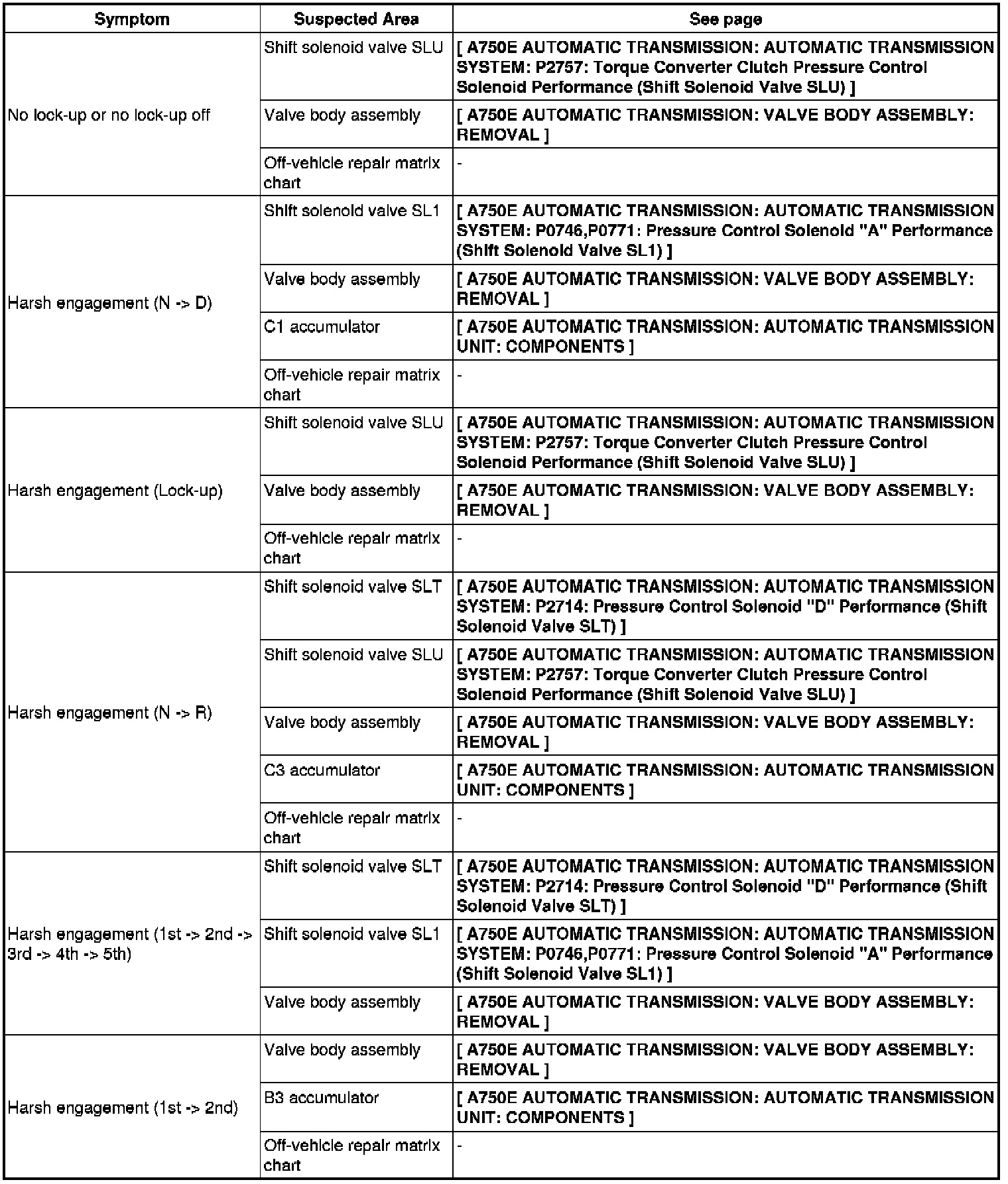

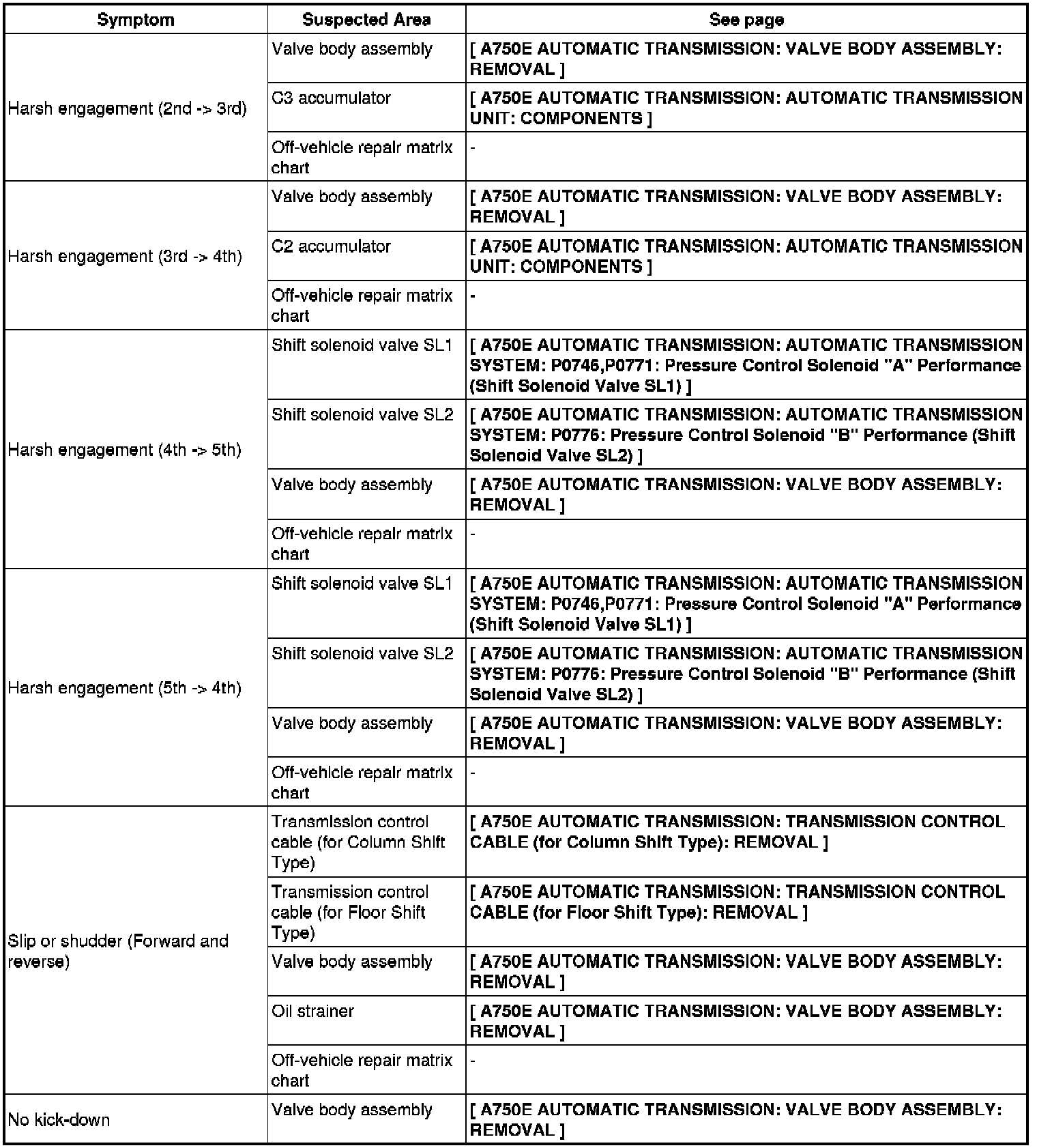

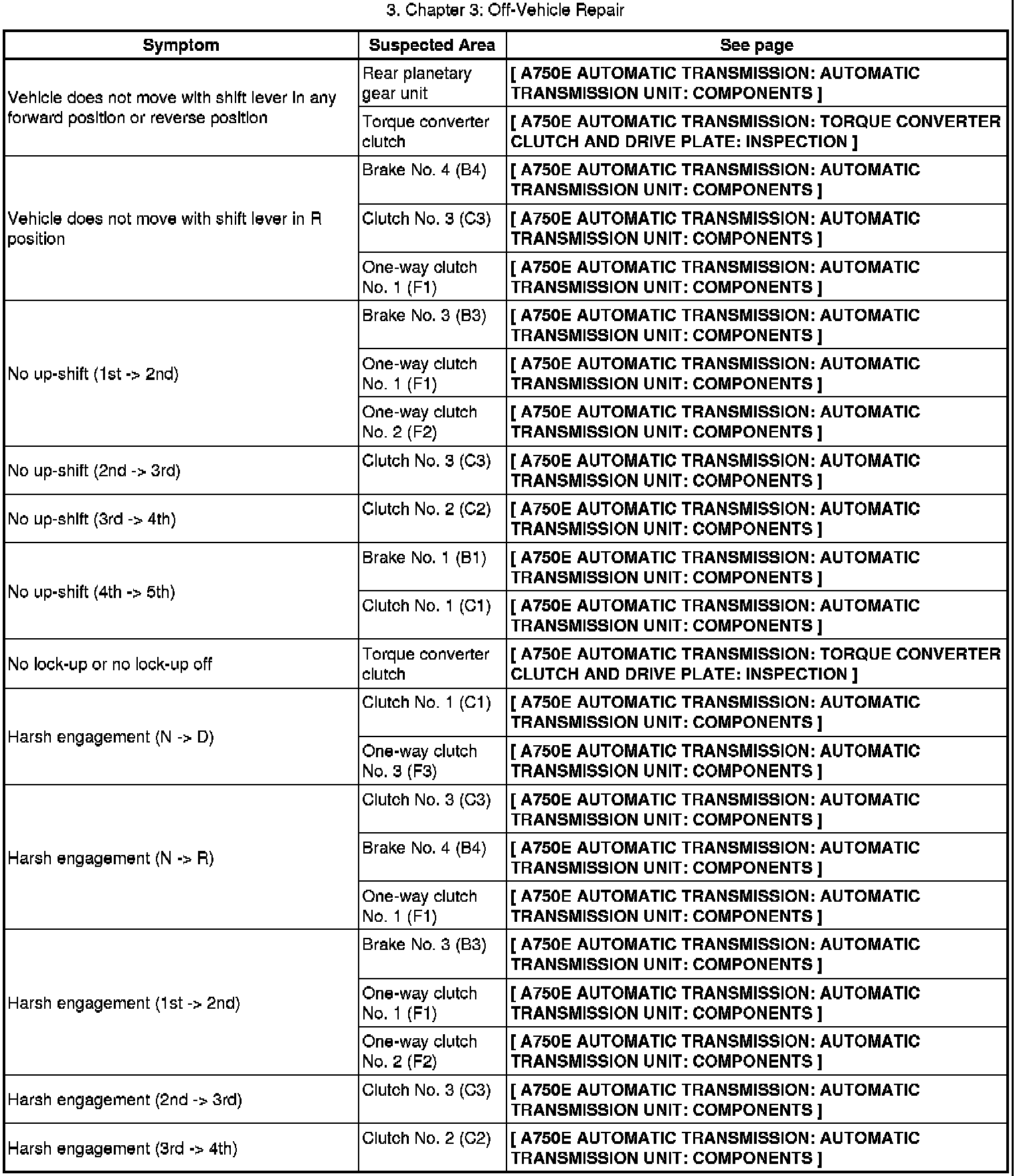

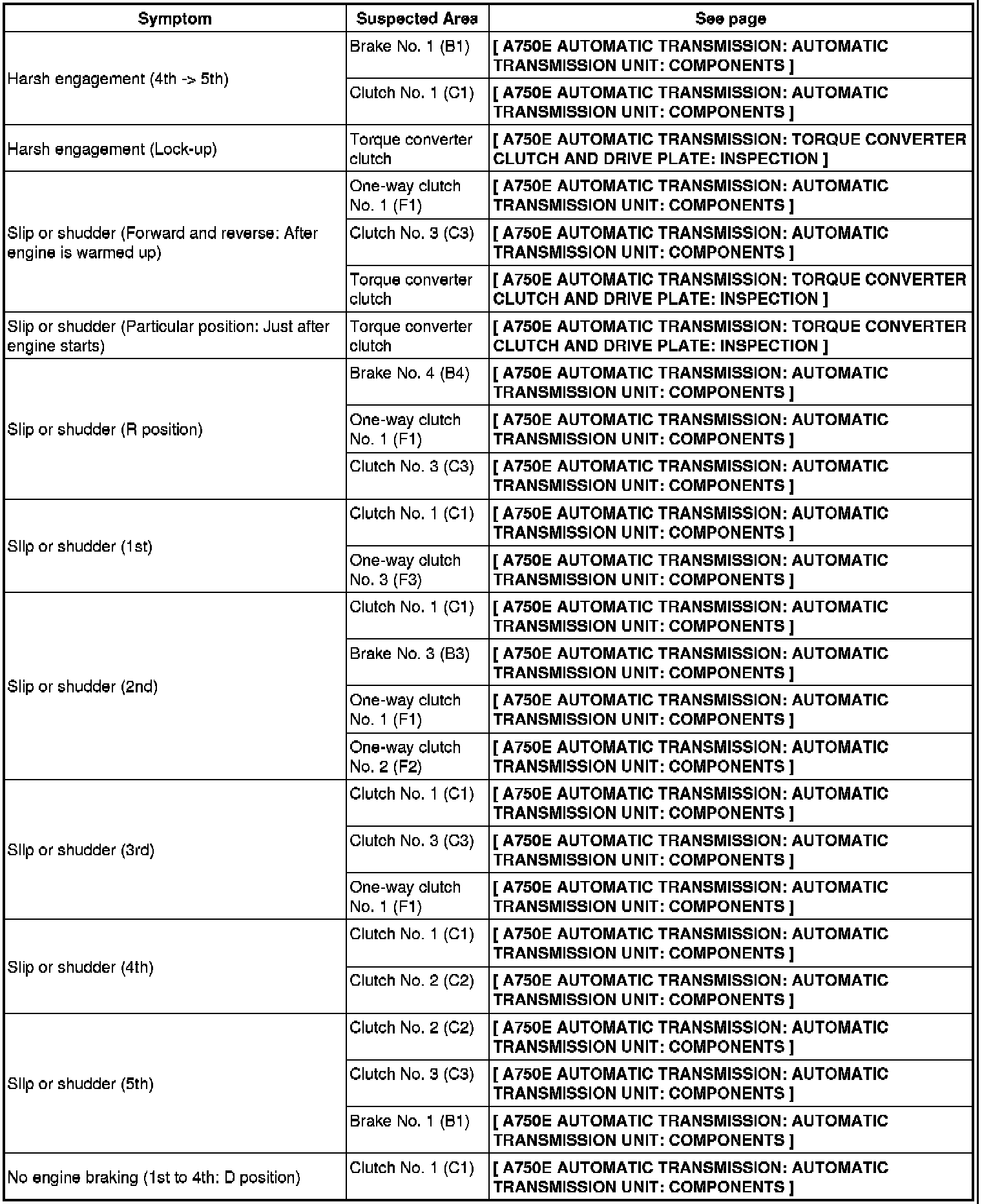

* The Matrix Chart is divided into 3 chapters.
* Chapter 1:

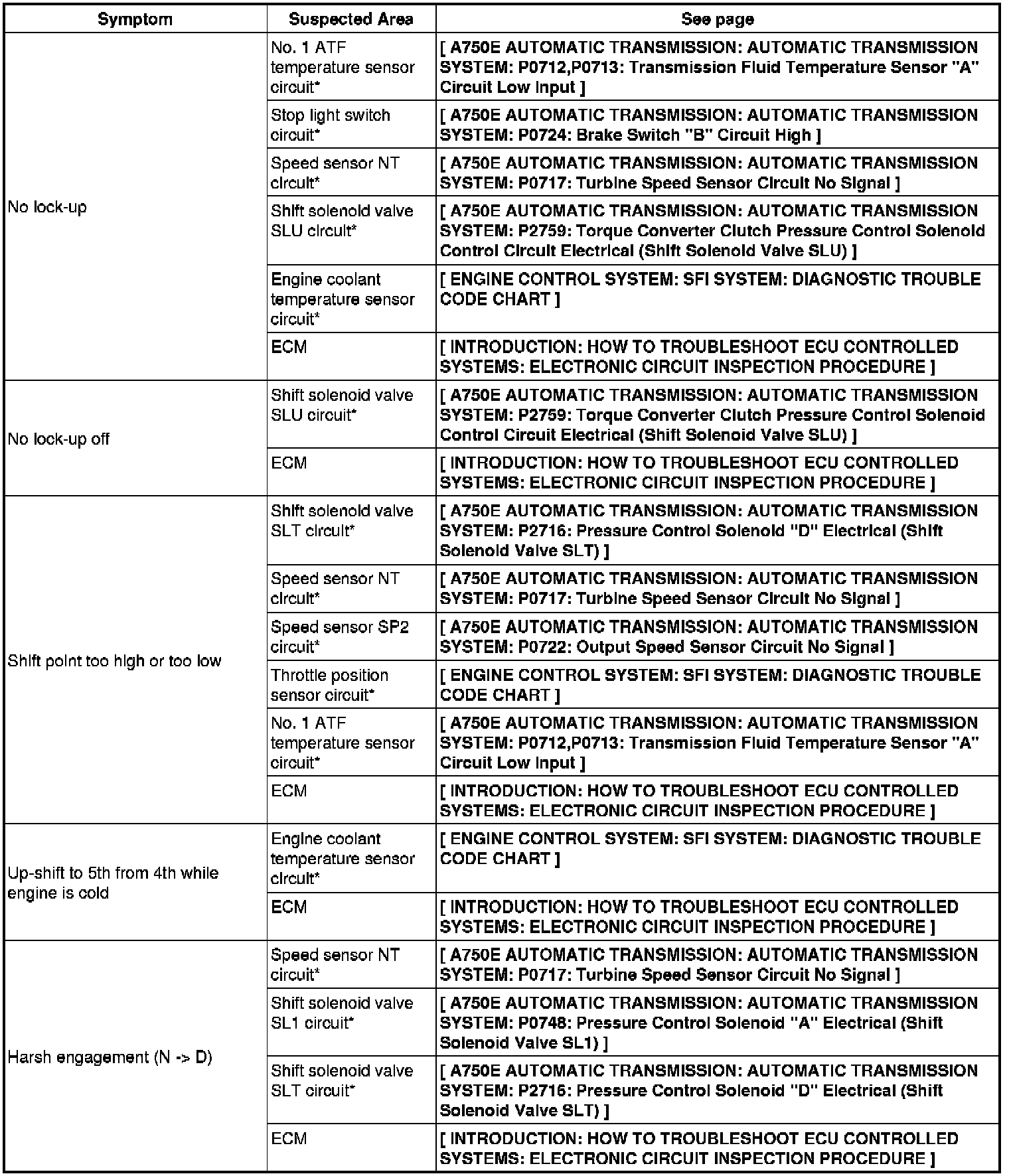

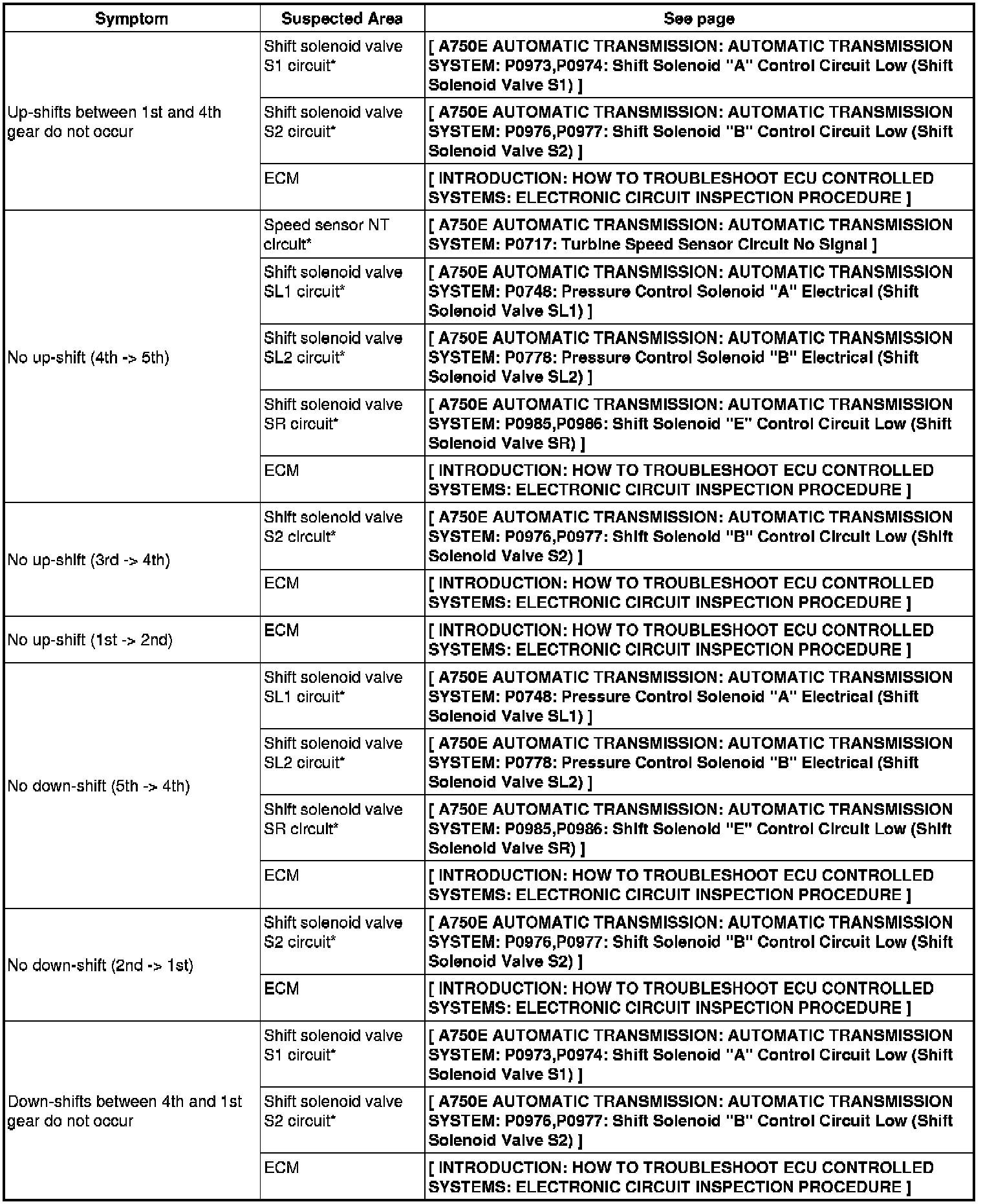

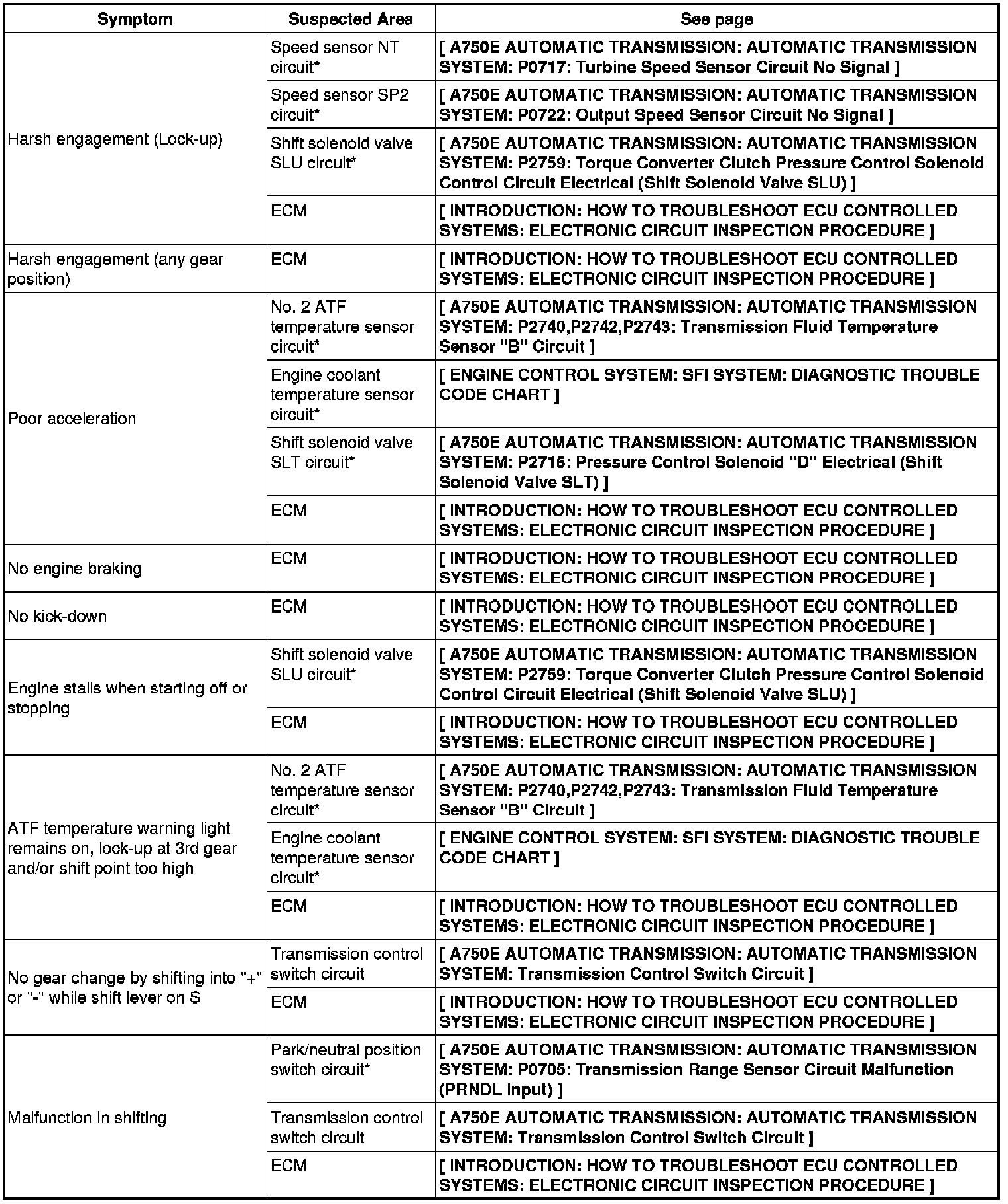

* Refer to the table below when the cause of the trouble is considered to be electrical.
* If the instruction "PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE" is given in the flowchart of a circuit, proceed to the next circuit in the table to continue the check.
* If the trouble still occurs even though there are no abnormalities in any of the other circuits, check and replace the ECM.
* *: When the circuit is defective, a DTC may be output.
