Power Window Control System (w/ Jam Protection Function)

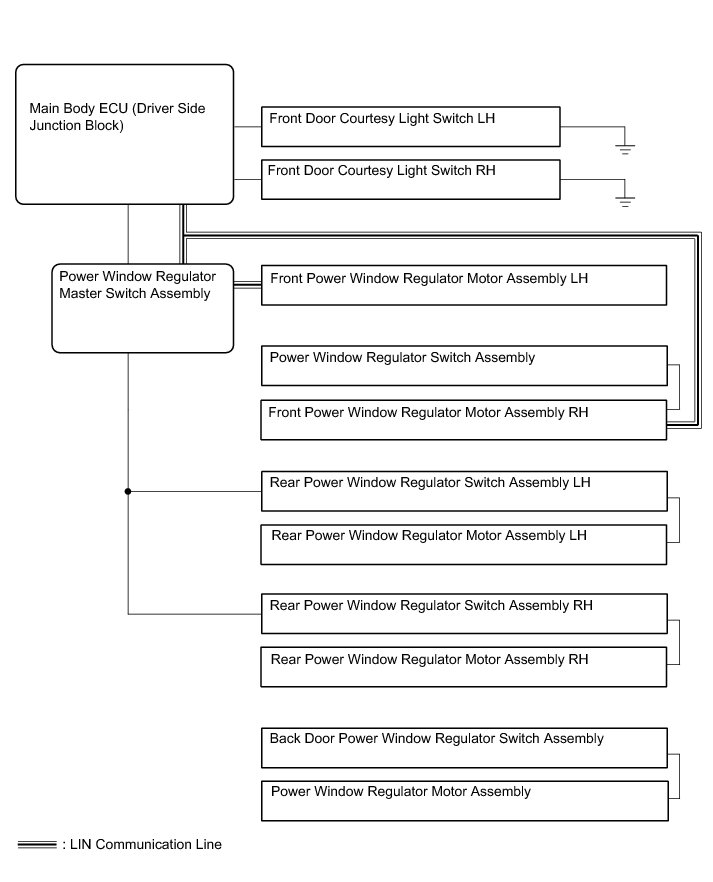

WINDSHIELD / WINDOWGLASS: POWER WINDOW CONTROL SYSTEM (w/ Jam Protection Function): SYSTEM DIAGRAM





WINDSHIELD / WINDOWGLASS: POWER WINDOW CONTROL SYSTEM (w/ Jam Protection Function): SYSTEM DESCRIPTION

1. POWER WINDOW CONTROL SYSTEM DESCRIPTION

* The power window control system controls the power window UP/DOWN function using the power window regulator motor. The main controls of this system are the master switch, which is built into the driver side door, and the power window regulator switches, which are built into the front passenger side door and rear doors.

* Pressing the power window switch on any of the power window regulator switches or any of the power window switches on the master switch transmits an UP/DOWN signal to the corresponding power window regulator motor.

* An ECU is built into the power window regulator motor for the driver and front passenger side.

* The power window control system (for back window glass) controls the power window UP/DOWN function using the power window regulator motor.

* The main control of this system is the back door power window regulator switch assembly.

2. FUNCTION OF MAIN COMPONENT

The power window control system consists of the following components:





* *: for Driver and Front Passenger Side

3. SYSTEM FUNCTION

The power window control system has the following functions:





* *: for Driver and Front Passenger Side
