Power Window Master Switch

WINDSHIELD / WINDOWGLASS: POWER WINDOW MASTER SWITCH: ON-VEHICLE INSPECTION

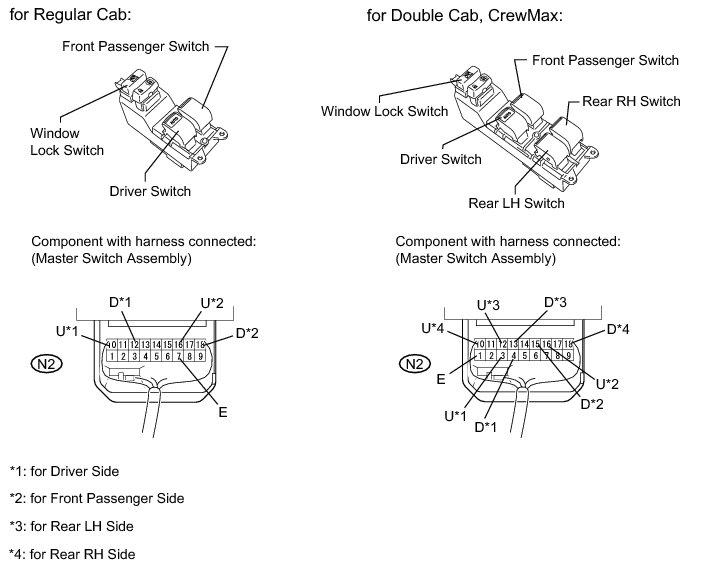

1. CHECK POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY (w/o Jam Protection Function)





(a) for Regular Cab:

(1) Remove the master switch Removal.

(2) Reconnect the switch connector.

(3) Measure the voltage according to the value(s) in the table below.

Standard voltage:









(b) for Double Cab:

(1) Remove the power window regulator master switch Removal.

(2) Reconnect the switch connector.

(3) Measure the voltage according to the value(s) in the table below.

Standard voltage:

















(c) for CrewMax:

(1) Remove the power window regulator master switch Removal.

(2) Reconnect the switch connector.

(3) Measure the voltage according to the value(s) in the table below.

Standard voltage:

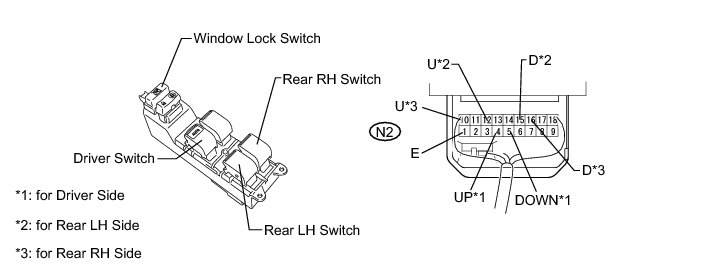

2. CHECK POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY (w/ Jam Protection Function)





(a) Remove the power window regulator master switch Removal.

(b) Reconnect the switch connector.

(c) Measure the voltage according to the value(s) in the table below.

Standard voltage:
