Operation Check
WINDSHIELD / WINDOWGLASS: POWER WINDOW CONTROL SYSTEM (w/o Jam Protection Function): OPERATION CHECK
1. CHECK WINDOW LOCK SWITCH
(a) Check that the front passenger side power window and rear power windows*1, *2 cannot be operated when the window lock switch of the master switch is pressed.
OK:
Operation of front passenger side power window and rear power windows*1, *2 are disabled.
* *1: for Double Cab
* *2: for CrewMax
(b) Check that the front passenger side power window and the rear power windows*1, *2 can be operated when the window lock switch is pressed again.
OK:
Front passenger side power window and rear power windows*1, *2 can be operated.
* *1: for Double Cab
* *2: for CrewMax
2. CHECK MANUAL UP / DOWN FUNCTION

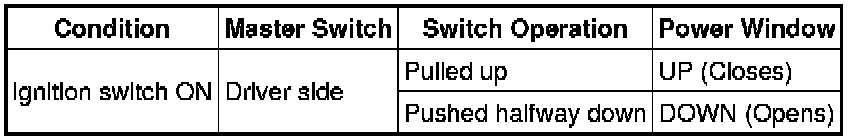

(a) Check that the driver side power window operates as follows:

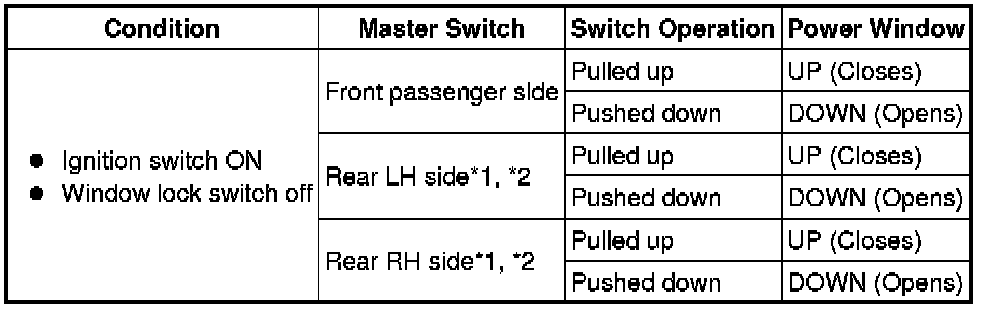

(b) Check that the front passenger side and rear power windows*1, *2 operate as follows:
* *1: for Double Cab
* *2: for CrewMax

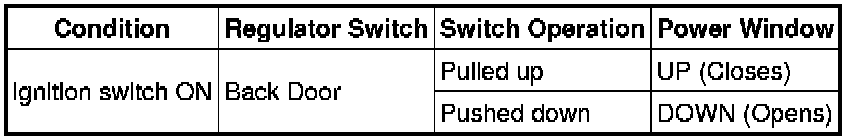

(c) Check that the power window (for back window glass)* operates as follows:
* *: for Double Cab, for Power Slide Type

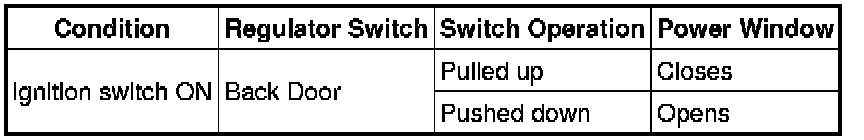

(d) Check that the power window (for back window glass)* operates as follows:
* *: for CrewMax
3. CHECK AUTO DOWN FUNCTION
(a) Check that the driver side power window operates as follows:
4. CHECK REMOTE MANUAL UP / DOWN FUNCTION

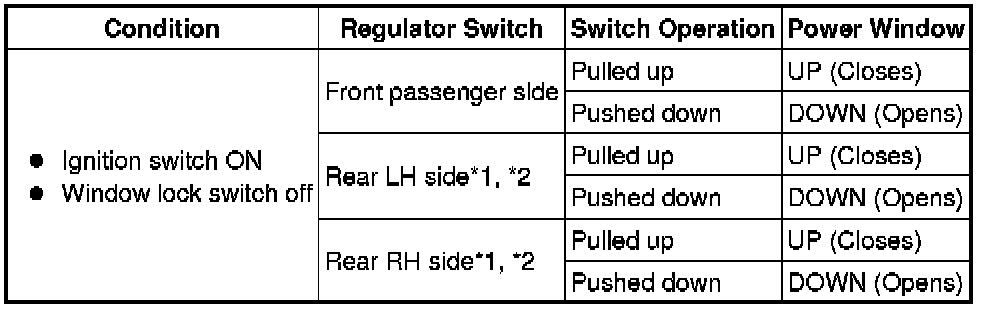

(a) Check that the front passenger side and rear power windows*1, *2 operate as follows:
* *1: for Double Cab
* *2: for CrewMax
5. CHECK POWER WINDOW OPERATION FUNCTION AFTER IGNITION SWITCH OFF
(a) Check that all the power windows can be operated with the master switch after the ignition switch is turned OFF.
(b) Check that the key-off operation function does not operate after a front side door is opened.
(c) Check that all the power windows cannot be operated after more than approximately 43 +/-1.5 seconds have elapsed since the ignition switch is turned OFF.
6. CHECK MASTER SWITCH LED ILLUMINATION
(a) Check the LED illumination.
(1) Check that the LED located on the master switch illuminates when the ignition switch is turned ON.
