Intake Manifold

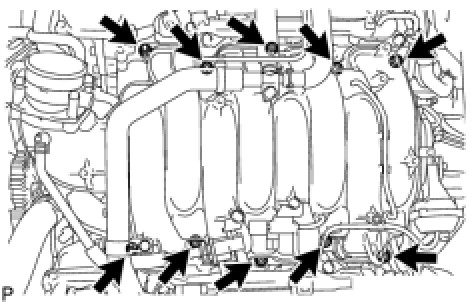

INTAKE MANIFOLDInstall and uniformly tighten the 8 bolts and 2 nuts in several steps.
Torque
21 Nm (214 kgf-cm, 15 ft-lbf)

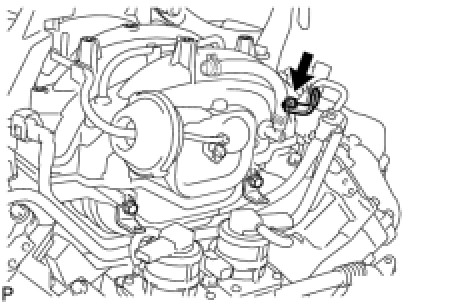

Install the wire bracket to the
intake manifold with the bolt.
Torque
8.0 Nm (82 kgf-cm, 71 in-lbf)

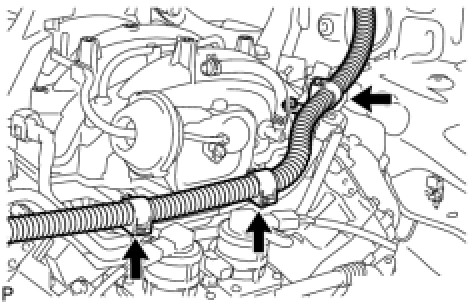

Connect the 3 wire clamps to the 3 wire brackets.

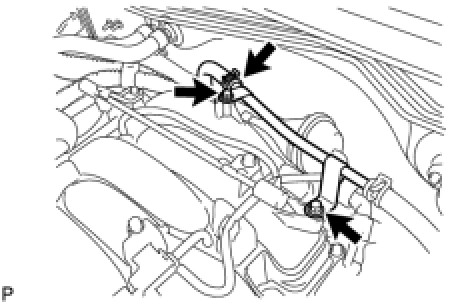

Connect the No. 1 tube and install it to the
intake manifold with the 2 bolts.
Torque
8.2 Nm (83 kgf-cm, 73 in-lbf)
