Flex Plate

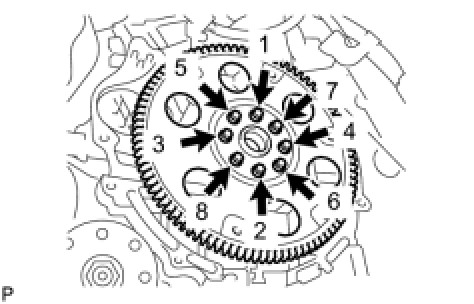

DRIVE PLATE AND RING GEAR SUB-ASSEMBLYIn several steps, uniformly install and tighten the 8 bolts in the sequence shown in the illustration.
Torque 83 Nm (846 kgf-cm, 61 ft-lbf)
In several steps, uniformly install and tighten the 8 bolts in the sequence shown in the illustration.
Torque 83 Nm (846 kgf-cm, 61 ft-lbf)
