Portable Player Cannot be Connected Manually/Automatically

NAVIGATION / MULTI INFO DISPLAY: NAVIGATION SYSTEM: Portable Player cannot be Connected Manually/Automatically
- Portable Player cannot be Connected Manually/Automatically

INSPECTION PROCEDURE

HINT
Some versions of "Bluetooth" compatible audio players may not function, or the function using the navigation receiver assembly may be limited even if the portable audio player itself can play files Description and Operation.

PROCEDURE

1. CHECK CONNECTED DEVICE SETTINGS

(a) Enter the "Audio Settings" screen.





(b) Select "Select Portable Player".

(c) Check if the portable player is registered as a connected device.





NOTICE:
If a cellular phone is used as a portable player, it must be registered independently from the registration that is performed for the handsfree system.

HINT
Only 2 portable players can be registered.

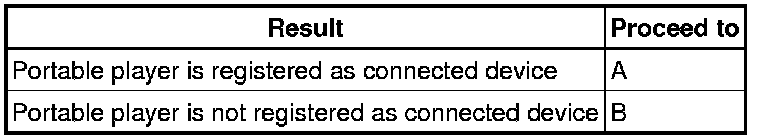

Result





B -- REGISTER PORTABLE PLAYER AS CONNECTED DEVICE
A -- Continue to next step.

2. CHECK SYMPTOMS

(a) Check the connection condition between the portable player and navigation receiver assembly.

HINT
The portable player cannot be connected under any of the following conditions:

* The portable player is connected to another device.
* The portable player is connected to the navigation receiver using the handsfree function.
* The navigation receiver has cleared the portable player registration.
* The portable player is off.

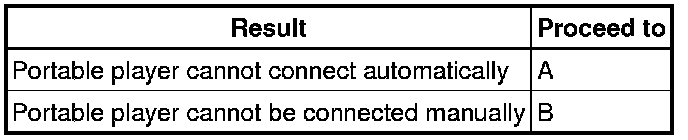

Result





B -- CHECK PORTABLE PLAYER STATUS
A -- Continue to next step.

3. CHECK AUTOMATIC CONNECTION SETTINGS

(a) Enter the "Audio Settings" screen.





(b) Select "Bluetooth Audio Settings".

(c) Check the automatic connection settings of the "Bluetooth" audio function.

(1) Check if "On" is displayed for "Auto Bluetooth Connect" on the "BT Audio Setting" screen.





OK:

"On" is displayed for "Auto Bluetooth Connect".

NG -- CHANGE "Auto Bluetooth Connect" TO "On"
OK -- Continue to next step.

4. CHECK PORTABLE PLAYER STATUS

(a) Check the status of the portable player.

(1) Check that the portable player is in standby mode.

(2) Check that the portable player is not connected to another device (headphones, etc.).

OK:

The portable player is in standby mode and not connected to another device (headphones, etc.).

NG -- SET PORTABLE PLAYER TO STANDBY MODE AND DISCONNECT OTHER DEVICES (HEADPHONES, etc.)
OK -- Continue to next step.

5. CHECK USING ANOTHER "BLUETOOTH" AUDIO COMPATIBLE VEHICLE OF SAME MODEL

(a) Check if the portable player can be connected manually/automatically on another "Bluetooth" audio compatible vehicle of the same model.

OK:

The portable player can be connected manually/automatically.

NG -- PORTABLE PLAYER IS NOT COMPATIBLE
OK -- Continue to next step.

6. REMOVE ADDITIONAL DEVICES WHICH USE RADIO WAVES

(a) Remove additional devices which use radio waves.

(b) Check if the portable player can be connected manually/automatically.

OK:

The portable player can be connected manually/automatically.

NG -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Symptom Related Diagnostic Procedures

OK -- END
