Trunk / Liftgate Lock: Testing and Inspection

DOOR LOCK: BACK DOOR LOCK: INSPECTION

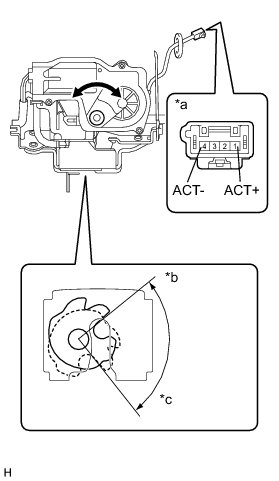

1. INSPECT BACK DOOR LOCK ASSEMBLY





(a) Set the back door lock to the full-latch position.

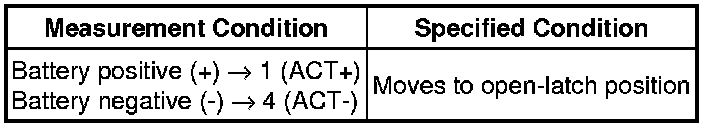

(b) Apply battery voltage to the door motor connector and check the operation of the door lock motor.

OK:





If the result is not as specified, replace the back door lock assembly.

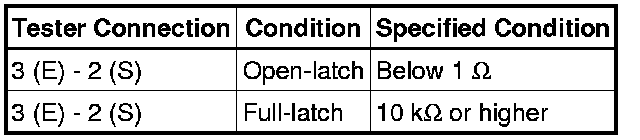

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





If the result is not as specified, replace the back door lock assembly.

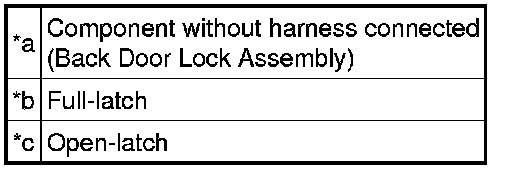

Text in Illustration
