2TR-FE ENGINE MECHANICAL: DRIVE BELT: INSTALLATION 1.
INSTALL FAN AND GENERATOR V BELT
(a)
Set the V belt onto every part.

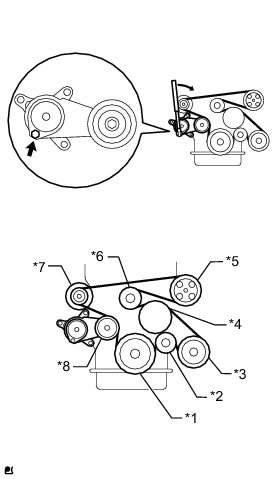

Text in Illustration (b)
Use the hexagonal part indicated by the arrow in the illustration to move the tensioner pulley downward and install the V belt to the tensioner pulley.
NOTICE: Make sure to check by hand that the belt has not slipped out of the grooves on the bottom of the pulley.
